Mode 6 Data

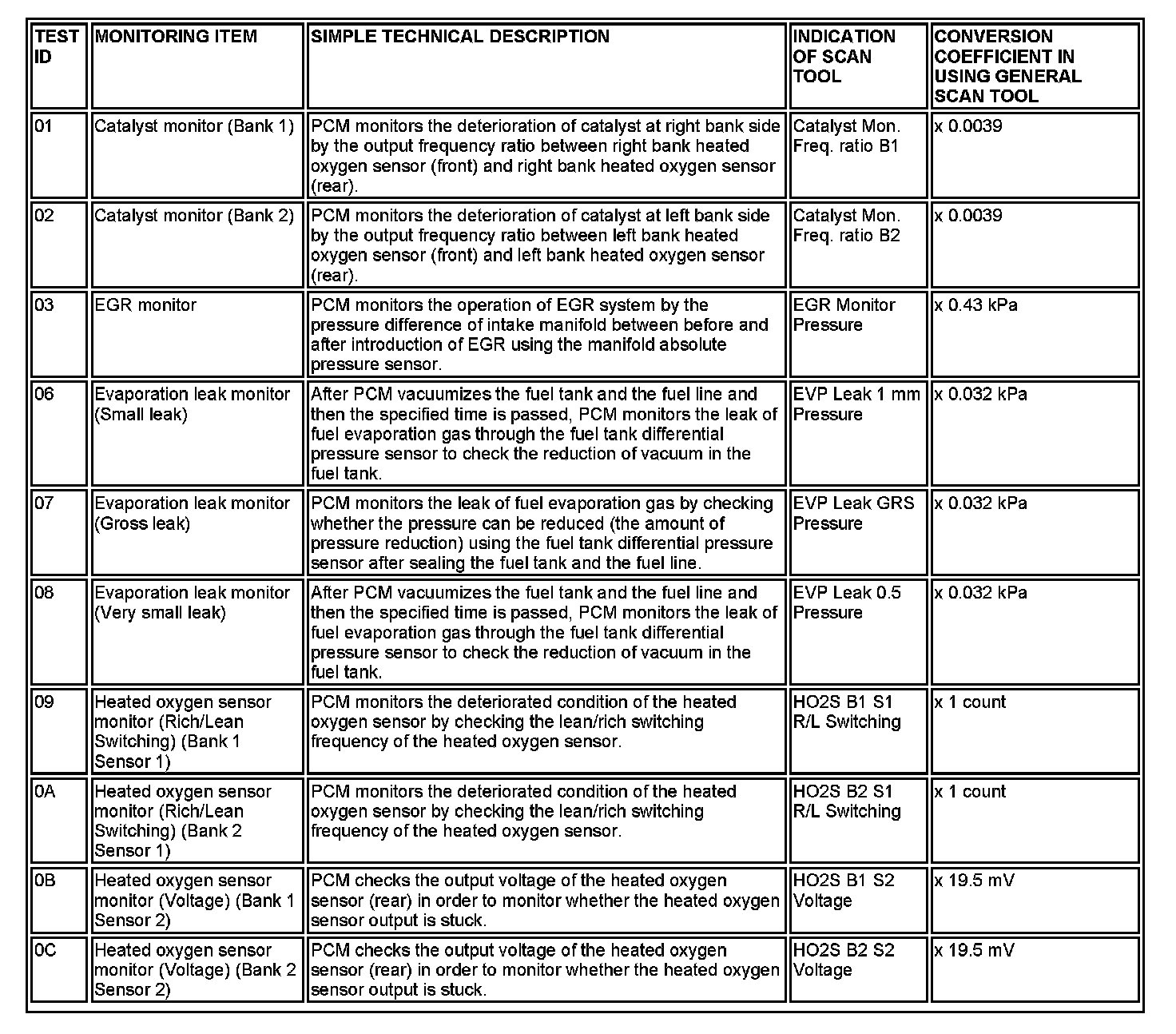

MODE 6 REFERENCE TABLE

The powertrain control module (PCM) monitors the condition of emission control system. By selecting MODE 6 using scan tool, Test Result and Limit Value (minimum) *1 or (maximum) *2 about the main items of emission control system which PCM monitors can be confirmed.
The value at the last monitoring is output by PCM as a test result.






NOTE: *1: Minimum value: The test fails if test value is less than this value. NOTE: *2: Maximum value: The test fails if test value is greater than this value.
