Transmission Position Sensor/Switch: Locations

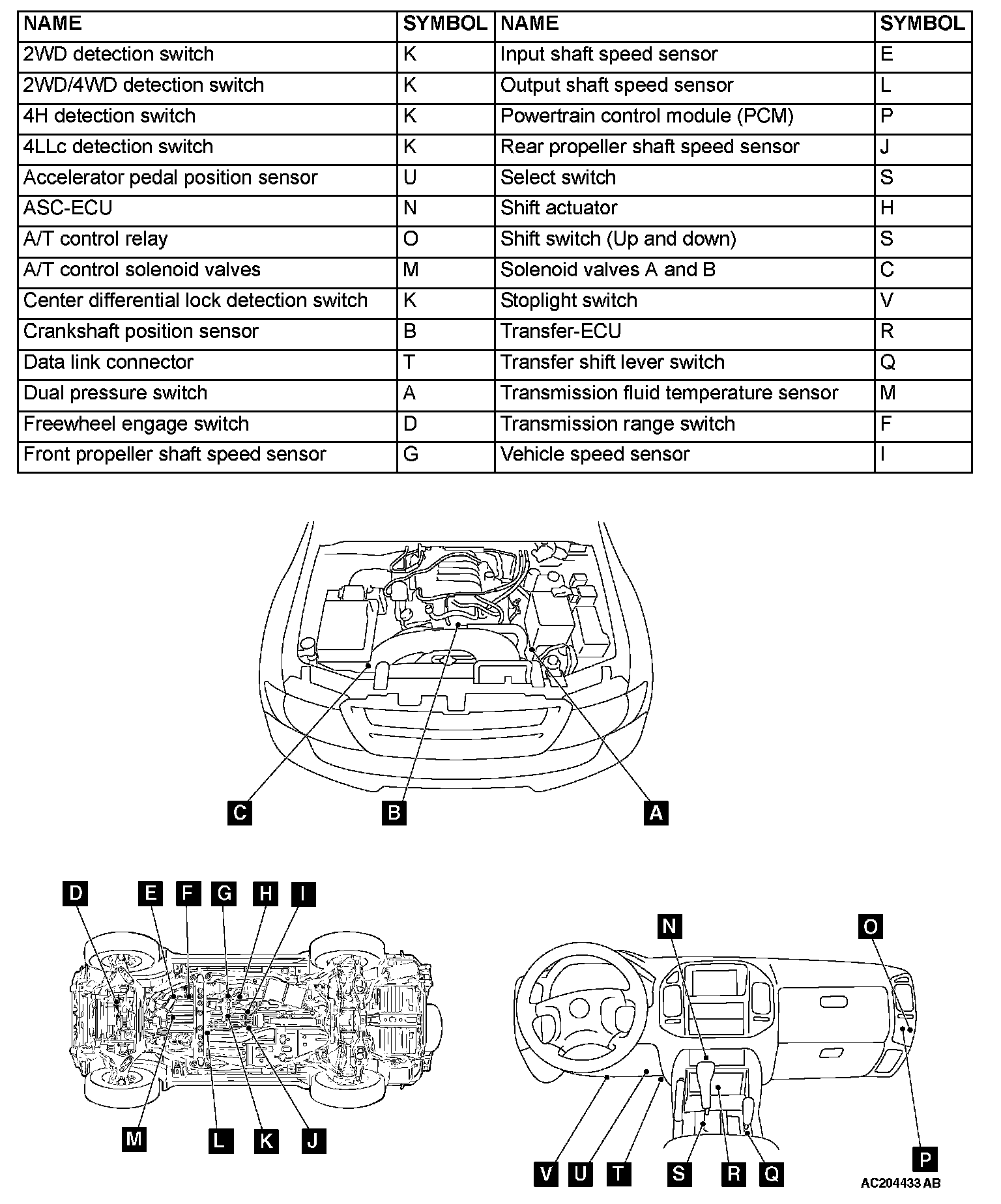

AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT:

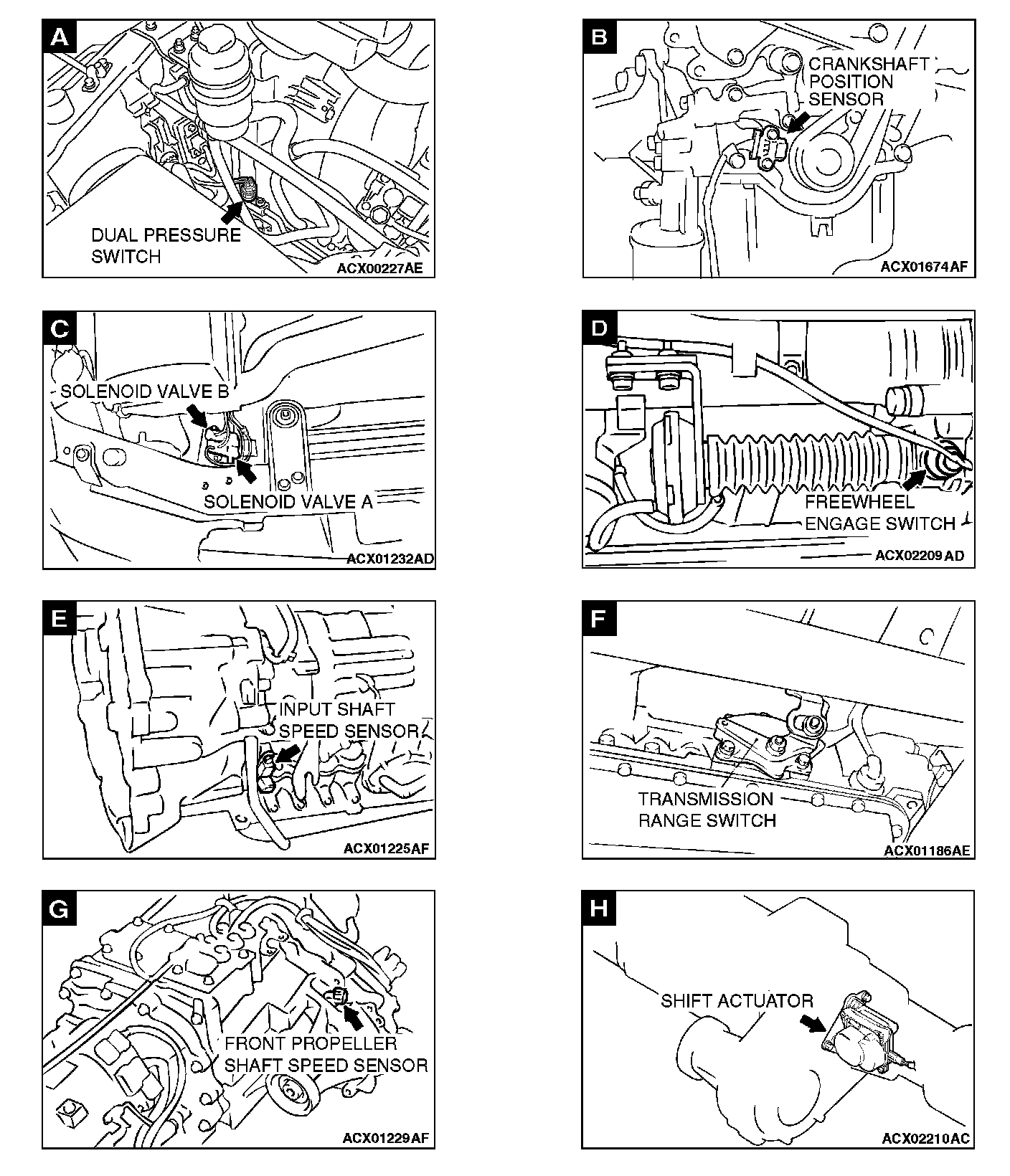

AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT / A-H:

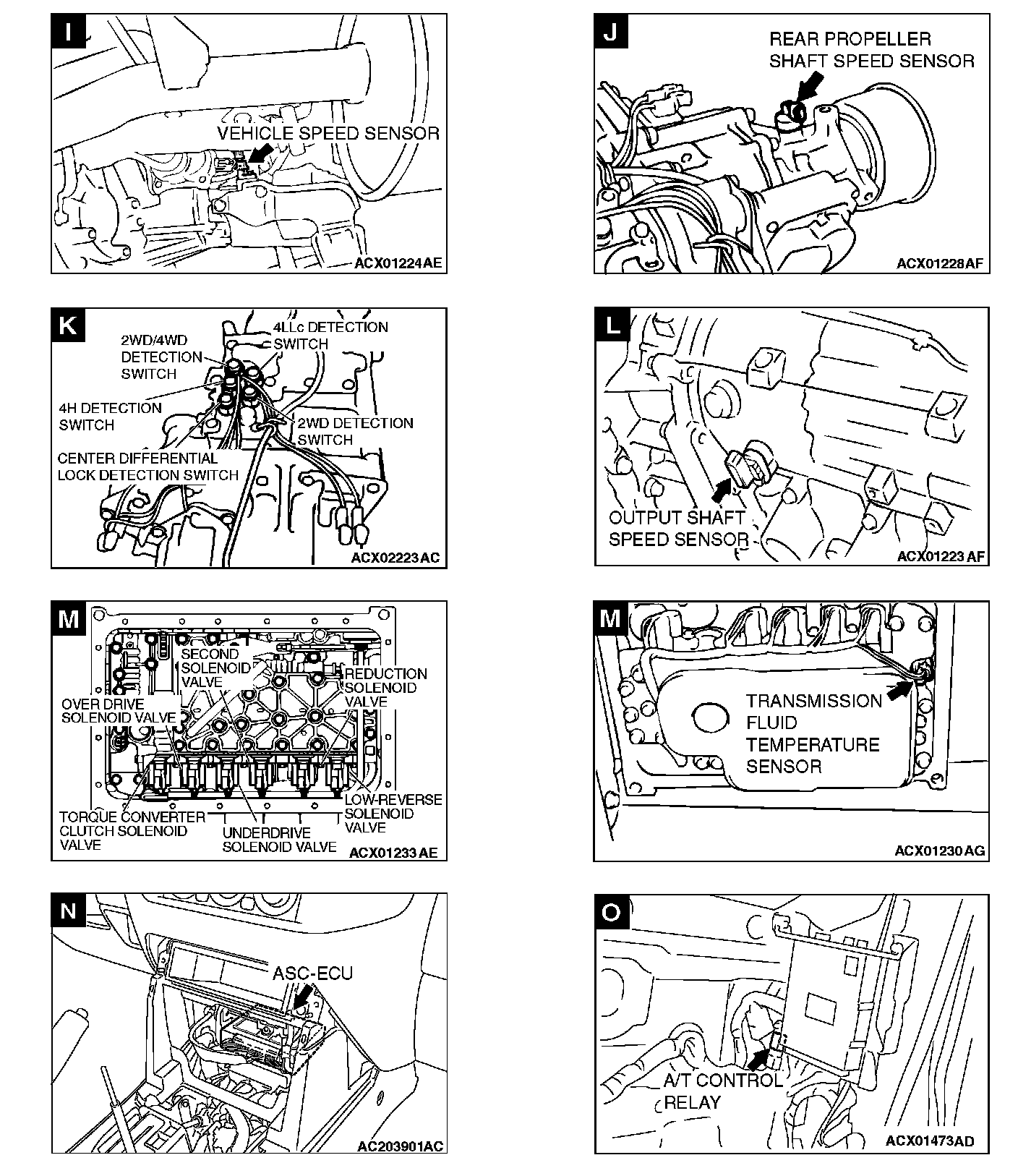

AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT / I-O:

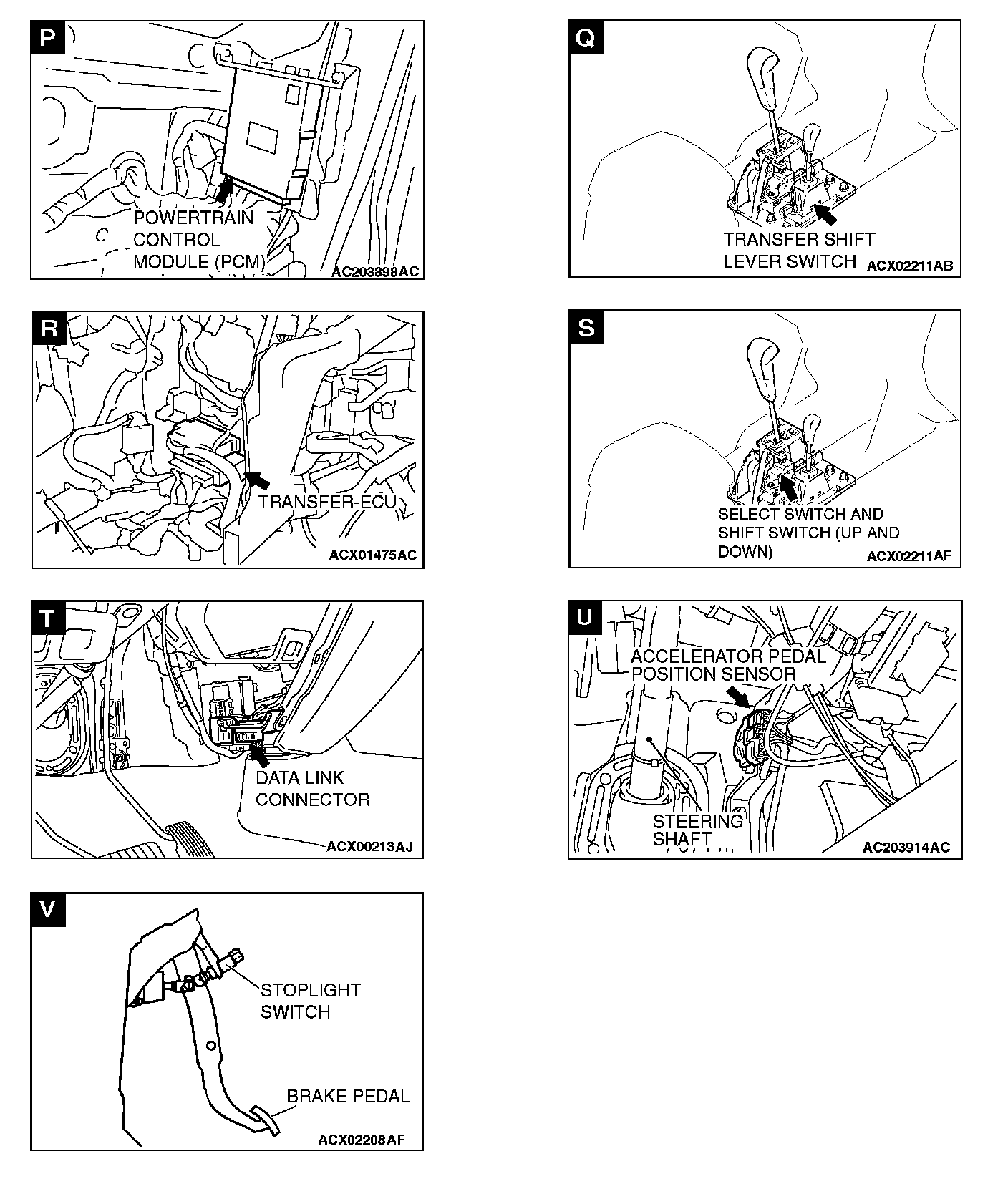

AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT / P-U:
