Disassembly and Assembly

TRANSMISSION CONTROL

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY STEPS 1-20 & Required Special Tool:





REMOVAL SERVICE POINT
<> SHIFT KNOB REMOVAL





Insert special tool MB990784 in the crack of knob cover A and shift knob, and then push down on knob cover A and remove screw.

INSPECTION

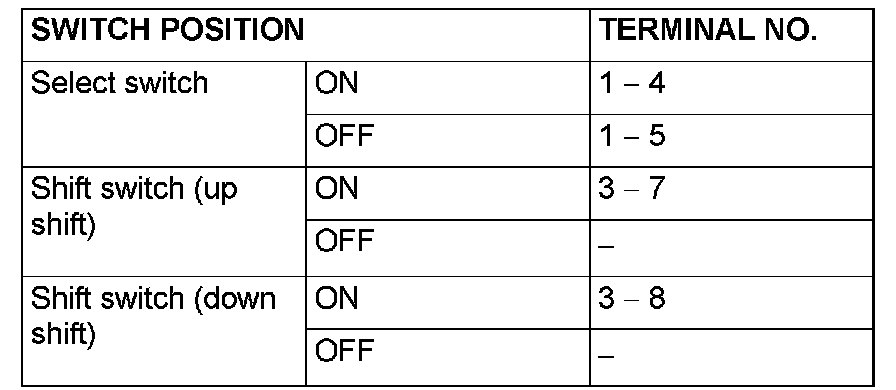

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK:
