TRANSMISSION CONTROLREMOVAL AND INSTALLATION
WARNING: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

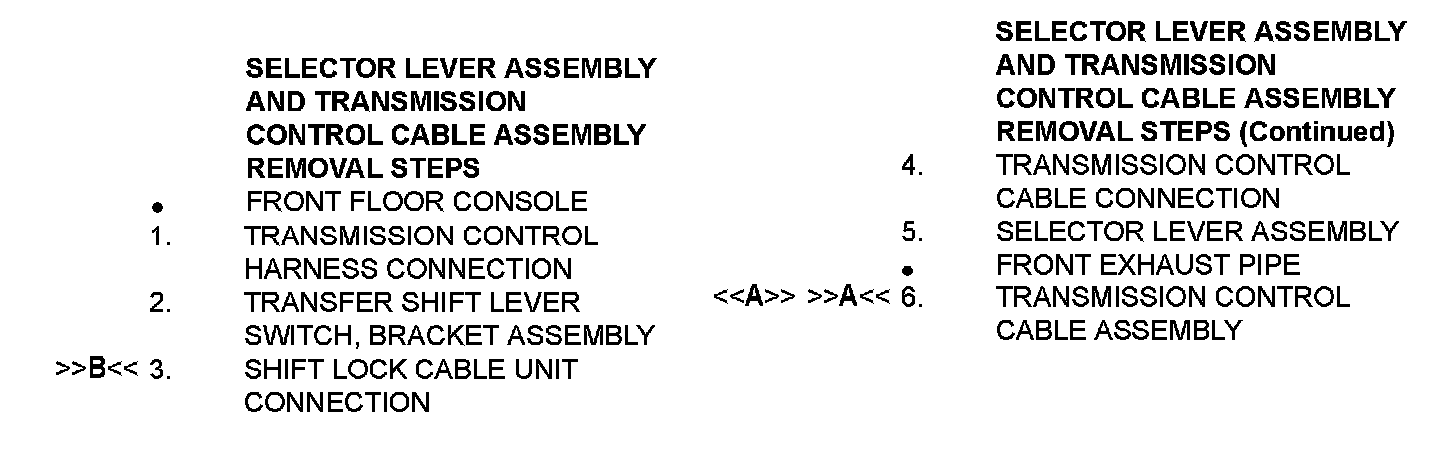

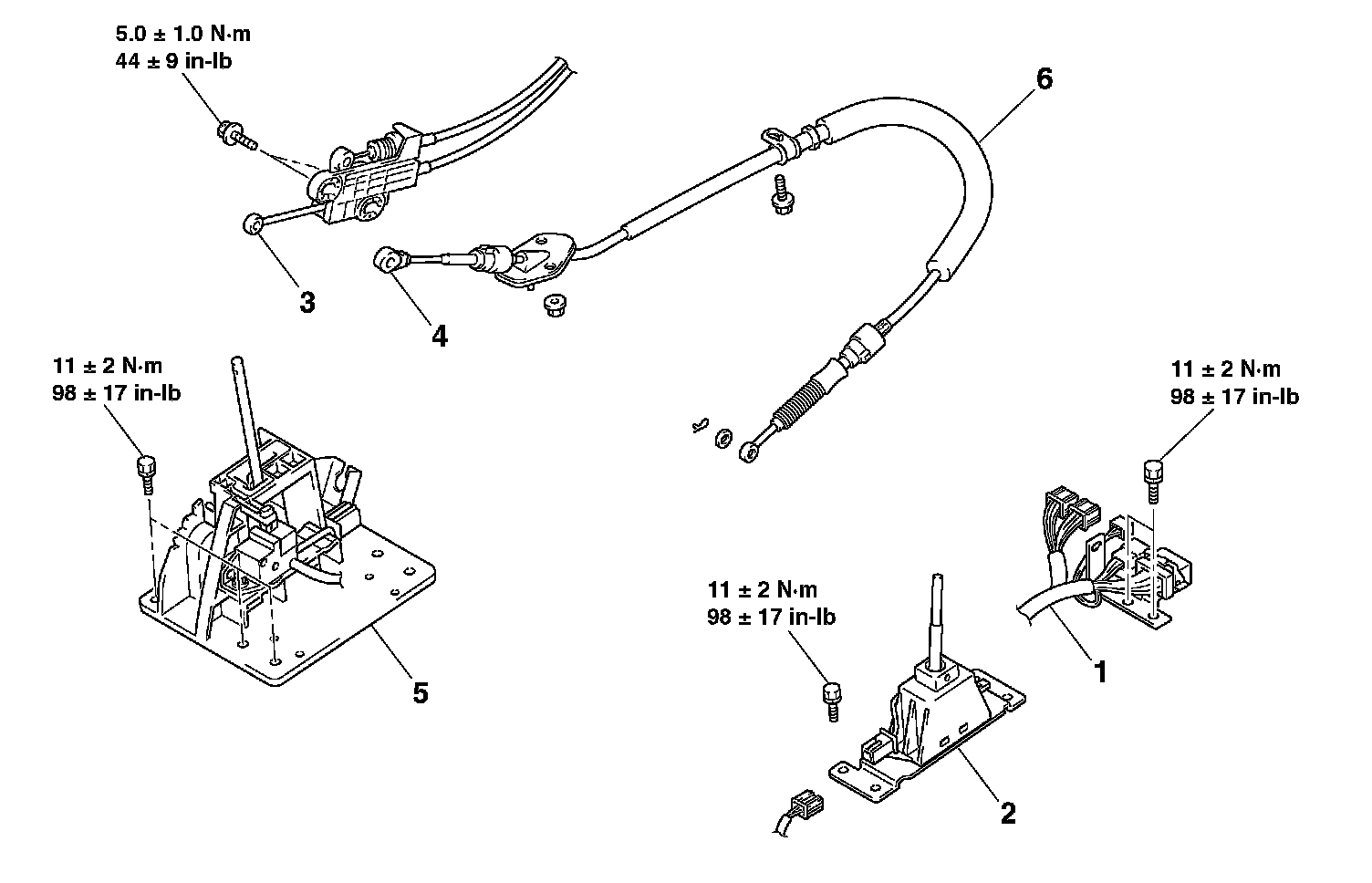

SELECTOR LEVER ASSEMBLY AND TRANSMISSION CONTROL CABLE ASSEMBLY REMOVAL STEPS 1-6:
SELECTOR LEVER ASSEMBLY AND TRANSMISSION CONTROL CABLE ASSEMBLY REMOVAL STEPS 1-6:

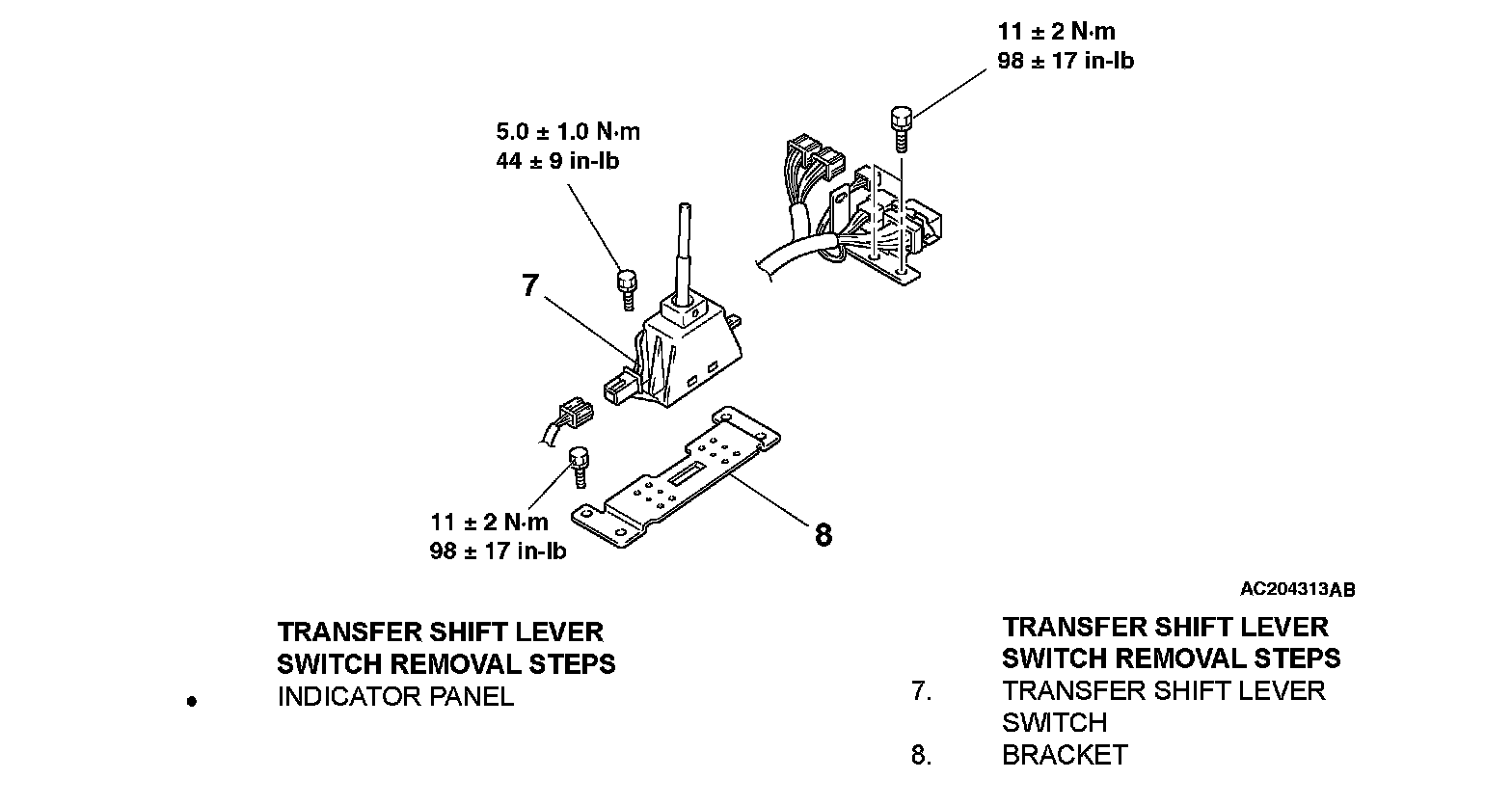

TRANSFER SHIFT LEVER SWITCH REMOVAL STEPS 7-8:
REMOVAL SERVICE POINT
<> TRANSMISSION CONTROL CABLE ASSEMBLY REMOVAL

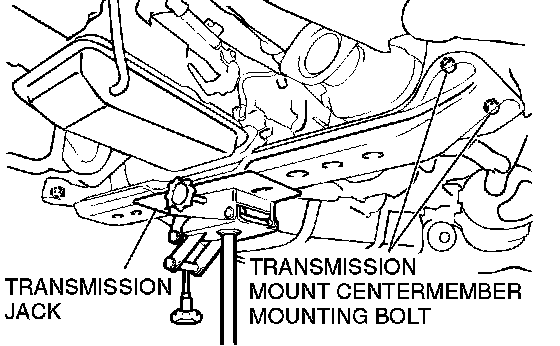

1. Support the transmission mount center member with a transmission jack, and then remove the transmission mount center member mounting bolts.
2. Lower the transmission so that there is enough room available to remove the transmission control cable assembly mounting nuts, and then remove the transmission control cable assembly mounting nuts.
INSTALLATION SERVICE POINTS
>>A<< TRANSMISSION CONTROL CABLE ASSEMBLY INSTALLATION
After installing the transmission control cable assembly, install the transmission mount center member mounting bolts and tighten them to the specified torque.
Tightening torque: 44 ± 10 Nm (33 ± 7 ft. lbs.)
>>B<< SHIFT LOCK CABLE UNIT INSTALLATION
1. Temporarily install the selector lever knob, and then move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.

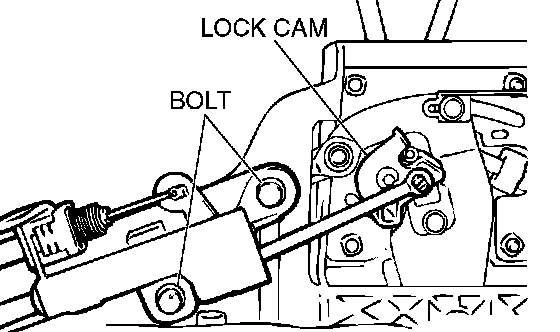

2. After installing the rod of the shift lock cable unit to the lock cam of the selector lever assembly, install the bolts of the shift lock cable unit.
Tightening torque: 5.0 ± 1.0 Nm (44 ± 9 inch lbs.)
3. Check the operation of the selector lever assembly.
INSPECTION

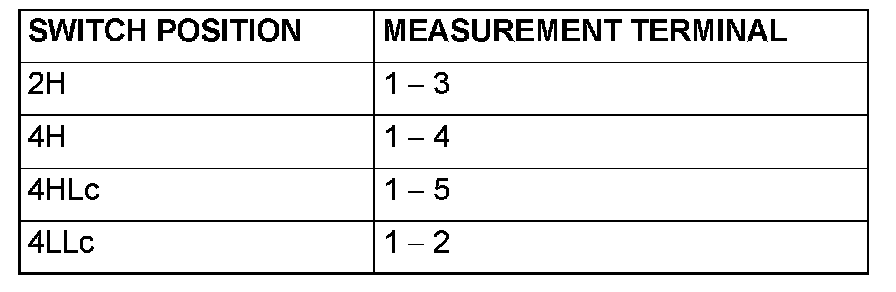

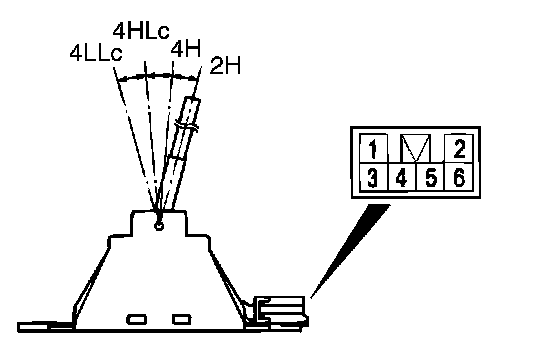

TRANSFER SHIFT LEVER SWITCH CONTINUITY CHECK:
