SERVICE DATA CHECK

1. Use the scan tool and the SWS monitor kit to check "DATA LIST" or "FUNCTION DIAG.

This "DATA LIST" or "FUNCTION DIAG." check is applicable for signals, which are transmitted and received through the SWS communication line. For input signals, which are not compatible with the SWS monitor kit, refer to the Pulse Check procedure (by using the scan tool or voltmeter).

2. The following input signals can be checked by using the scan tool and the SWS monitor kit.

NOTE: If a problem is found in the "Service Data" check, refer to Input Signal Chart. Input Signal Chart


The table shows the service data and their normal condition, which are displayed during the "DATA LIST."

Column ECU (column Switch):

- COLUMN ECU (Column Switch)

ETACS ECU:

- ETACS ECU

Front ECU:

- FRONT ECU

Sunroof ECU (Sunroof Motor Assembly):

- SUNROOF ECU (sunroof motor assembly)

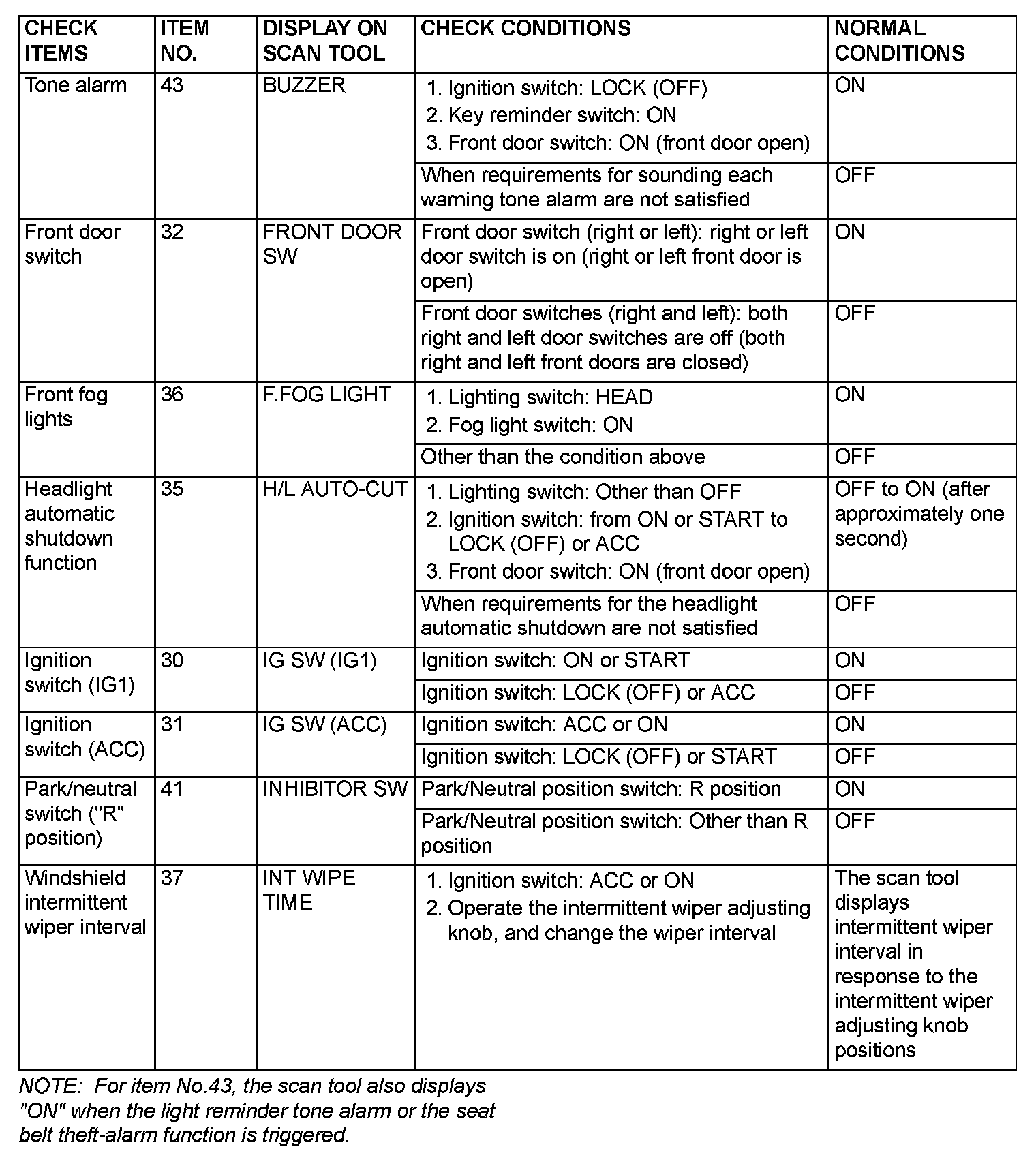

The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAGNOSIS." The row "Normal conditions" shows values, which are shown when each operation is made.

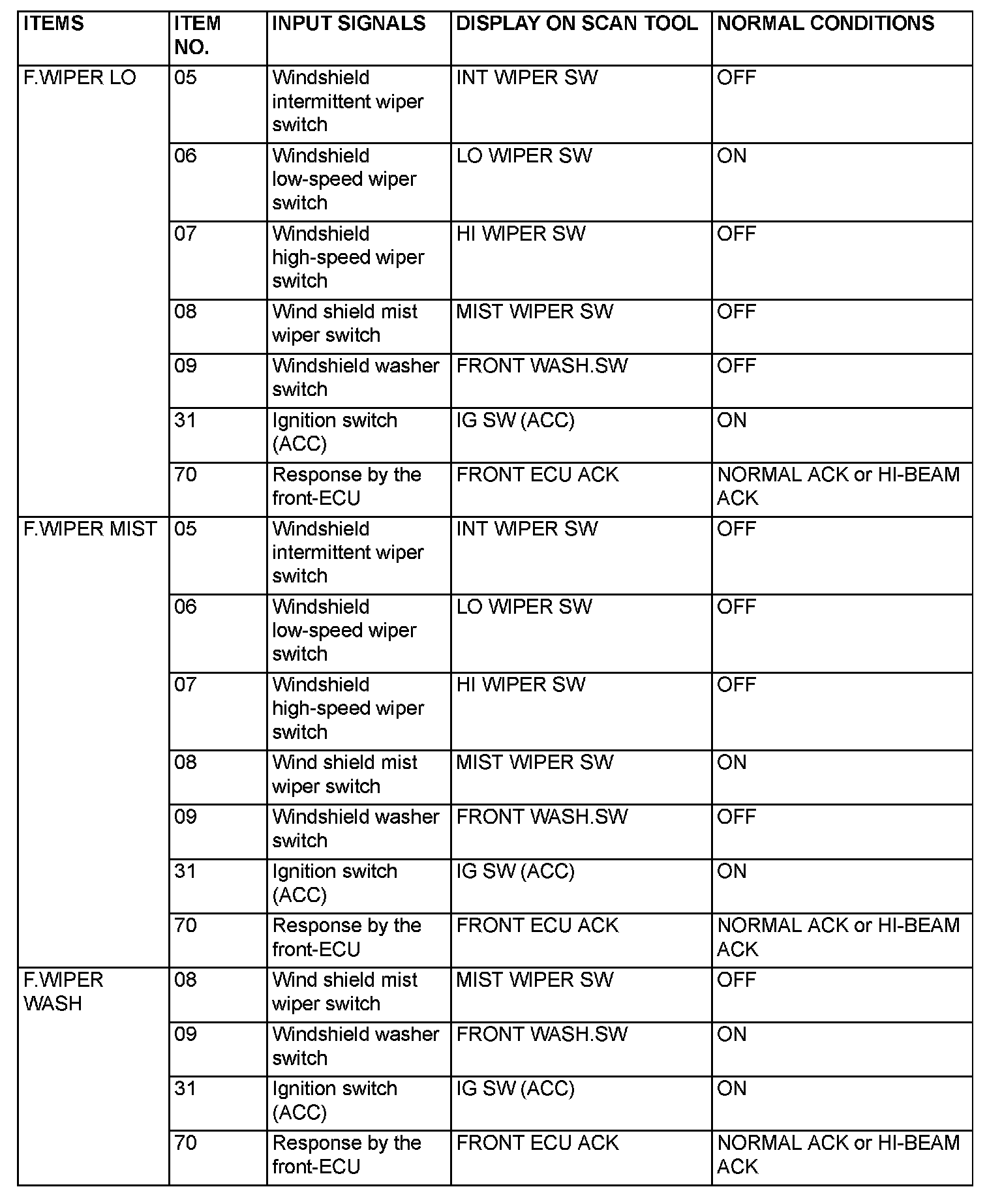

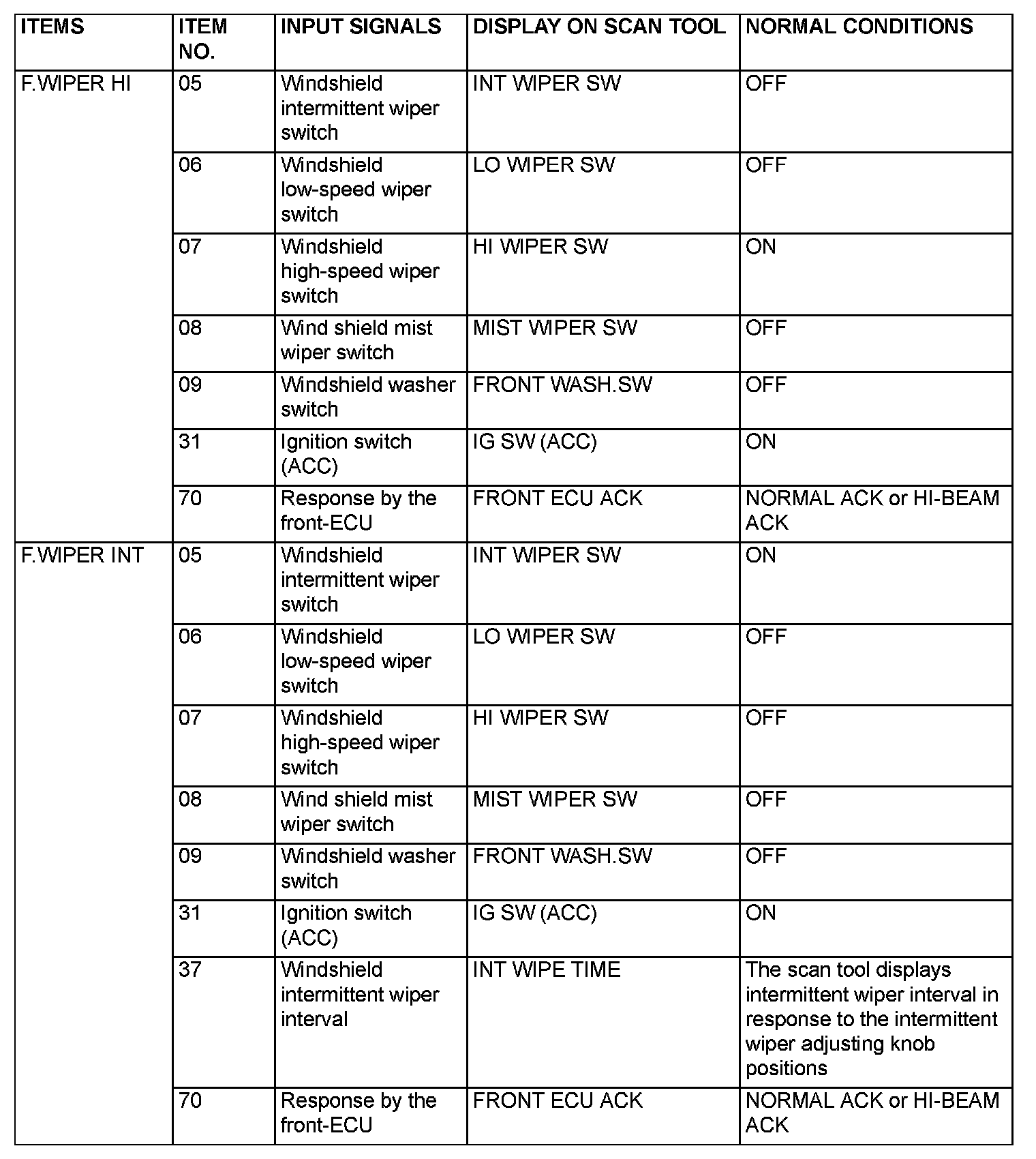

Wiper Part 1:

Wiper Part 2:

- WIPER

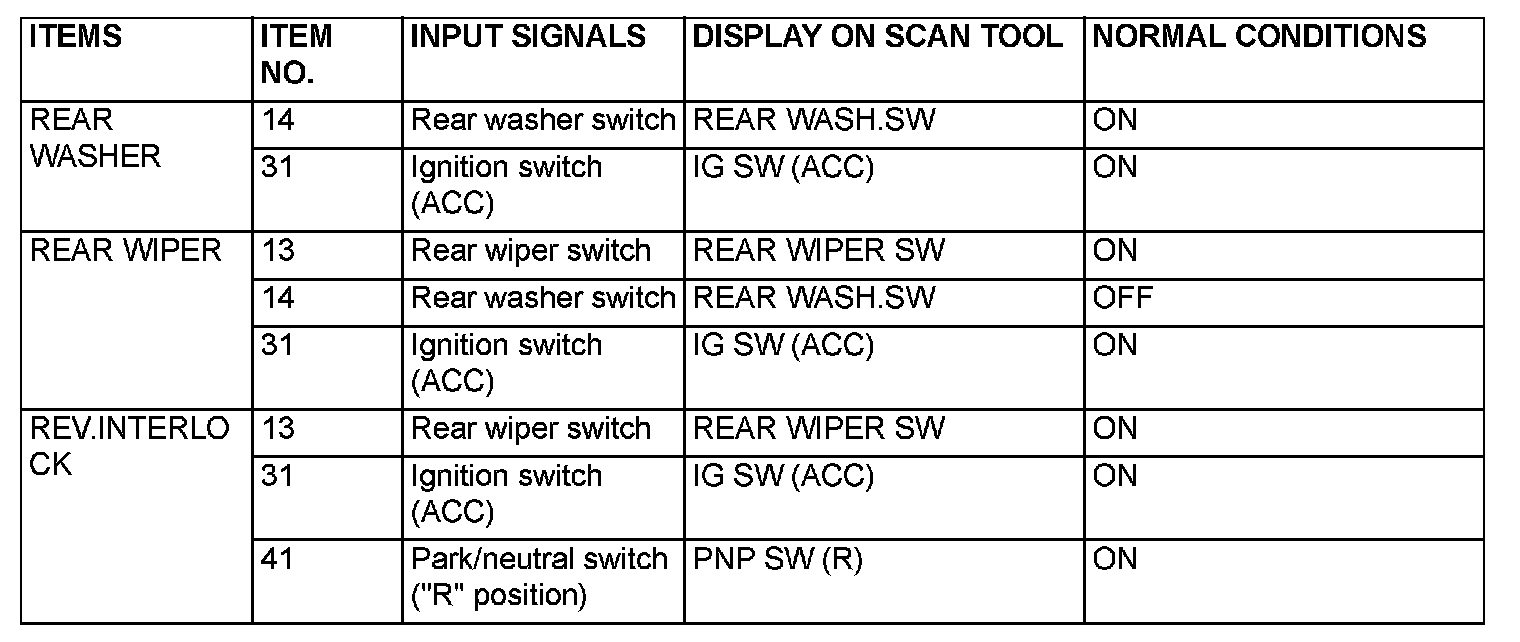

Rear Wiper:

- REAR WIPER

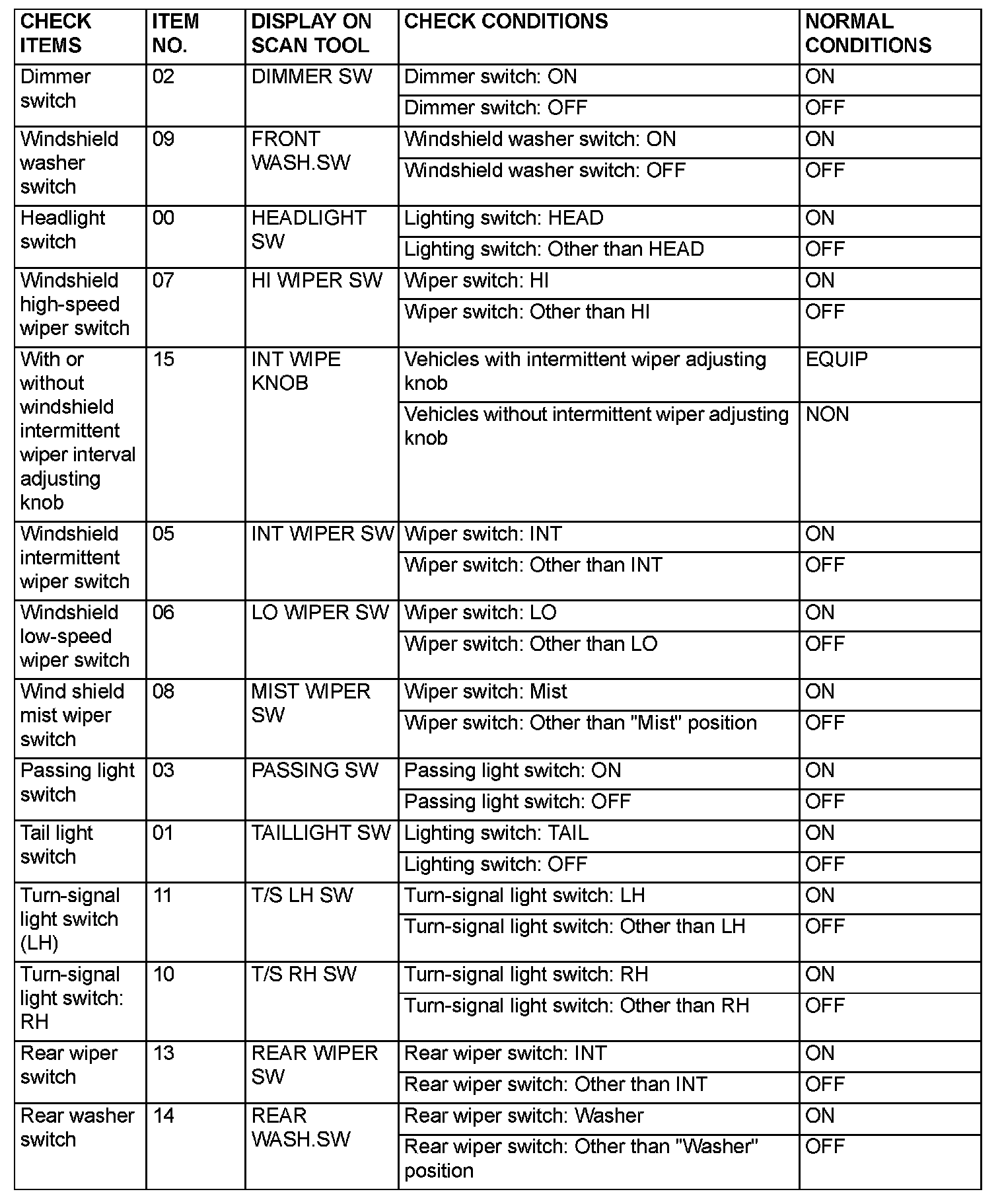

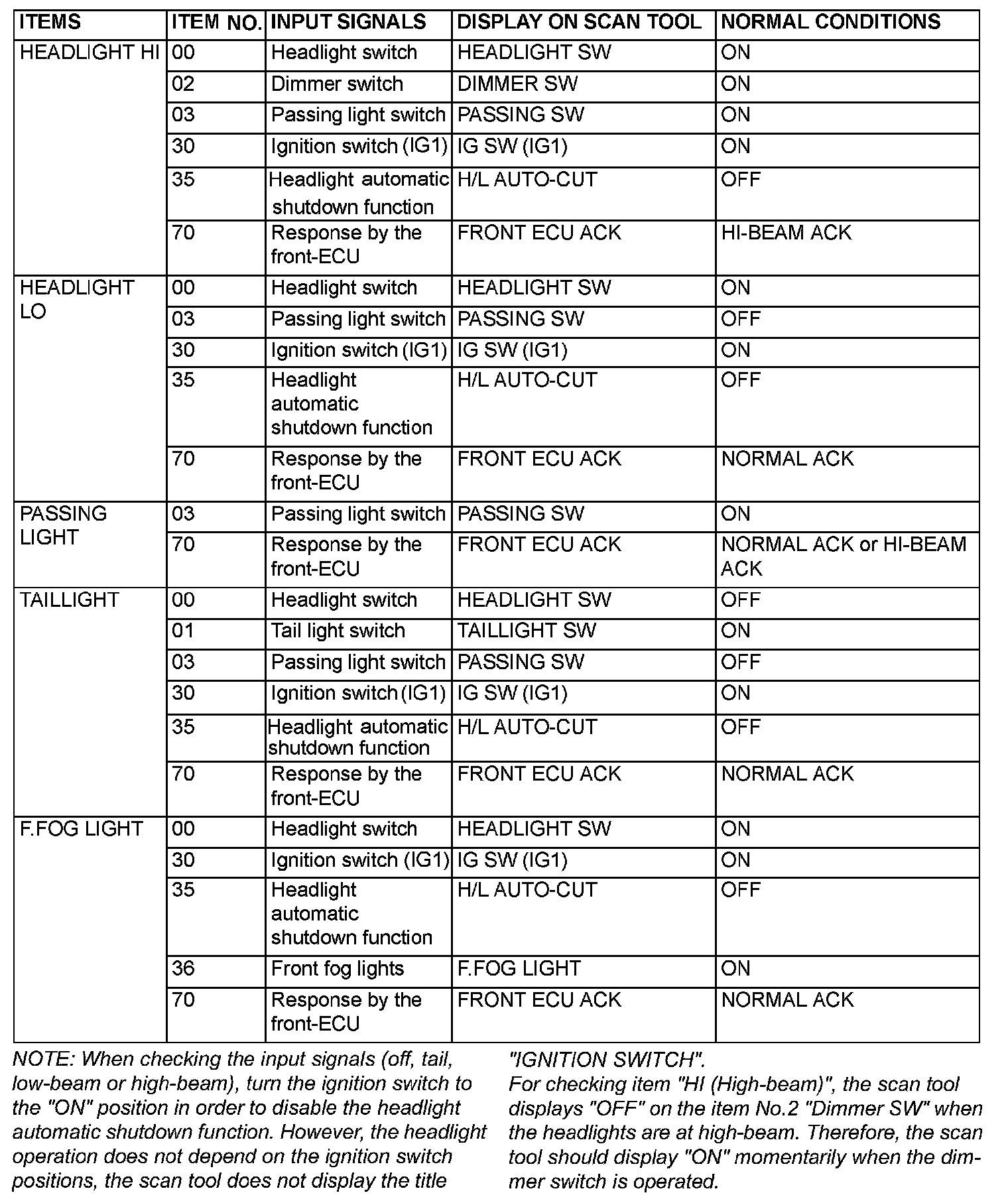

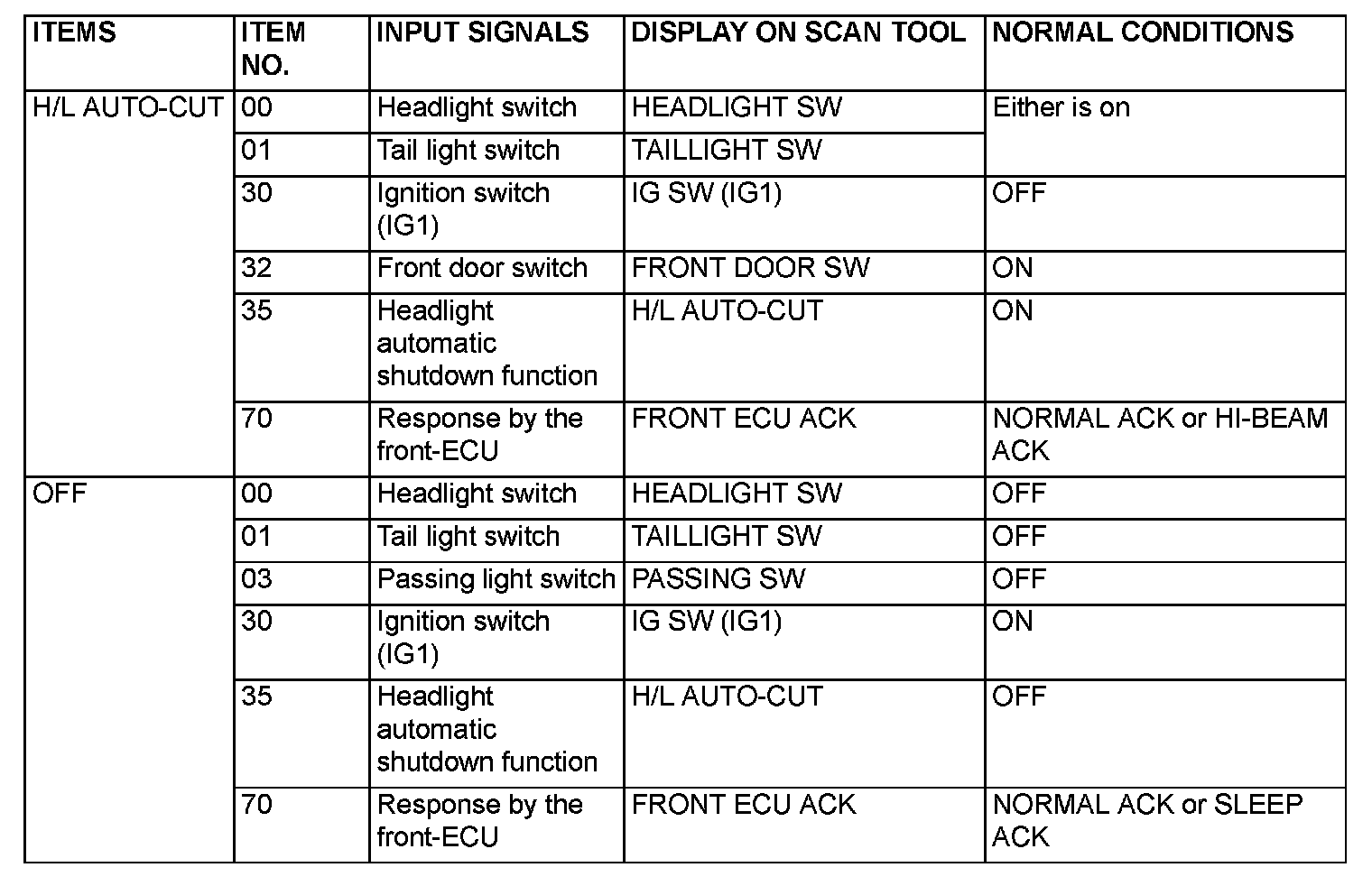

Lighting Part 1:

Lighting Part 2:

- LIGHTING

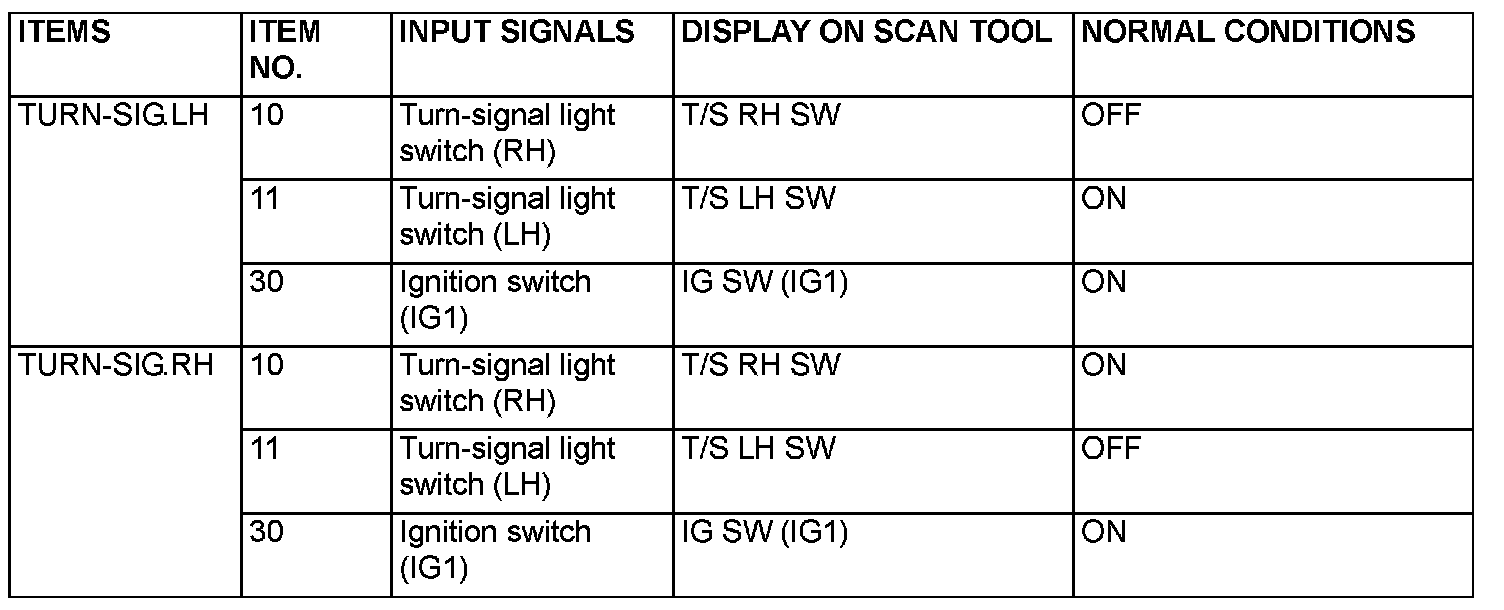

Turn Signal:

- TURN SIGNAL

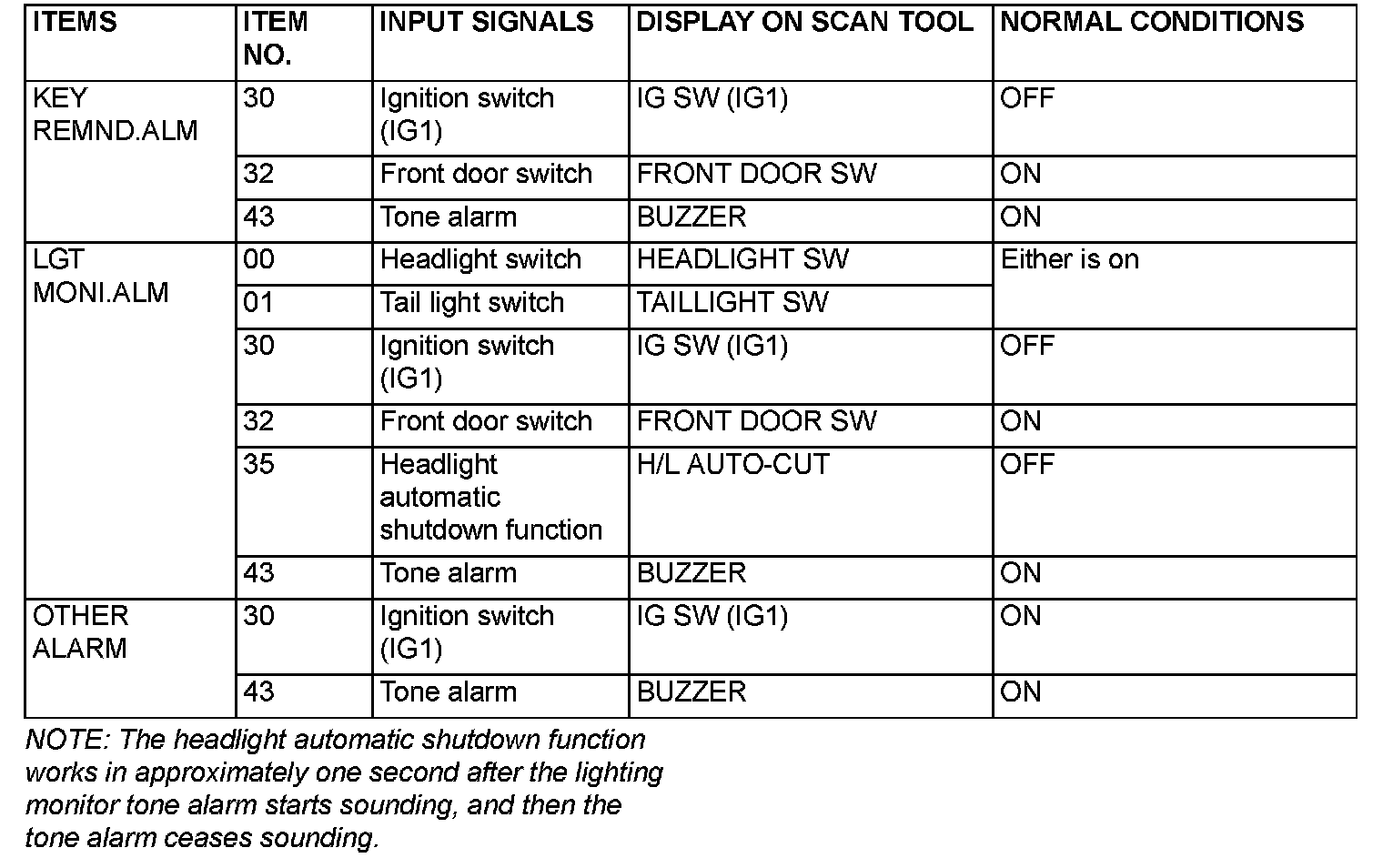

Buzzer:

- BUZZER

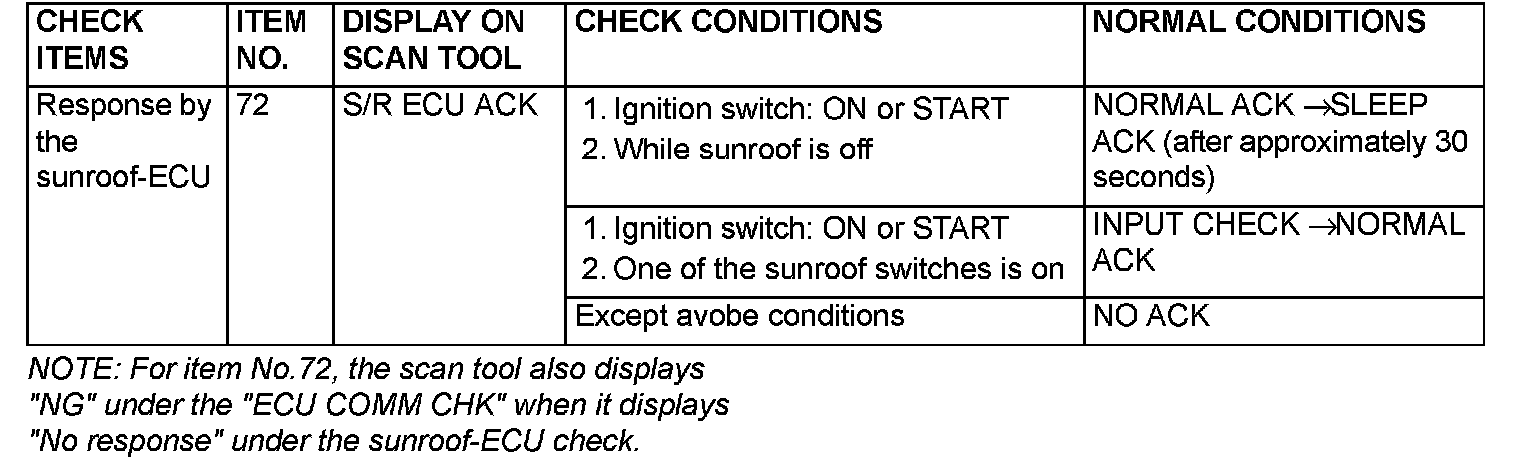

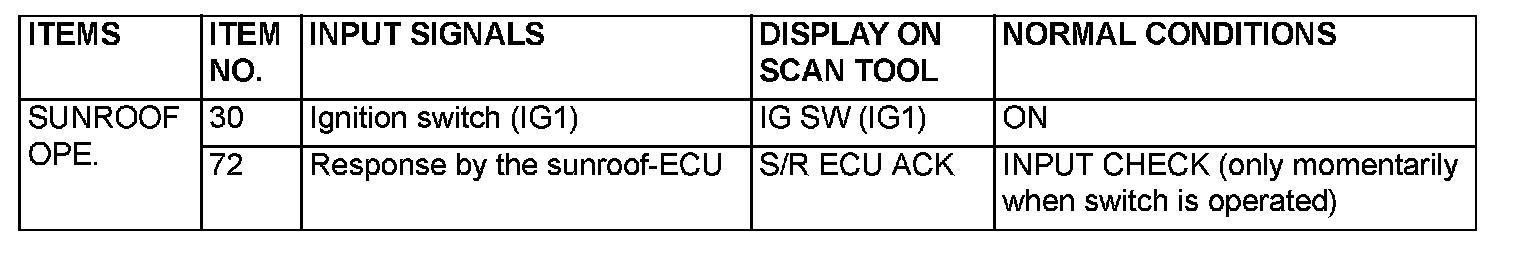

Sunroof:

- SUNROOF
