Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2006
>>
Outlander L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Differential
Differential

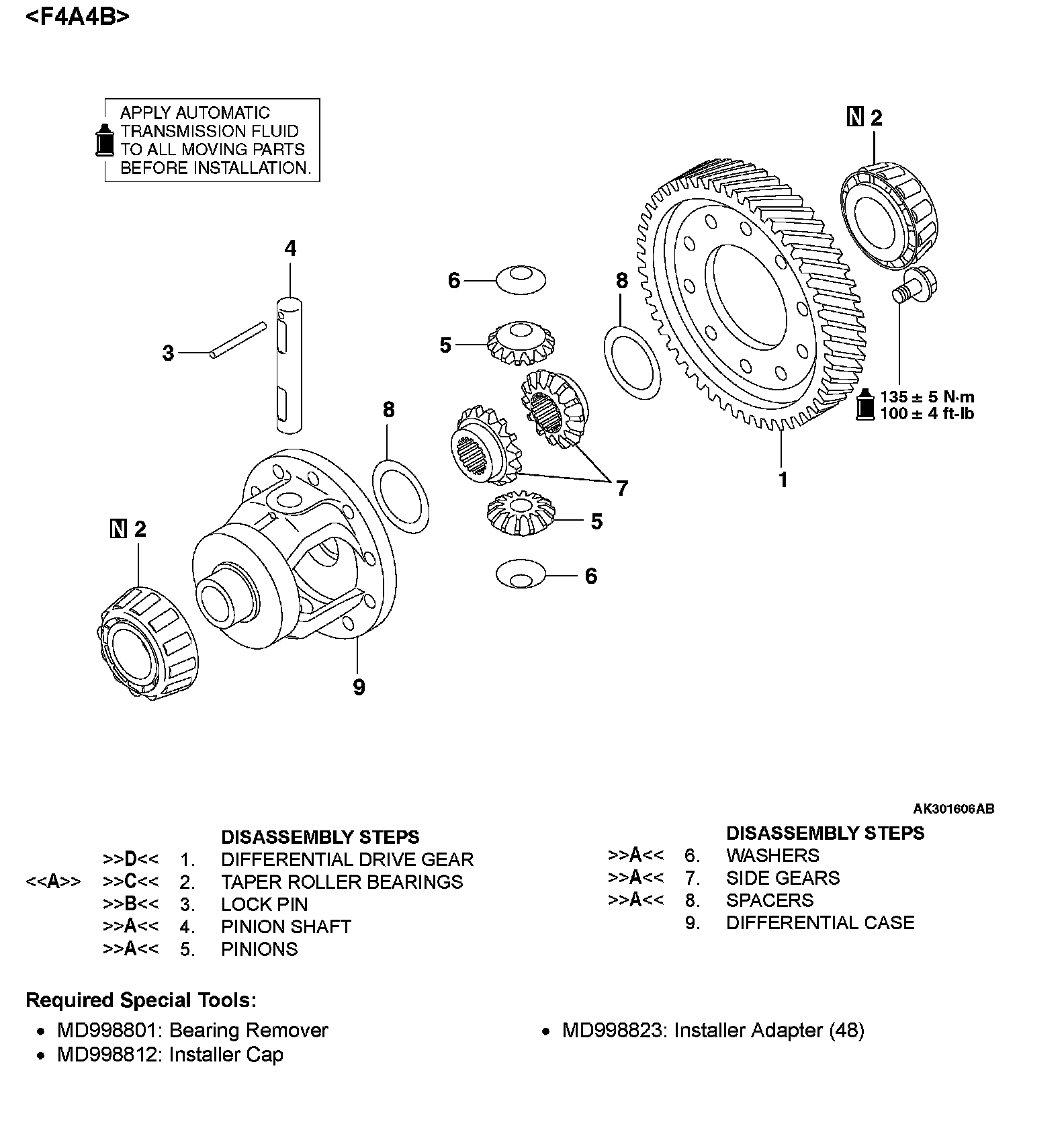

Disassembly Steps 1-9 <F4A4B> & Required Special Tools:
