Home >> Mitsubishi >> 2006 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Output Shaft

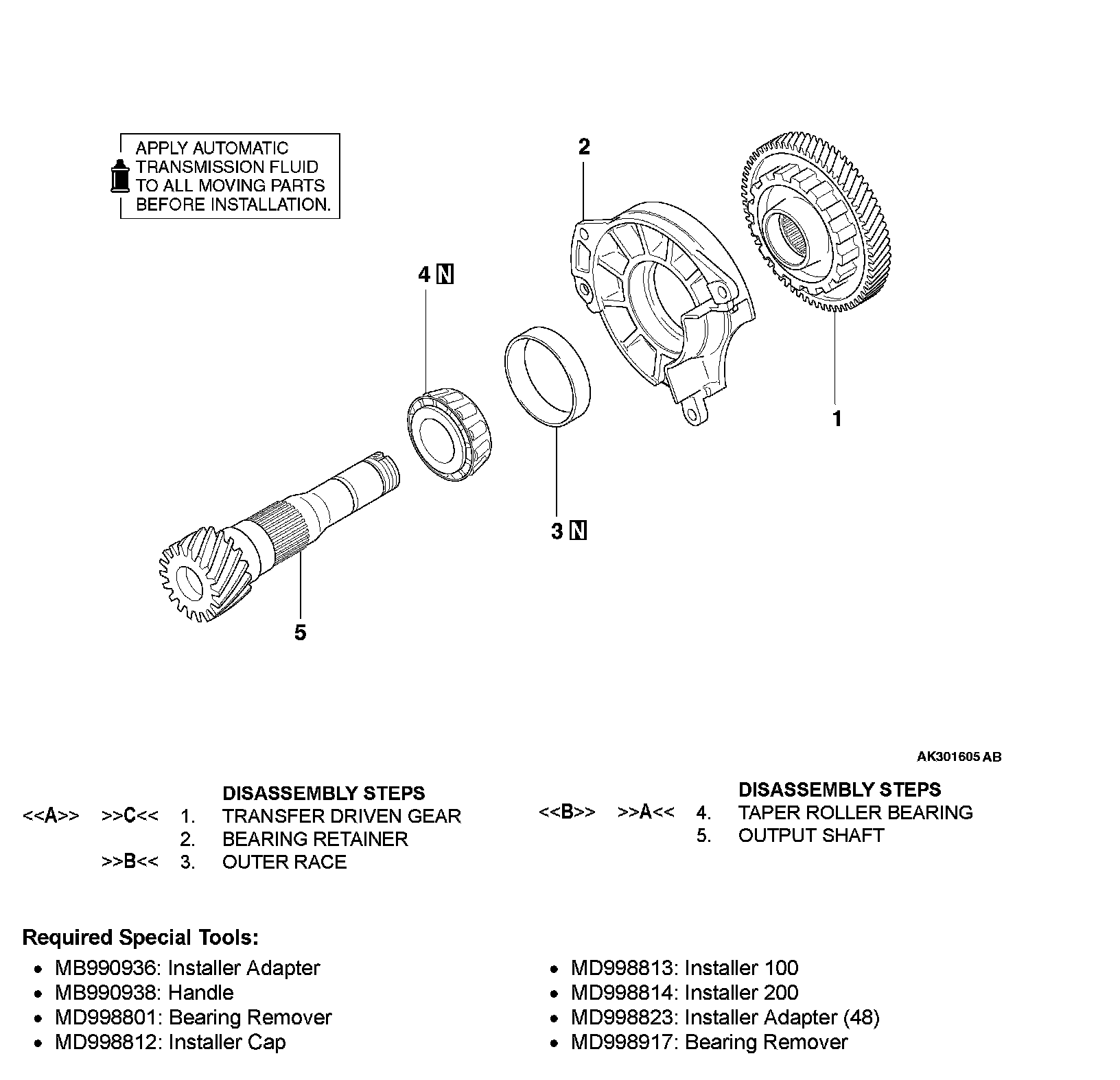

Output Shaft

Disassembly Steps 1-5 & Required Special Tools:
