Air Conditioning Switch: Service and Repair

HEATER CONTROL ASSEMBLY AND A/C SWITCH

REMOVAL AND INSTALLATION

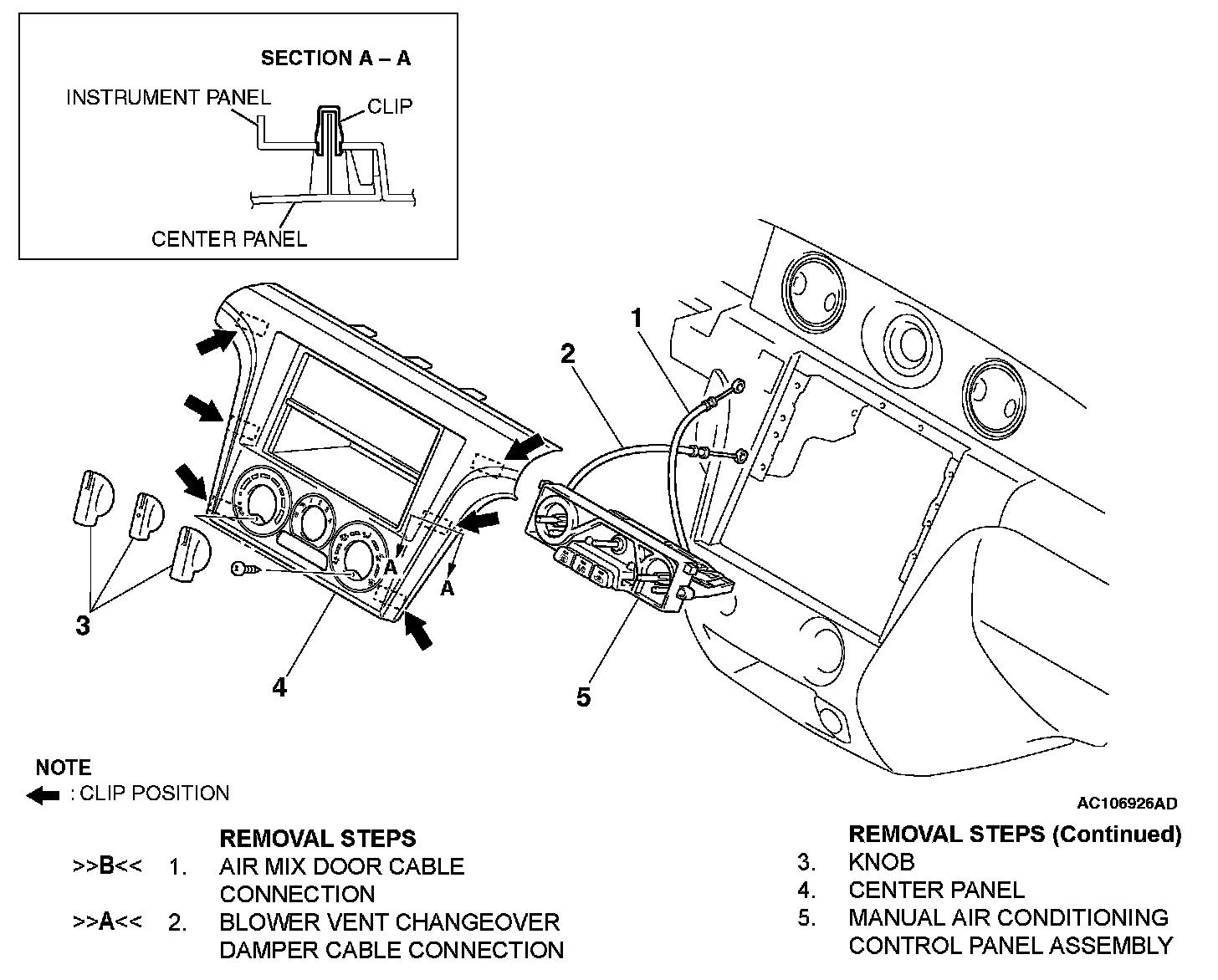

Removal Steps 1-5:

INSTALLATION SERVICE POINTS

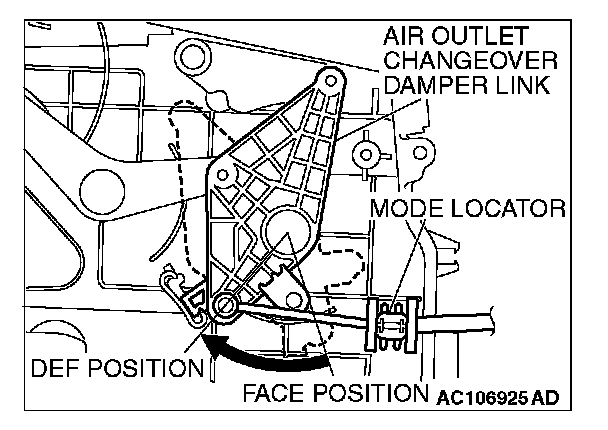

>>A<< BLOWER VENT CHANGE OVER DAMPER CABLE CONNECTION




1. Set the heater control assembly's blower vent change over knob to the DEF position.
2. Set the heater units blower vent change over damper relay to the DEF position (turn the damper relay to the left until it stops) and install the cable.
3. Set the mode locator to the heater unit case and secure with a clip.

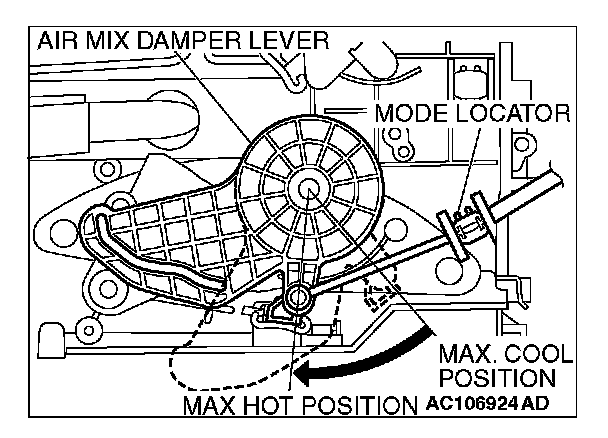

>>B<< AIR MIX DOOR CABLE CONNECTION




1. Turn the heater control assembly's temperature adjustment knob all the way to the HOT side.
2. Set the heater units air mix door lever to the MAX HOT position (turn the damper lever as the left illustration) and attach the cable.
3. Set the mode locator to the heater unit case and secure with a clip.
