Blower Motor Switch: Testing and Inspection
INSPECTION

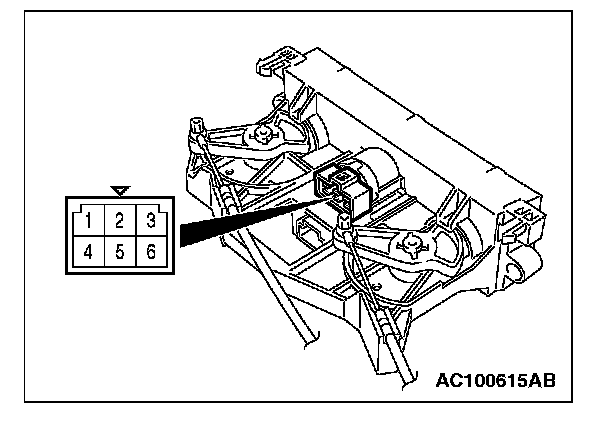

Blower Switch Continuity Check:

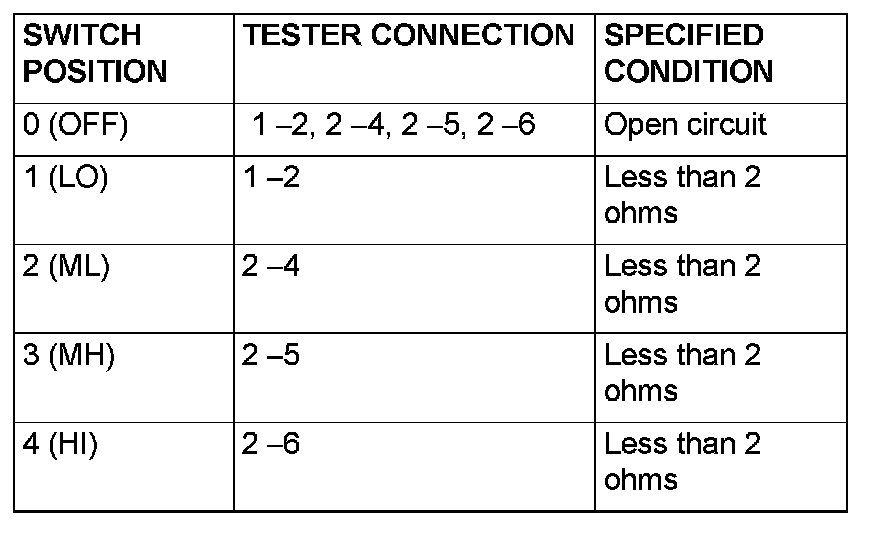

BLOWER SWITCH CONTINUITY CHECK
