Cabin Temperature Sensor / Switch: Testing and Inspection
INSPECTIONInterior Temperature Sensor Check

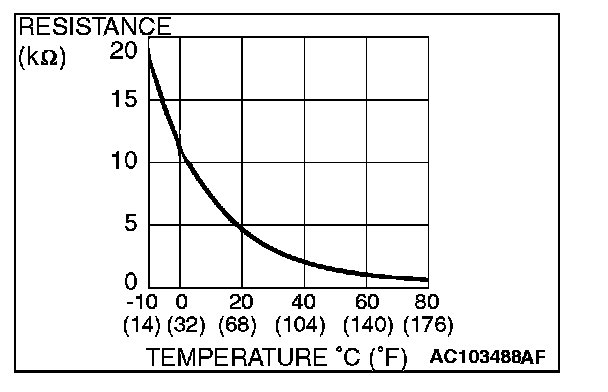

Check to see that the resistance shown in the graph is almost satisfied when measuring the resistance between the terminals under two or more different temperature conditions.
