Compressor Clutch Relay: Testing and Inspection
A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK

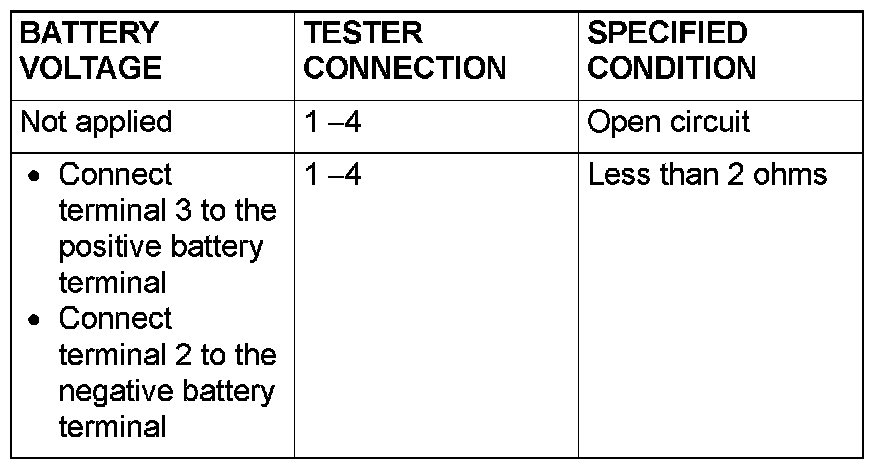

A/C Compressor Clutch Relay Continuity Check:
