Disassembly and Assembly

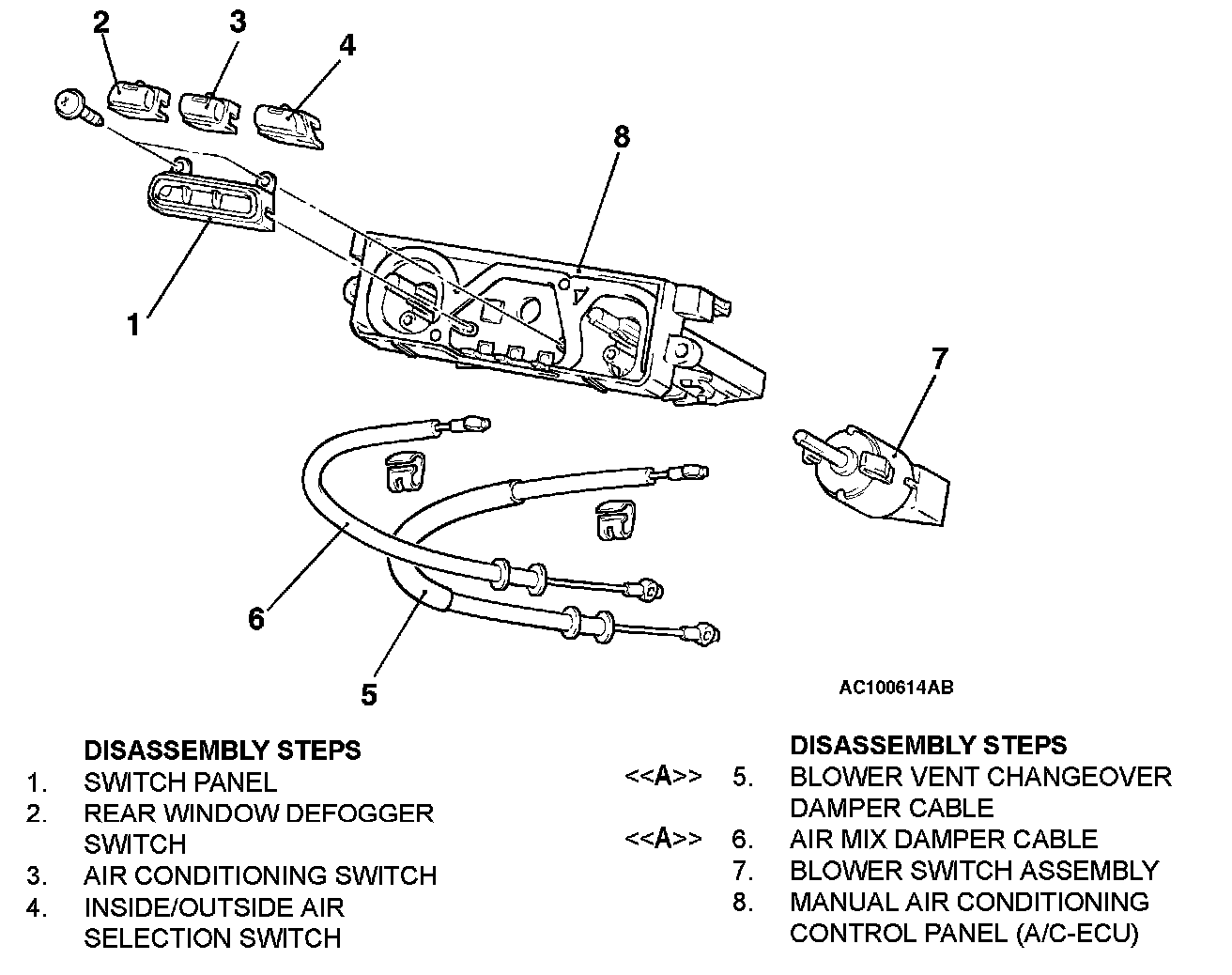

Disassembly Steps 1-8:




DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT




<> BLOW VENT CHANGE OVER DAMPER. CABLE/AIR MIX DAMPER CABLE REMOVAL

Insert a flat-tipped screwdriver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables.
