Multi-Function Thermal Sensor / Switch: Service and Repair

SENSORS

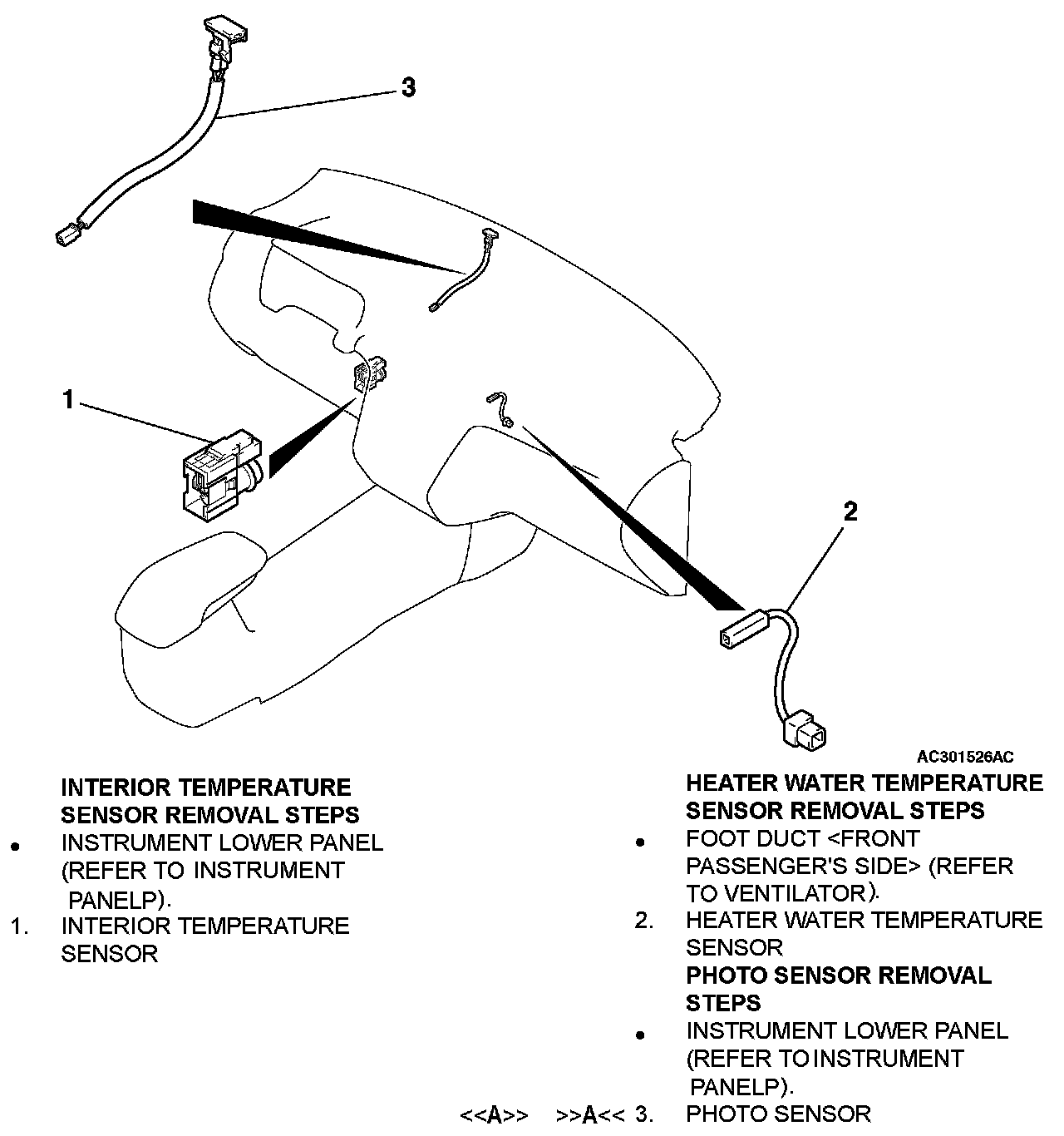

Removal Steps 1-3:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> PHOTO SENSOR REMOVAL.

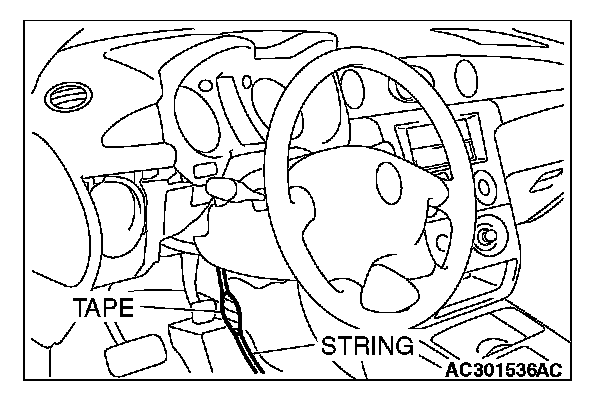

Binding the photo sensor connector with a cord and rapping a tape around the connector as its surface is flatly to pull out the photo sensor toward the instrument panel upper.

INSTALLATION SERVICE POINT

>>A<< PHOTO SENSOR INSTALLATION.

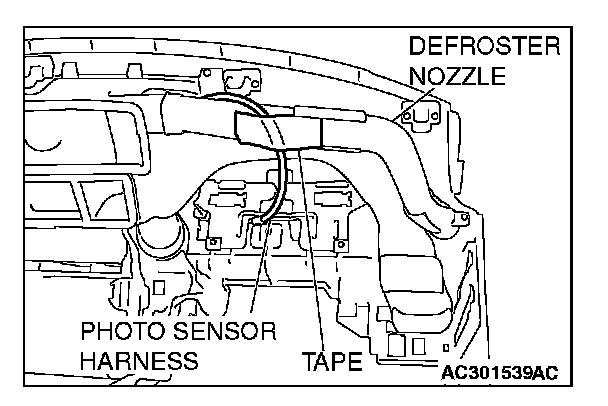

Tape the photo sensor under the defroster nozzle.
