How to Read Circuit Diagrams

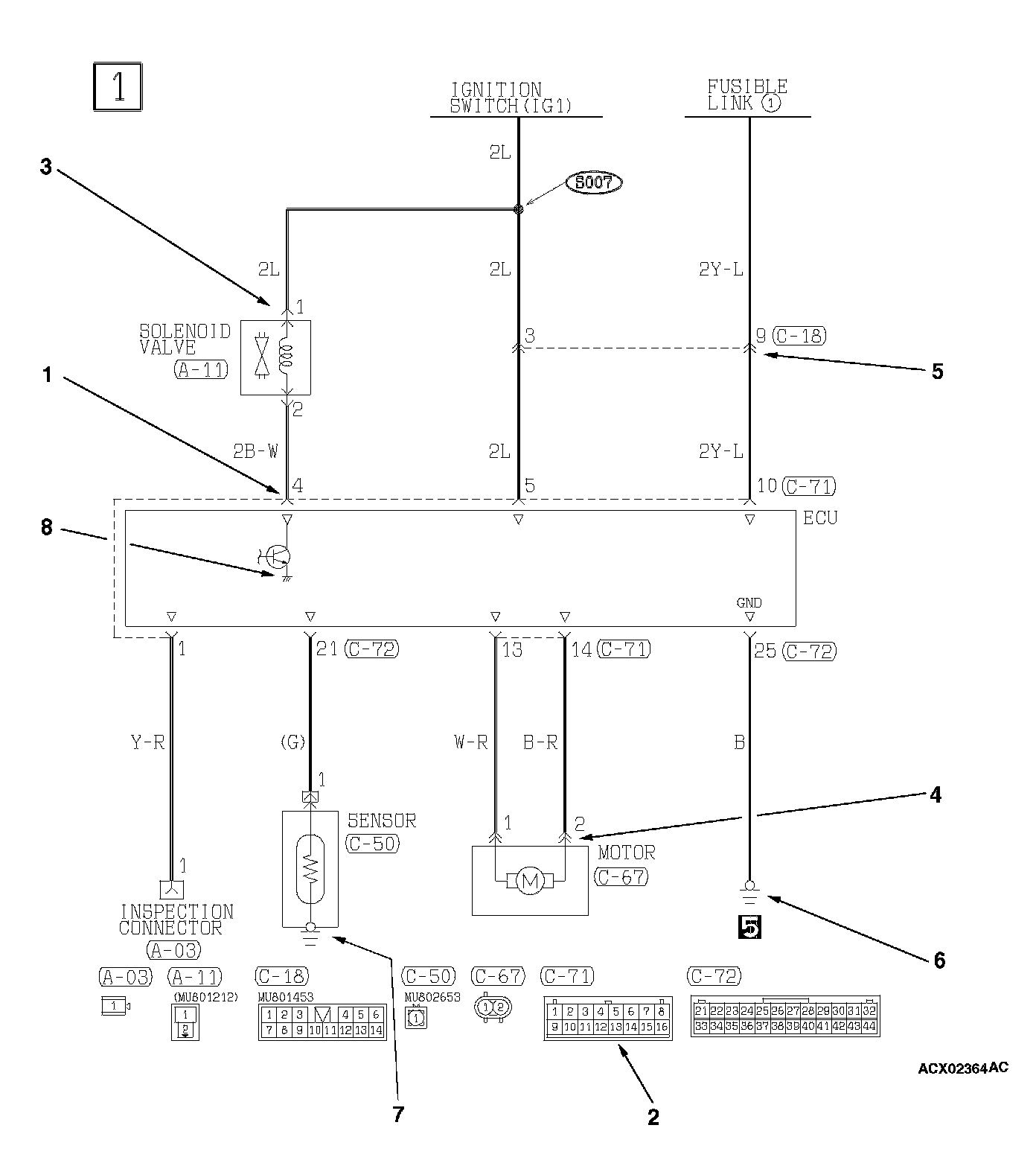

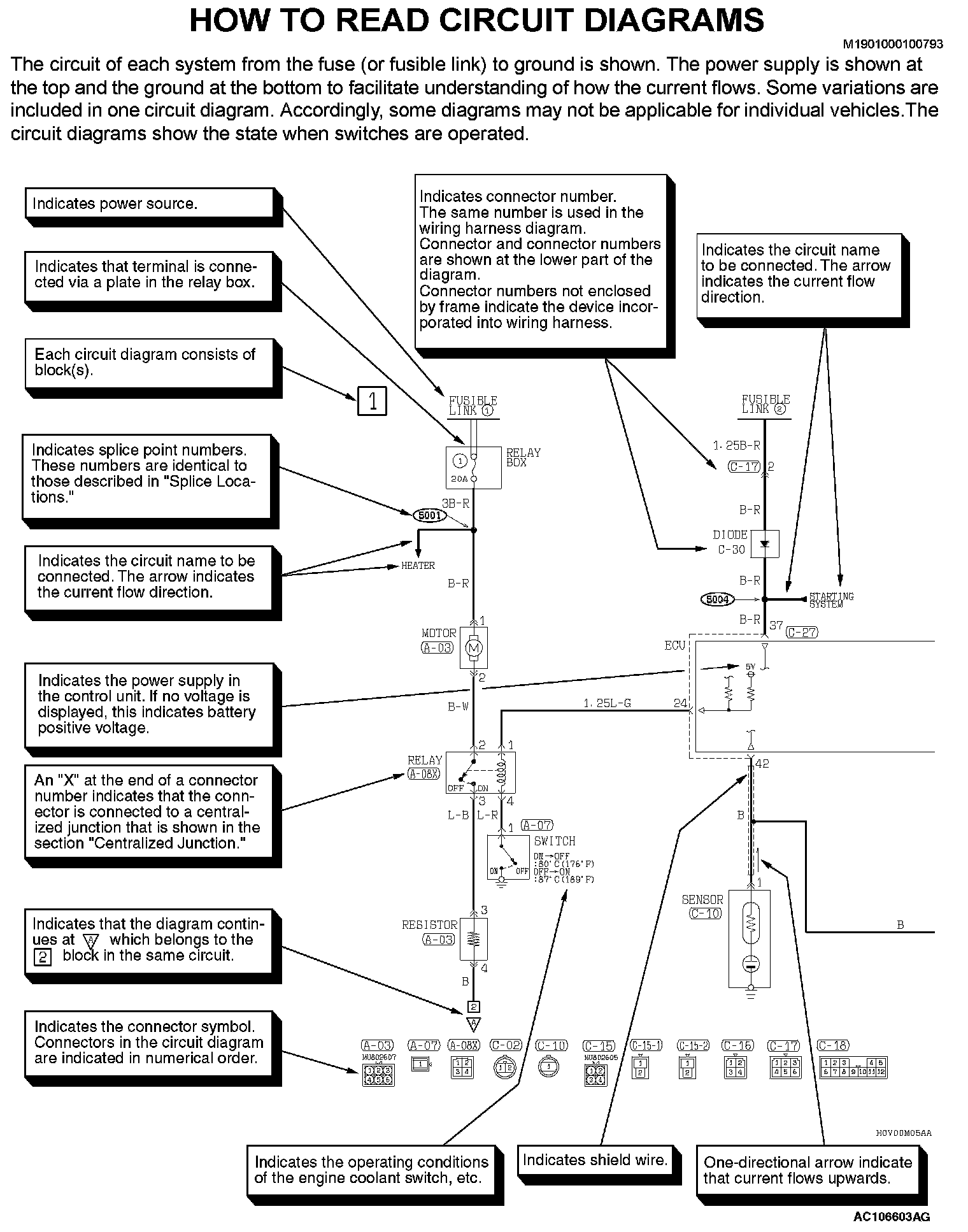

How To Read Circuit Diagram Part 1:

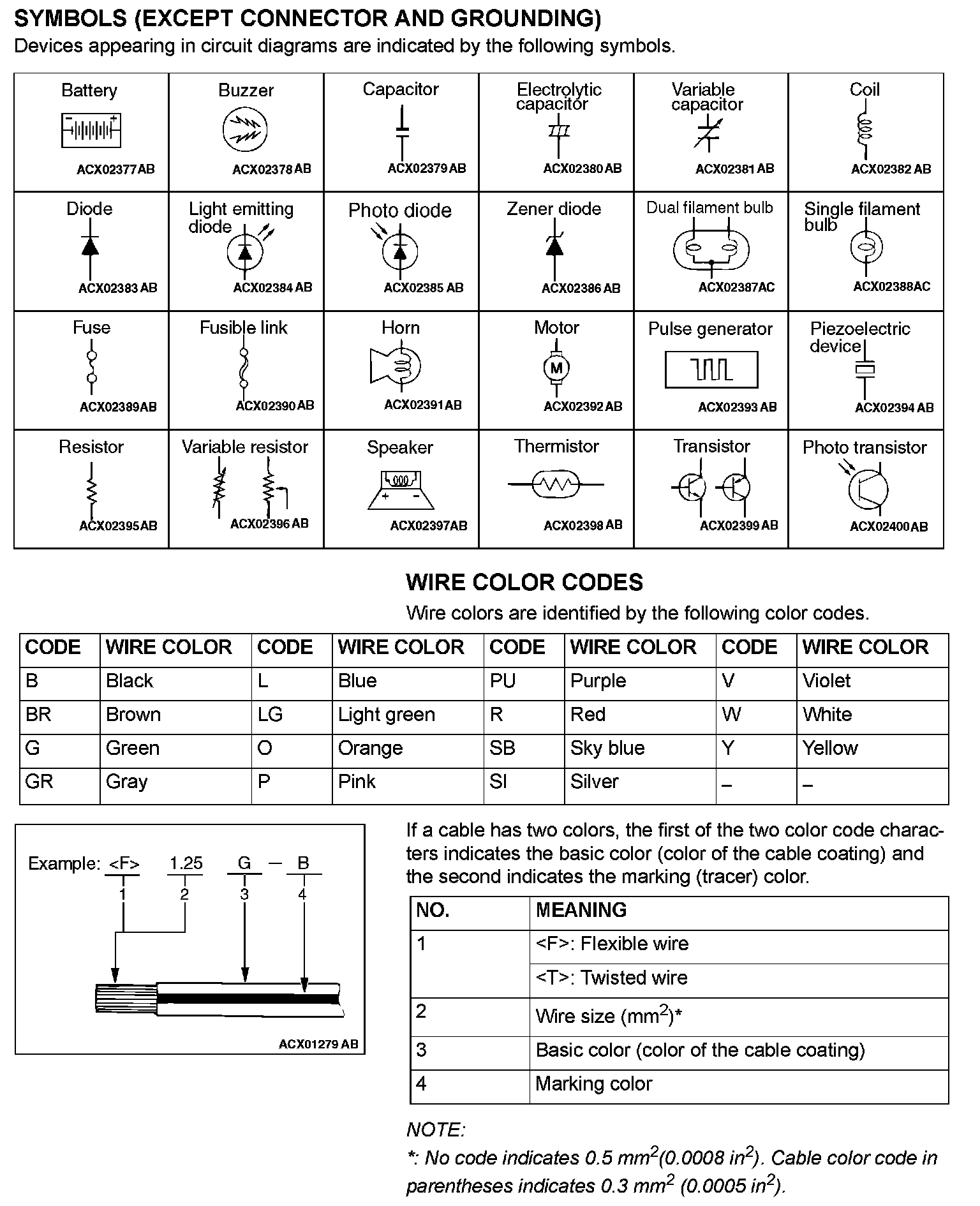

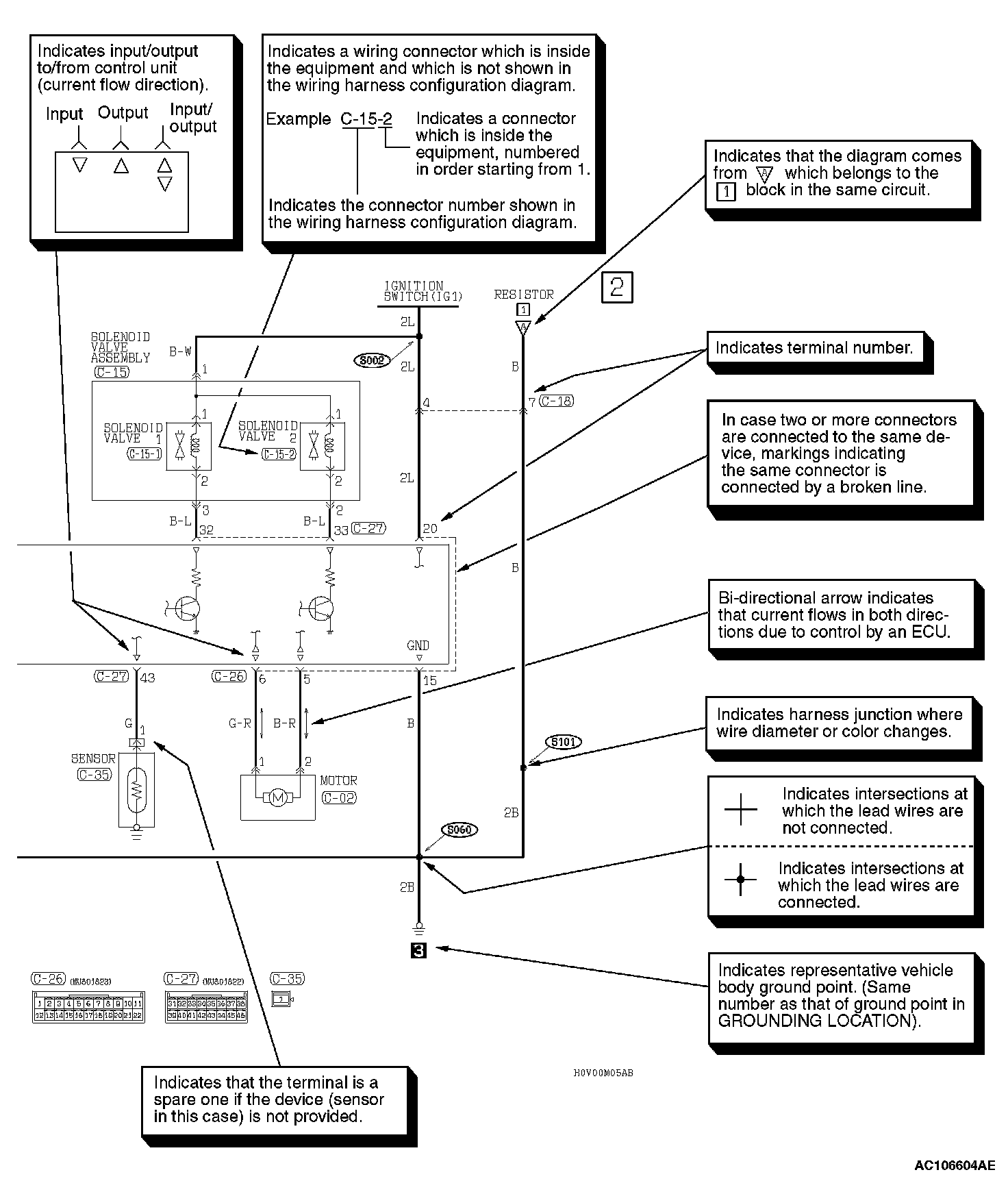

How To Read Circuit Diagram Part 2:

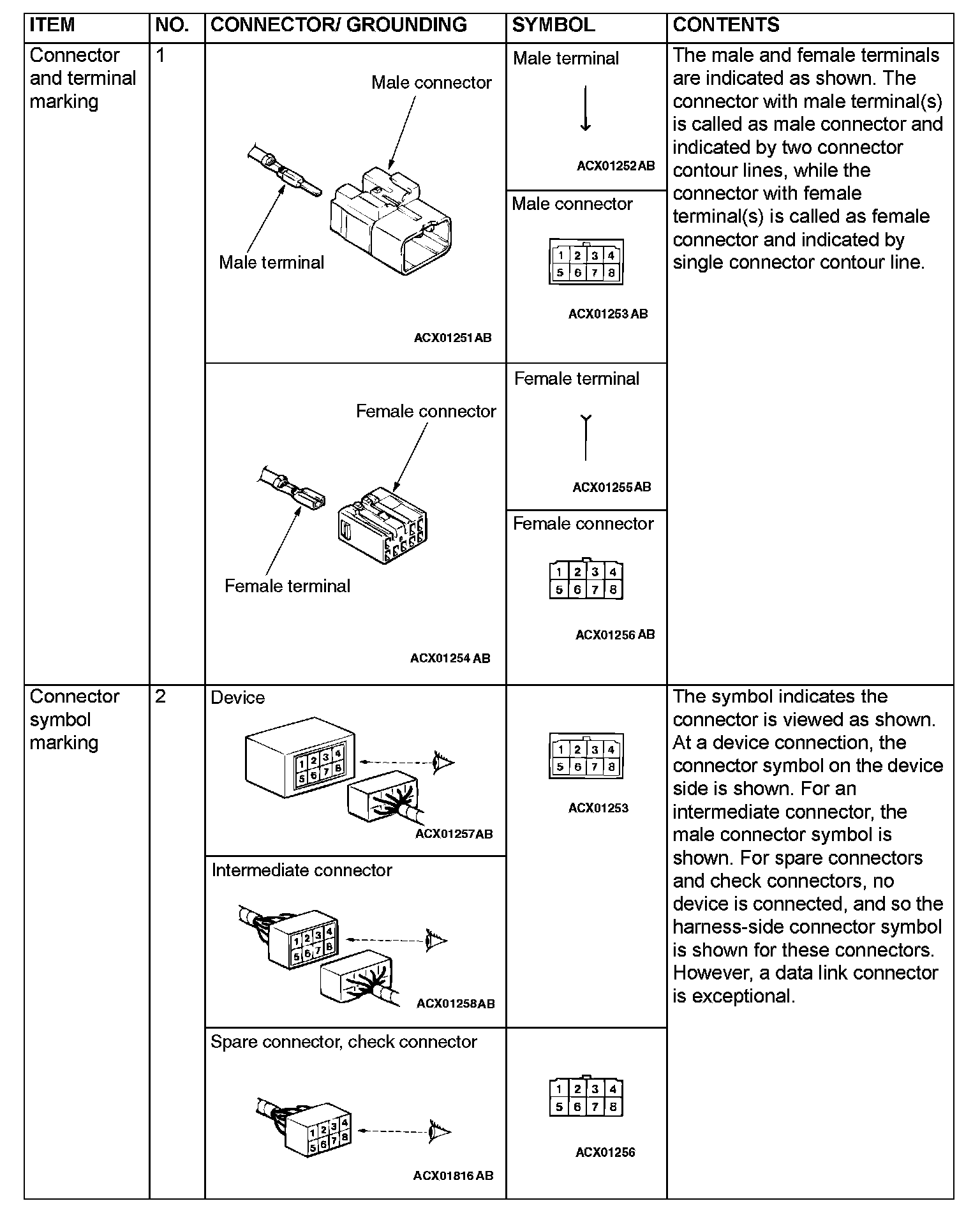

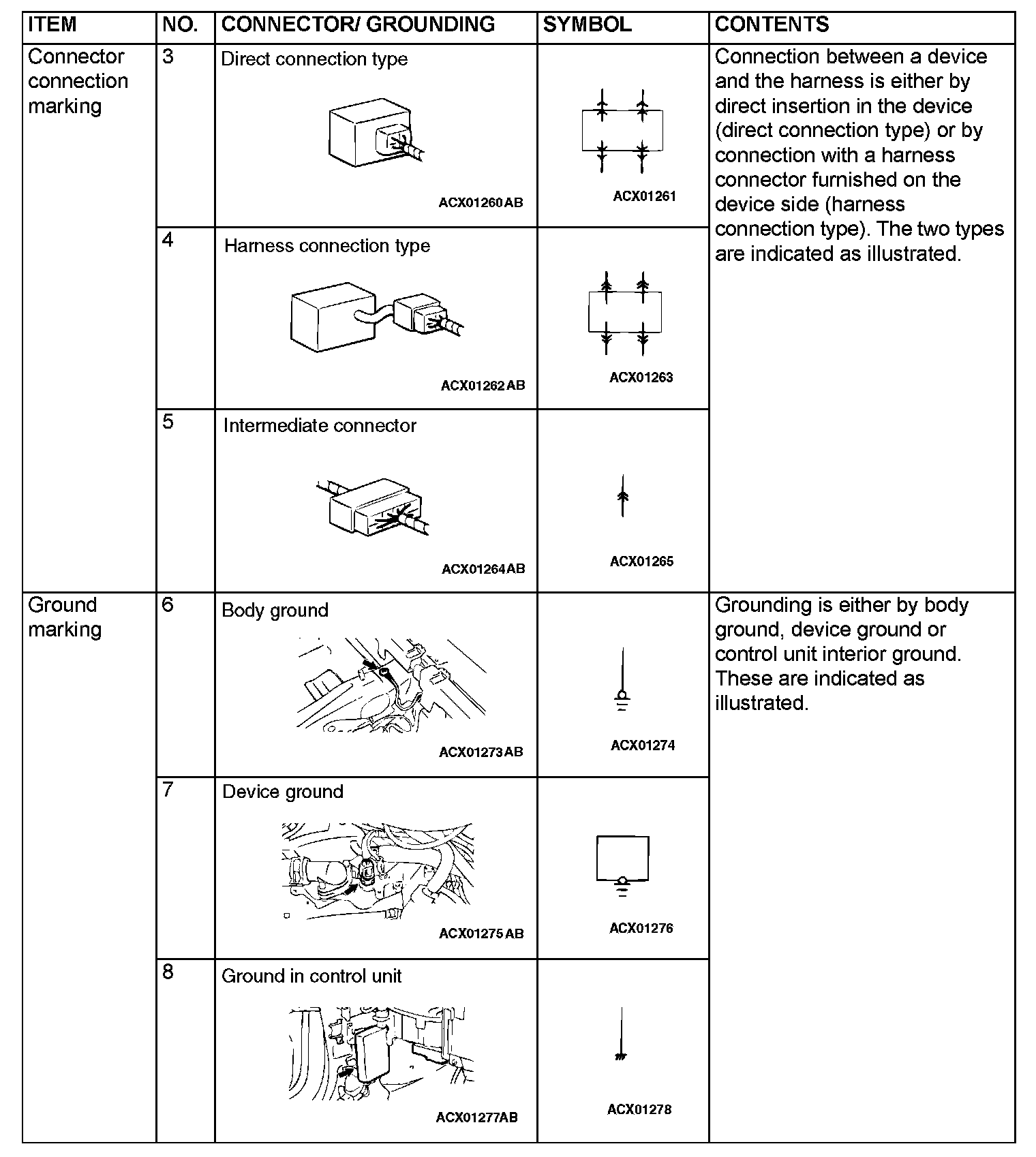

Connector/Grounding Indications:
