Oxygen Sensor: Testing and Inspection

HEATED OXYGEN SENSOR CHECK

Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
- MB991658: Test Harness


1. Using the scan tool MB991958, observe HO2S reading. If values are unsatisfactory, or if Scan tool is not available, use the following procedure:

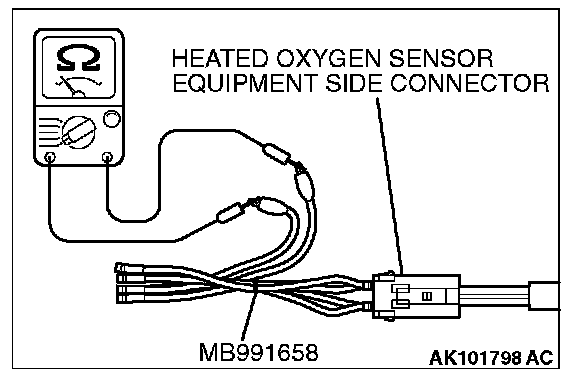

1. Disconnect the heated oxygen sensor connector and connect special tool MB991658 to the connector on the heated oxygen sensor side.
2. Make sure that there is continuity [11 - 18 ohms at 20 degrees C (68 degrees F)] between terminal No. 1 and terminal No. 3 on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
4. Warm up the engine until engine coolant is 80 degrees C ( 176 degrees F) or higher.




5. Drive at 50 km/h (31 mph) or more for 10 minutes.
6. Connect a digital voltage meter between terminal No. 2 and terminal No. 4.

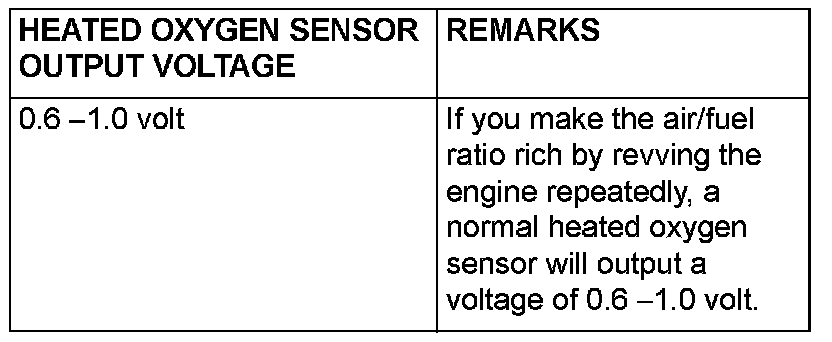

7. Measure the output voltage of the heated oxygen sensor under the following driving.
- Transaxle: 2nd speed (A/T: "L" range)
- Drive with wide open throttle
- Engine: 3,500 r/min or more





NOTE: If the sufficiently high temperature [of approximate 400 degrees C (752 degrees F) or more] is not reached although the heated oxygen sensor is normal, the output voltage would be possibly low although the rich air/fuel ratio.

8. If the output voltage is not within the standard value, replace the heated oxygen sensor.

NOTE: For removal and installation of the heated oxygen sensor, refer to Exhaust Pipe and Main Muffler , refer to Exhaust Pipe and Main Muffler .


1. Using the scan tool MB991958, observe HO2S reading. If values are unsatisfactory, or if Scan tool is not available, use the following procedure:

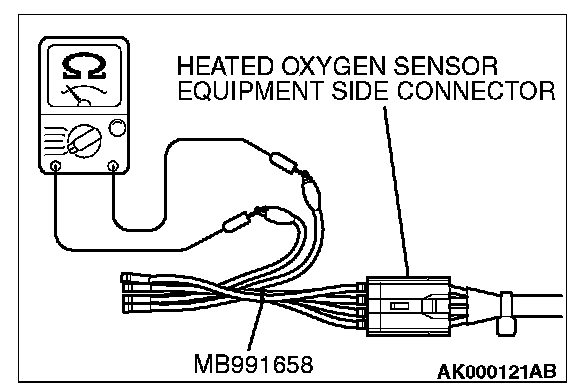

1. Disconnect the heated oxygen sensor connector and connect special tool MB991658 to the connector on the heated oxygen sensor side.
2. Make sure that there is continuity [4.5 - 8.0 ohms at 20 degrees C (68 degrees F)] between terminal No. 1 and terminal No. 2 on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
4. Warm up the engine until engine coolant is 80 degrees C (176 degrees F) or higher.




5. Perform a revving for 5 minutes or more with the engine speed of 4,500 r/min.

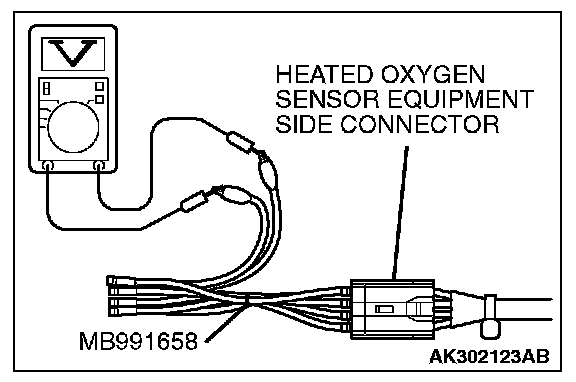

6. Connect a digital voltage meter between terminal No. 3 and terminal No. 4.

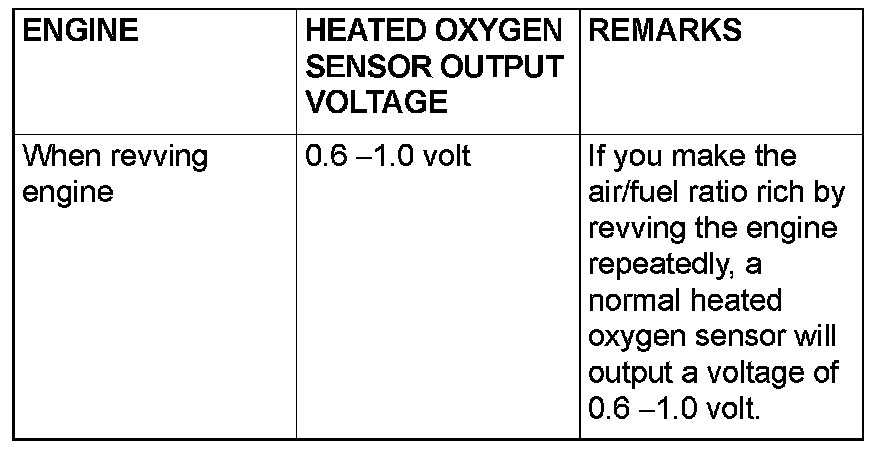

Standard Value:




2. While repeatedly revving the engine, measure the heated oxygen sensor output voltage.

CAUTION:
- Be very careful when connecting the jumper wire; incorrect connection can damage the heated oxygen sensor.
- Be careful the heater is broken when voltage of beyond 8 volts is applied to the heated oxygen sensor heater.

NOTE: If the sufficiently high temperature [of approximate 400 degrees C (752 degrees F) or more] is not reached although the heated oxygen sensor is normal, the output voltage would be possibly low although the rich air/fuel ratio. Therefore, if the output voltage is low, use jumper wires to connect the terminal No. 2 and the terminal No. 1 of the heated oxygen sensor with a (+) terminal and (-) terminal of 8 volts power supply respectively, then check again.

3. If the output voltage is not within the standard value, replace the heated oxygen sensor.

NOTE: For removal and installation of the heated oxygen sensor, refer to, Emission Control -Catalytic Converter -Removal and Installation.
