Inspection Procedure Using an Oscilloscope

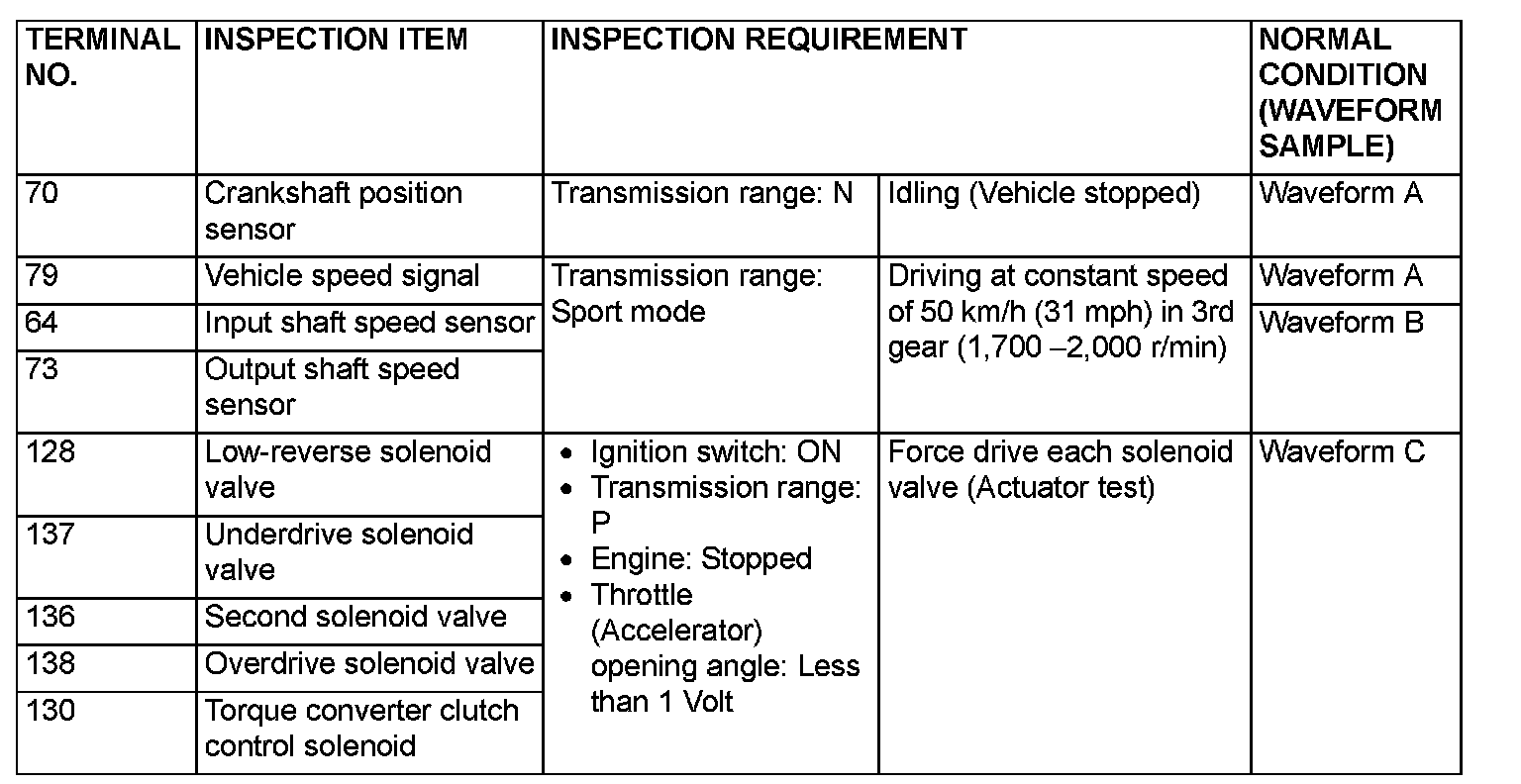

INSPECTION PROCEDURE USING AN OSCILLOSCOPE:
INSPECTION PROCEDURE USING AN OSCILLOSCOPE

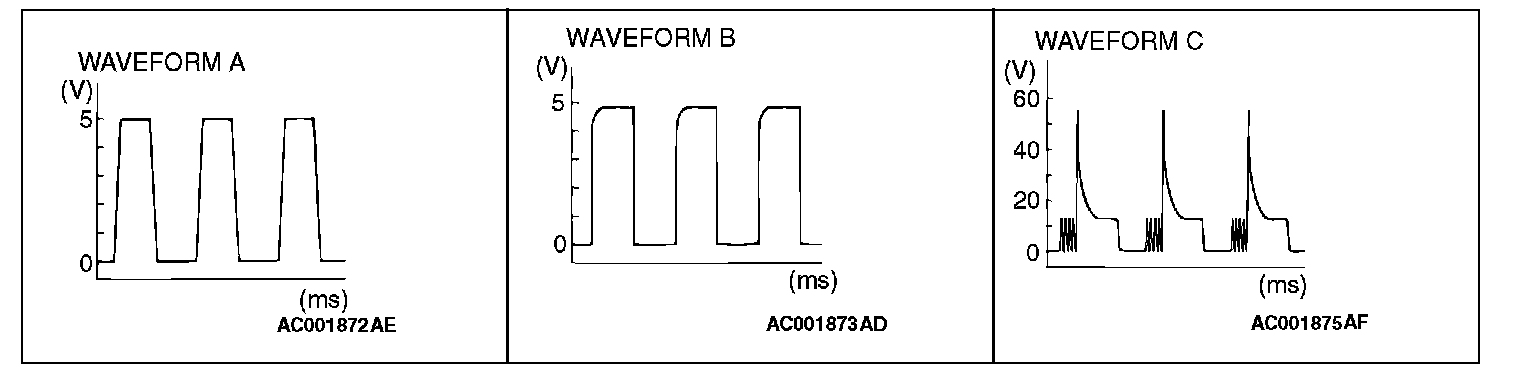

WAVEFORM SAMPLE:
