Transmission Fluid Temperature Sensor Check
TRANSMISSION FLUID TEMPERATURE SENSOR CHECK1. Remove the transmission fluid temperature sensor.

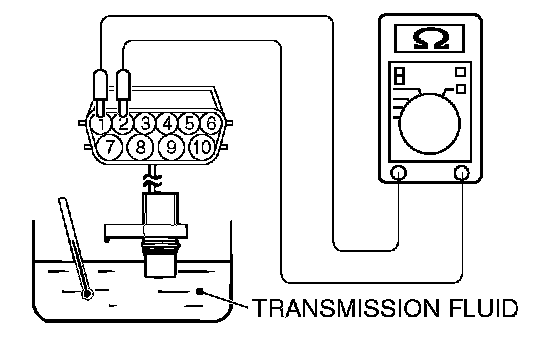

2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

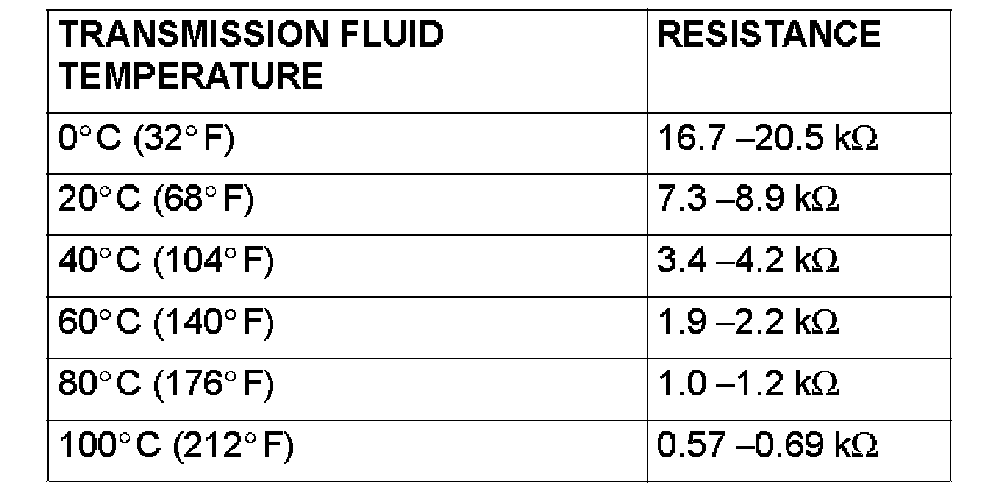

Standard Value:
3. If the transmission fluid temperature sensor resistance is outside the specified range and the A/T TEMP warning light is illuminating, replace the transmission fluid temperature sensor.
NOTE: The A/T TEMP warning light on the combination meter illuminates when the temperature reaches approximately 125°C (257°F) or greater, and then stops illuminating when the temperature drops below approximately 115°C (239°F).
