Ignition Switch: Service and Repair
IGNITION SWITCHREMOVAL AND INSTALLATION

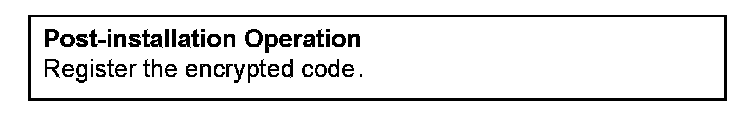

Post-installation Operation:

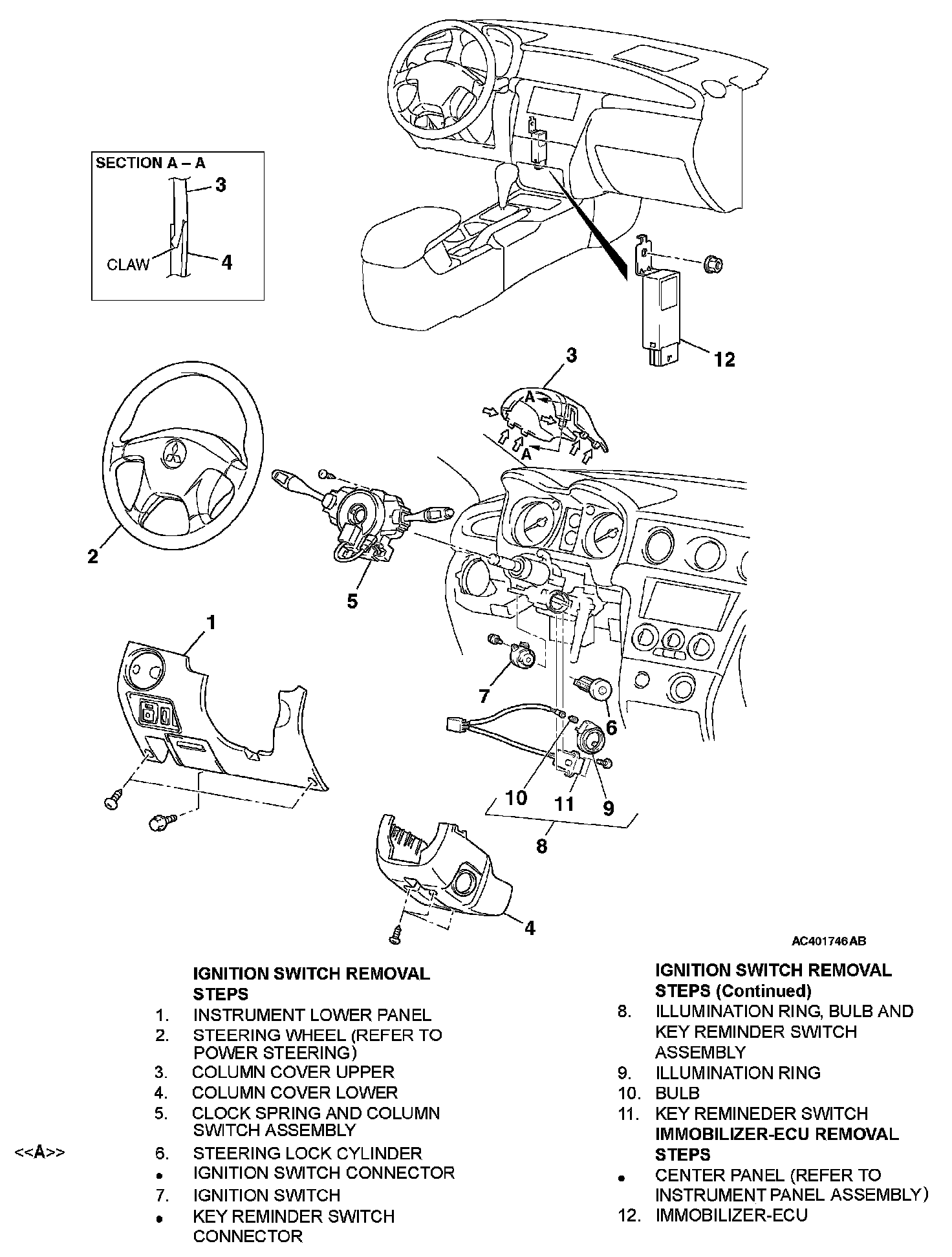

Removal Steps 1-12:
WARNING:
- Before removing the steering wheel, air bag module assembly and clock spring refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
CAUTION: When the steering lock cylinder is replaced, register the encrypted code.
REMOVAL SERVICE POINTS
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

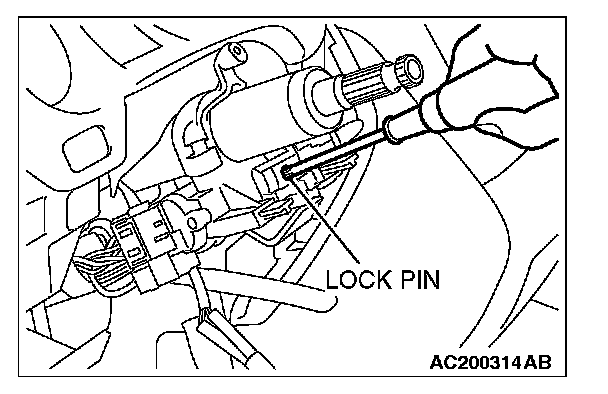

2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
