Transmission Mode Switch: Service and Repair

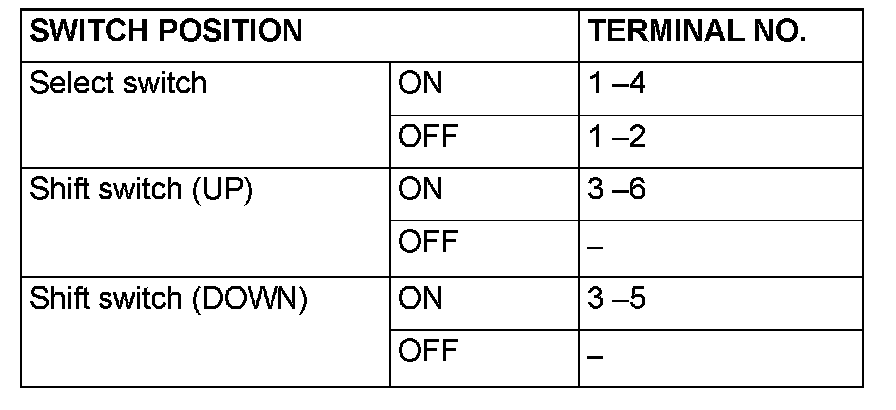

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK:



SHIFT SWITCH ASSEMBLY CONTINUITY CHECK:
