Fog/Driving Lamp
Fog/Driving Lamp

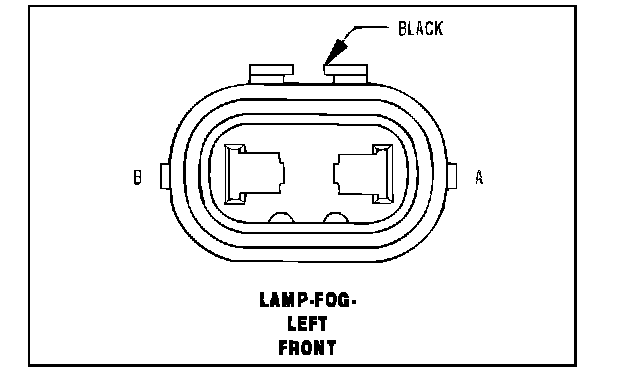

Lamp-Fog-Left Front-Black 2 Way (Part 1):

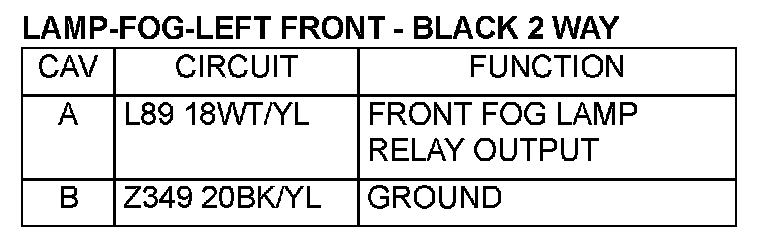

Lamp-Fog-Left Front-Black 2 Way (Part 2):

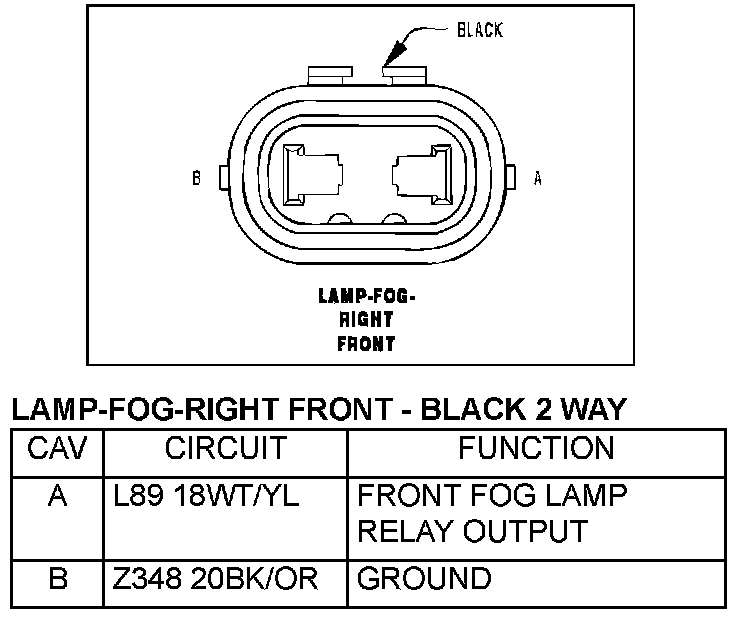

Lamp-Fog-Right Front-Black 2 Way:
