Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

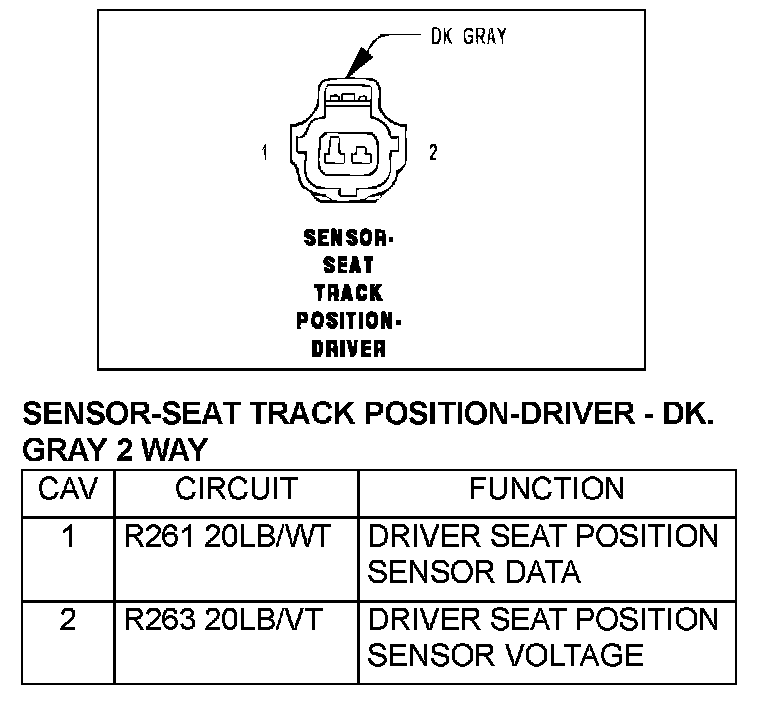

Sensor-Seat Track Position-Driver-DK-Gray 2 Way:

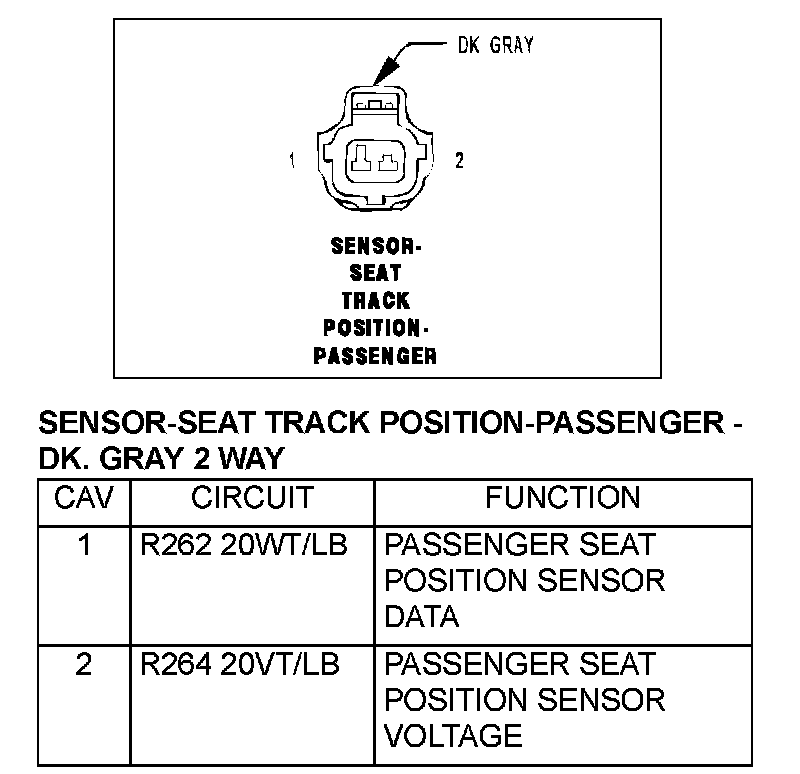

Sensor-Seat Track Position-Passenger-DK-Gray 2 Way:
