Power Window Circuit Breaker
Power Window Circuit Breaker

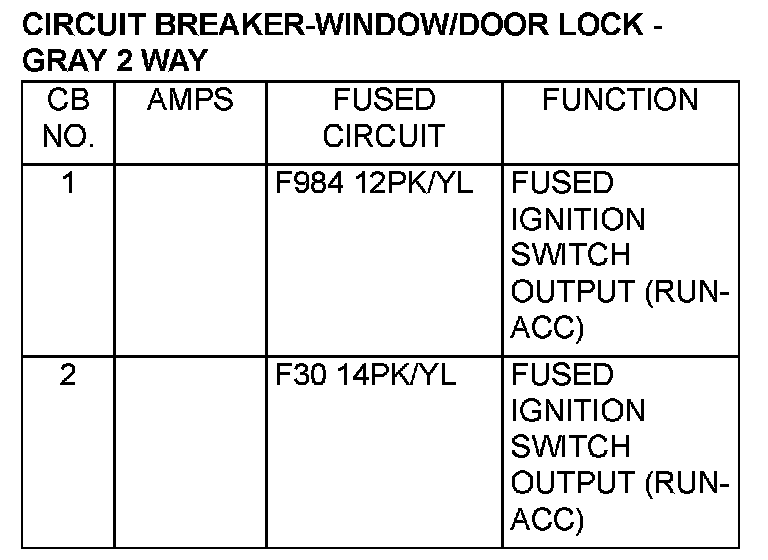

Circuit Breaker-Window/Door Lock-Gray 2 Way (Part 1):

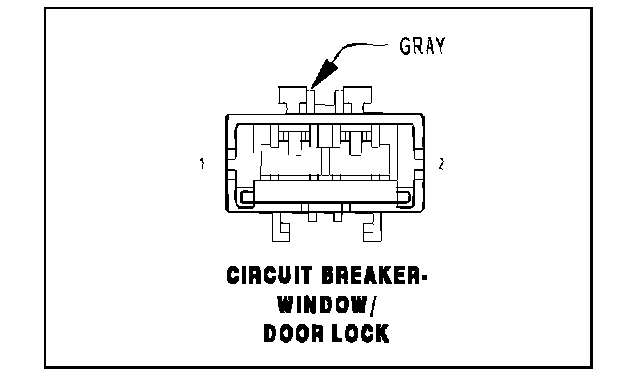

Circuit Breaker-Window/Door Lock-Gray 2 Way (Part 2):
