Seat Temperature Element
Seat Temperature Element

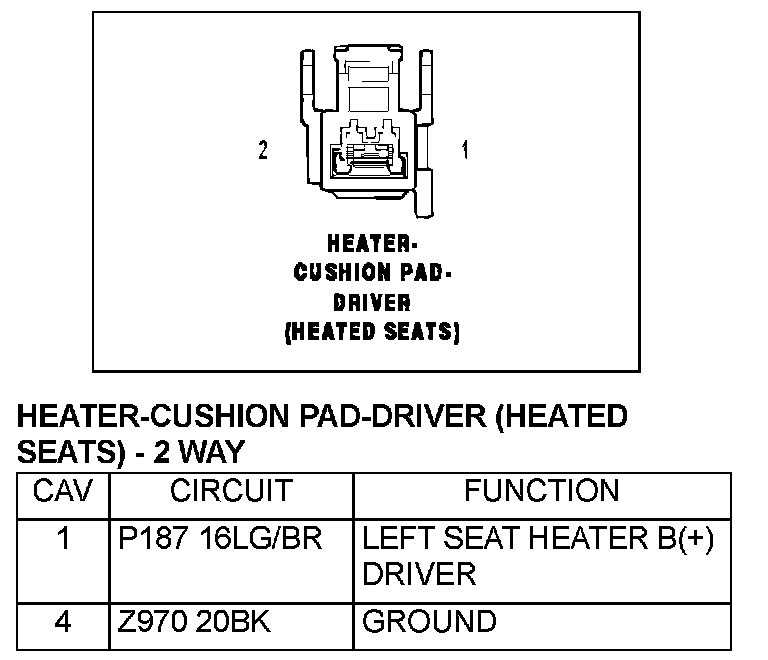

Heater-Cushion Pad-Driver (Heated Seats)-2 Way:

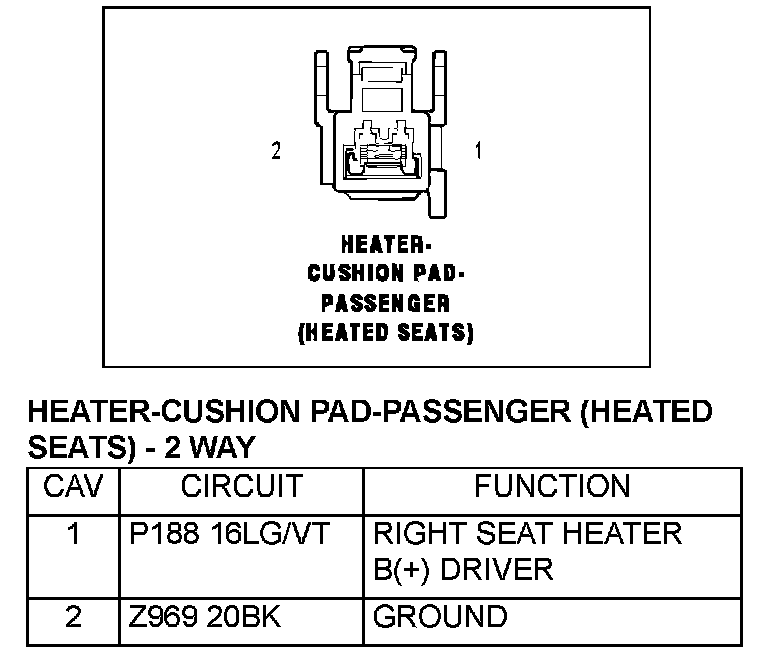

Heater-Cushion Pad-Passenger (Heated Seats)-2 Way:

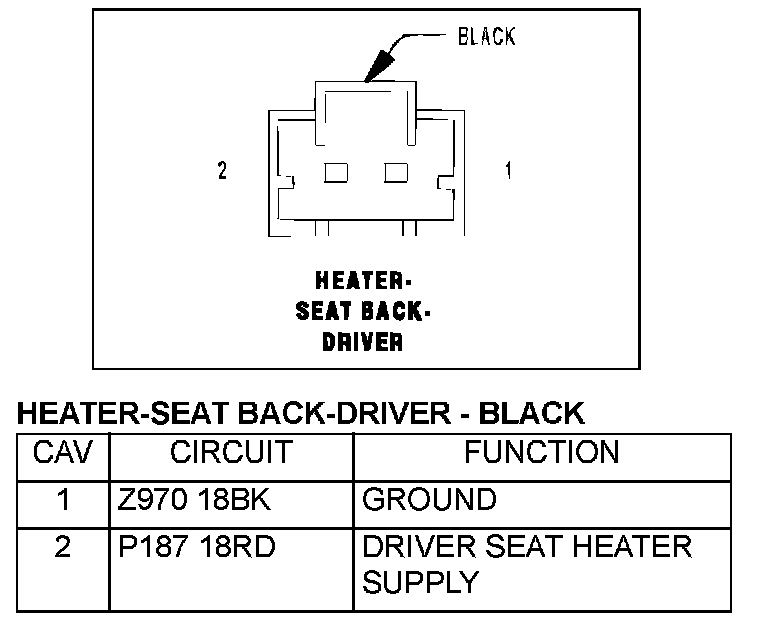

Heater-Seat Back-Driver-Black:

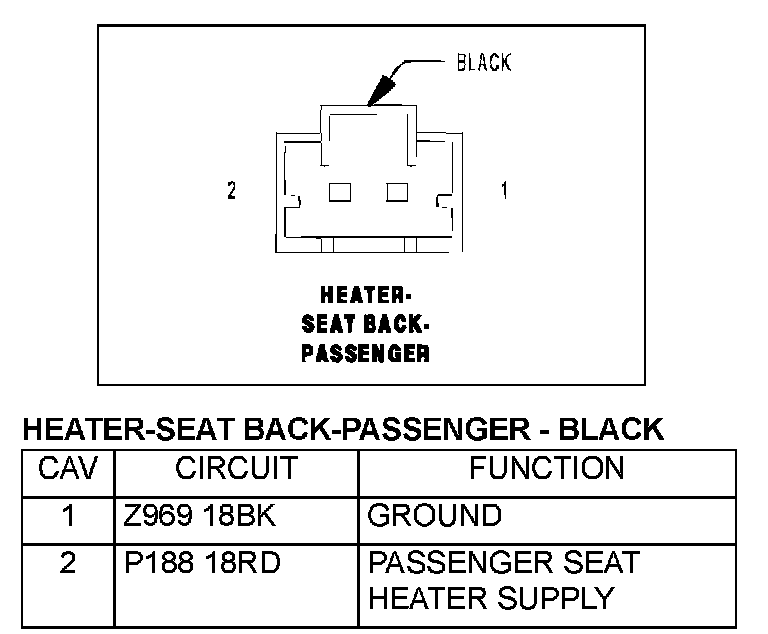

Heater-Seat Back-Passenger-Black:
