Trailer Connector
Trailer Connector

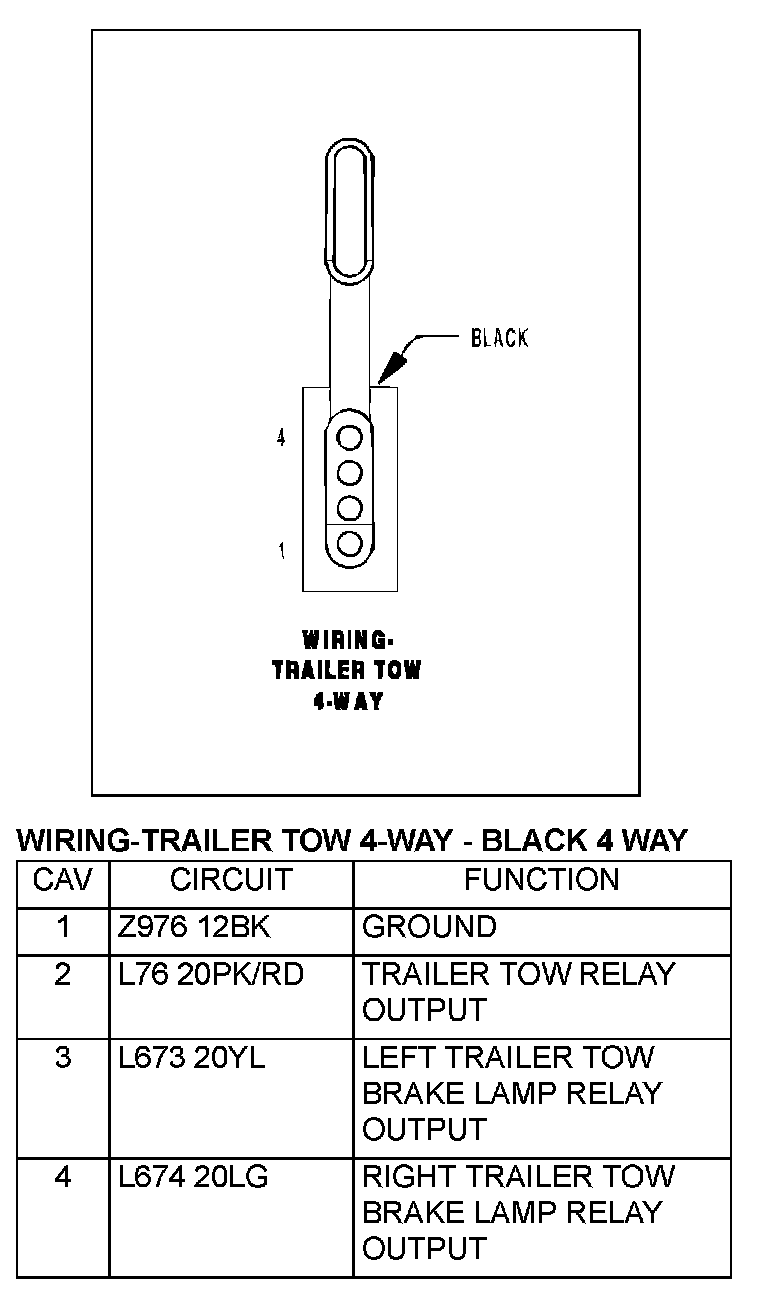

Wiring-Trailer Tow 4-Way-Black 4 Way:

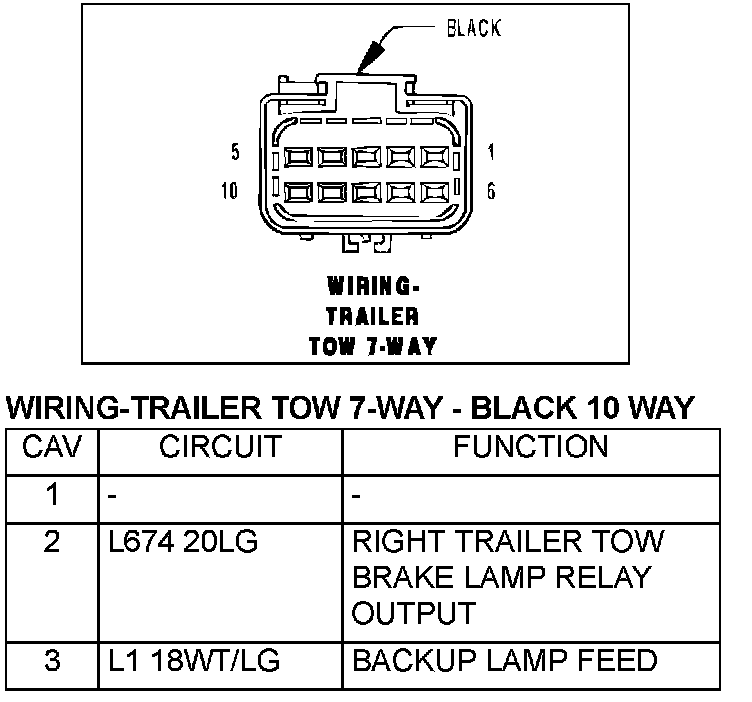

Wiring-Trailer Tow 7-Way-Black 10 Way (Part 1):

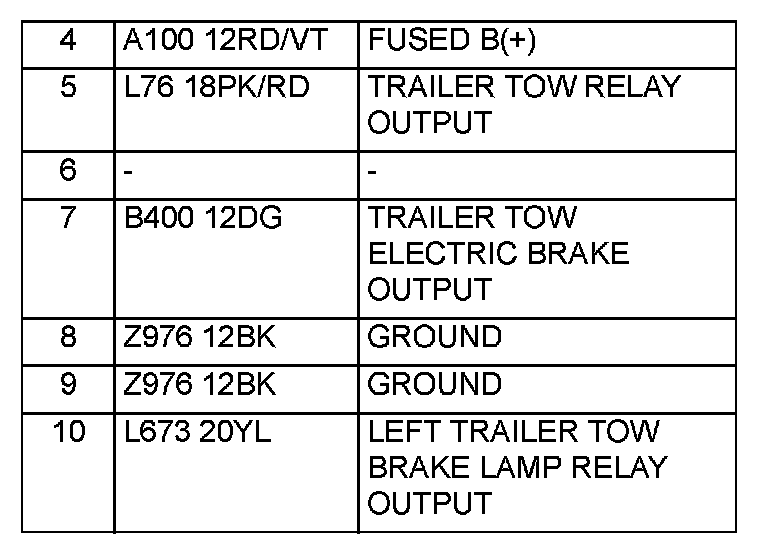

Wiring-Trailer Tow 7-Way-Black 10 Way (Part 2):
