Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

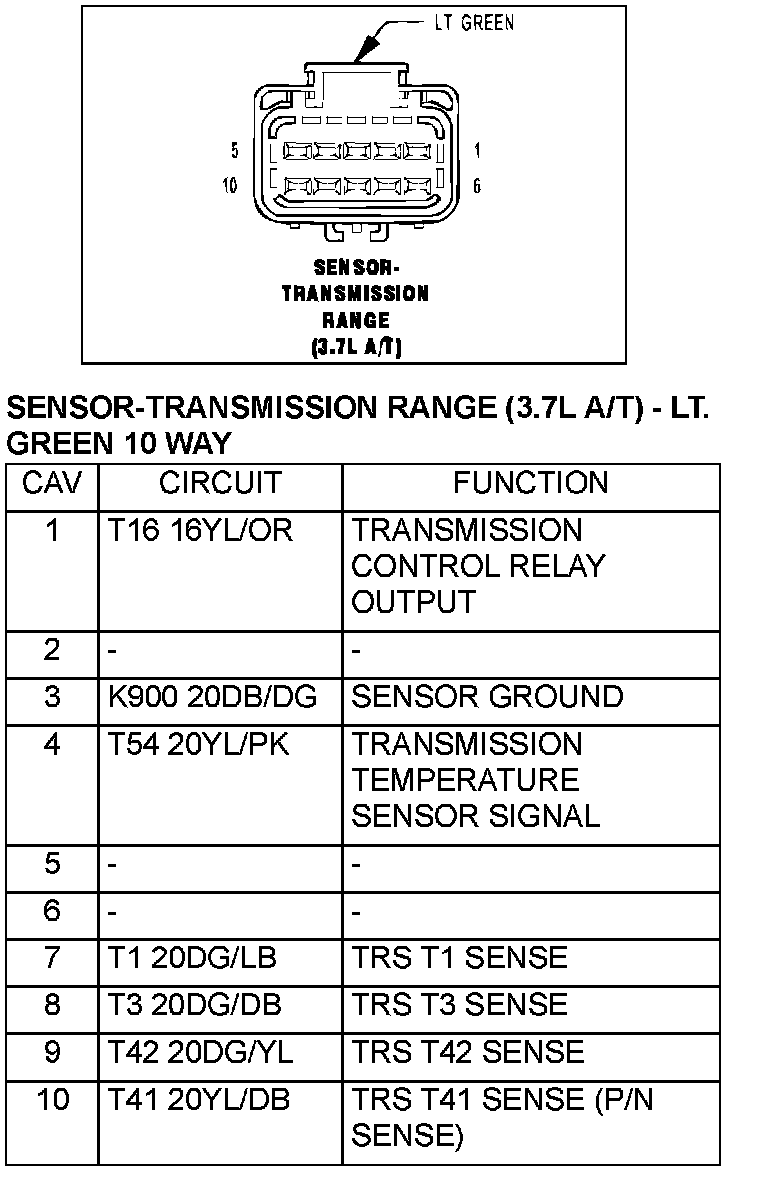

Sensor-Transmission Range (3.7L A/T)-LT Green 10 Way:
