Coolant Reservoir: Service and Repair

CONTAINER - COOLANT RECOVERY

REMOVAL

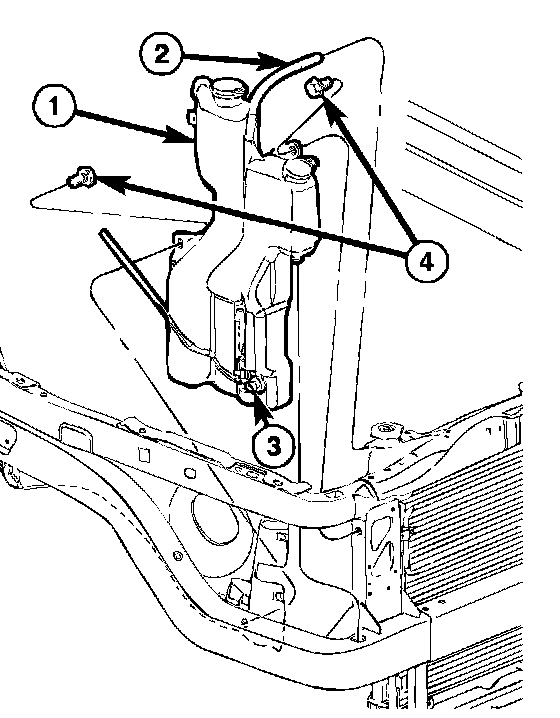

1. Remove RH radiator seal.
2. Remove coolant recovery container hose (2).
3. Disconnect washer pump electrical connector (3).
4. Remove coolant recovery container mounting bolts (4) and clip.
5. Remove coolant recovery container (1) from vehicle.

INSTALLATION








1. Position coolant recovery container(1) in vehicle
2. Install coolant recovery container mounting bolts and clip. Tighten bolts to 8.5 Nm (75 inch lbs.).
3. Connect washer pump electrical connector (3).
4. Connect coolant recover container hose (2) to radiator.
5. Fill coolant recover container with windshield washer fluid and with coolant.
