Timing Components: Specifications

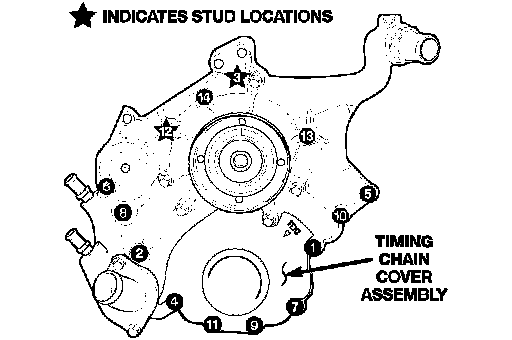

Timing Chain Cover Bolts 58 Nm (43 ft. lbs.)
Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
