Oxygen Sensor: Diagrams

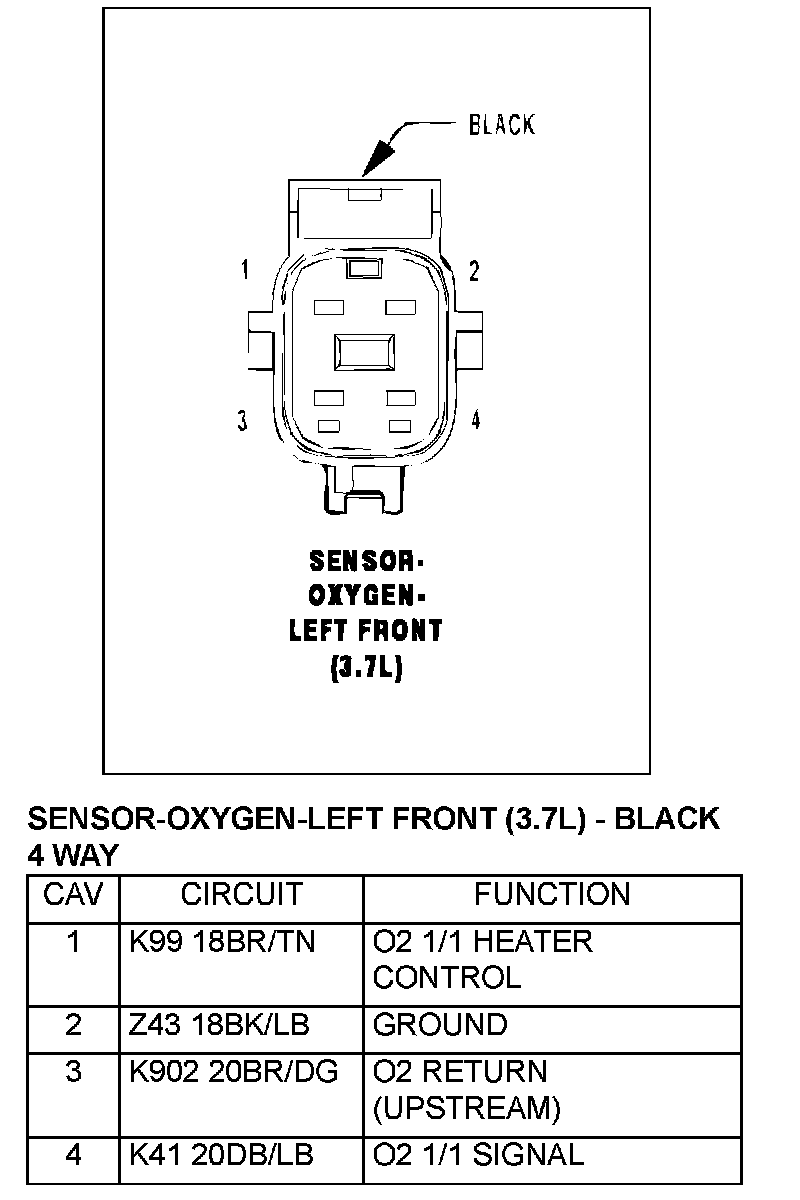

Sensor-Oxygen-Left Front (3.7L)-Black 4 Way:

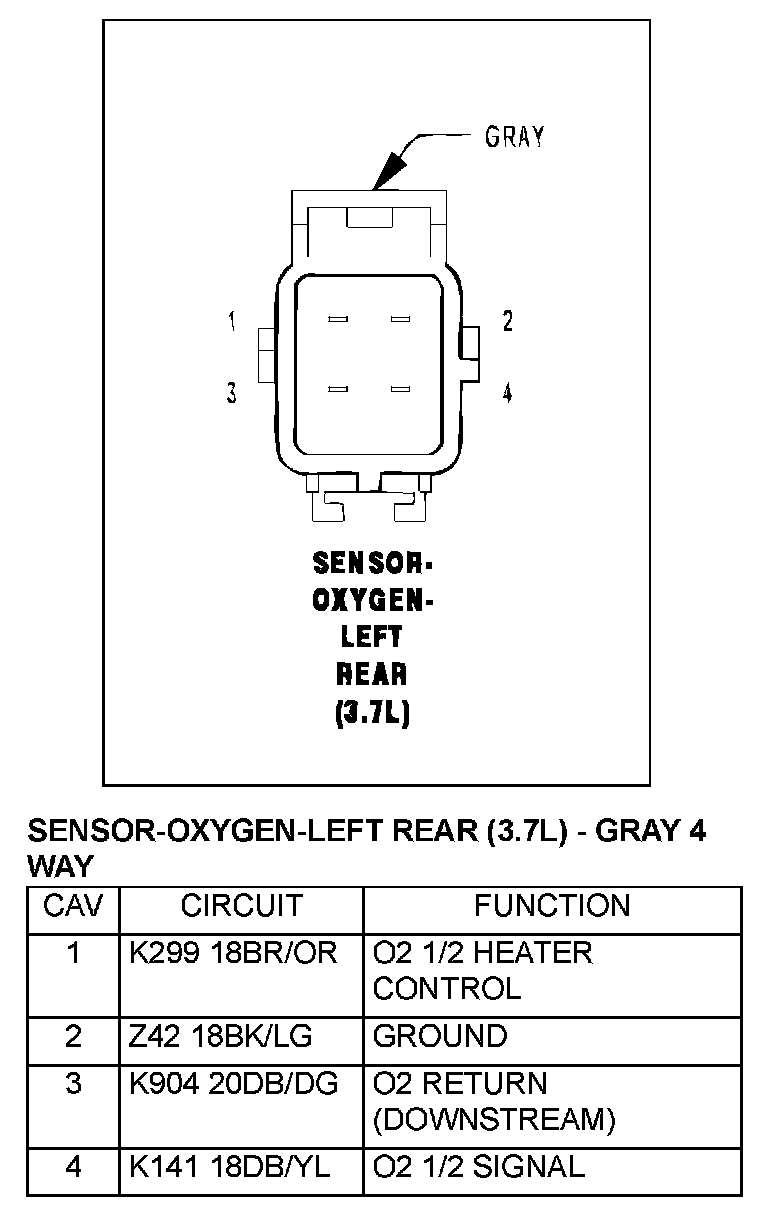

Sensor-Oxygen-Left Rear (3.7L)-Gray 4 Way:

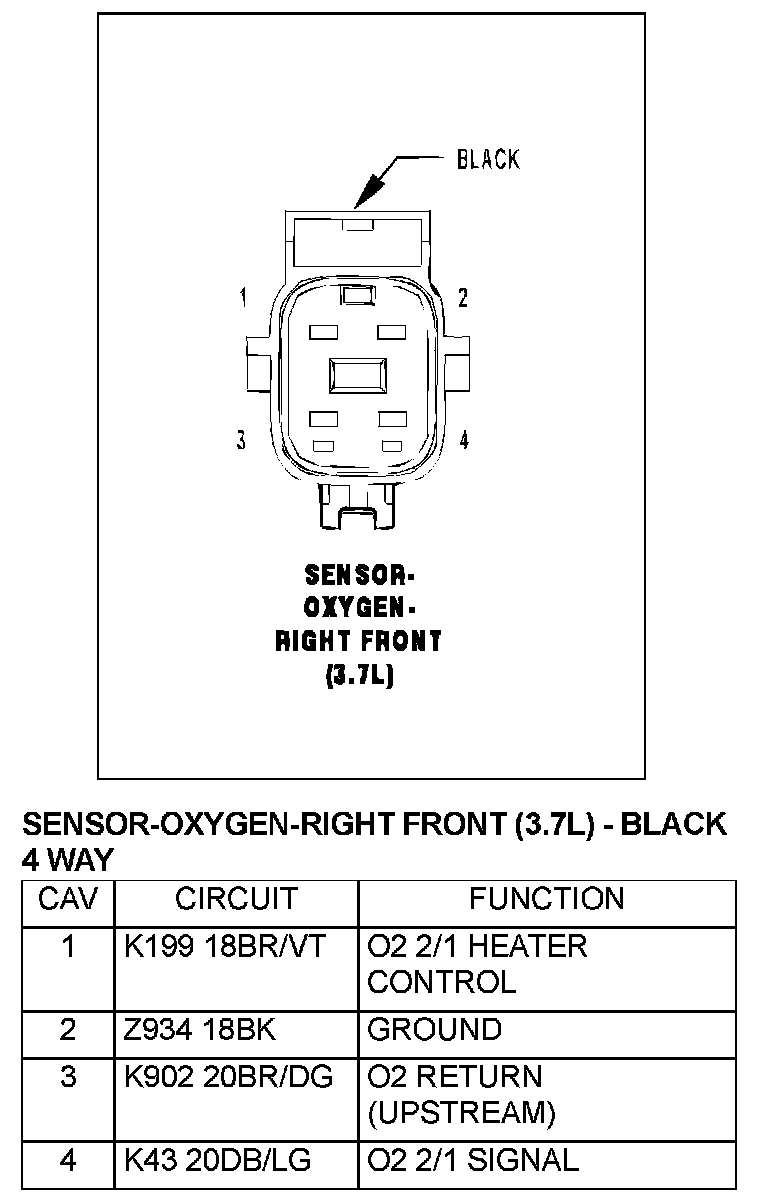

Sensor-Oxygen-Right Front (3.7L)-Black 4 Way:

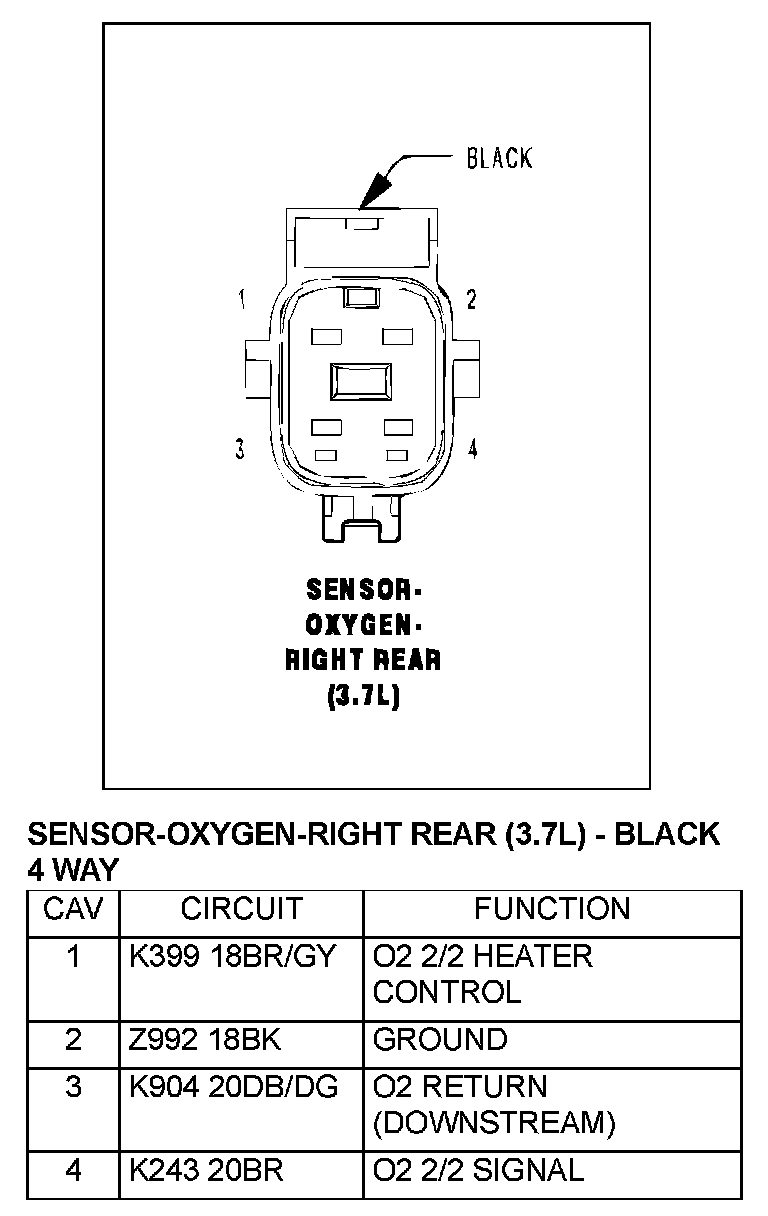

Sensor-Oxygen-Right Rear (3.7L)-Black 4 Way:
