Transmission Temperature Sensor/Switch: Service and Repair

SENSOR - TRANSMISSION RANGE

REMOVAL

1. Remove valve body assembly from vehicle.

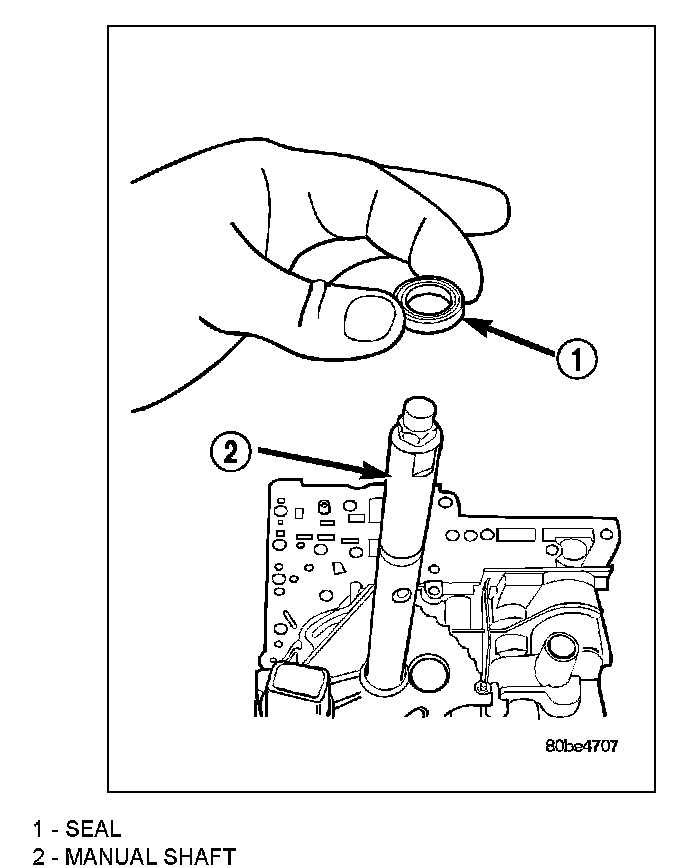

2. Remove the manual shaft seal (1).





3. Remove manual shaft/TRS retaining screw (1).
4. Slide TRS off of manual valve shaft.

INSTALLATION








1. Install the TRS (2) to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.
2. Install the TRS/manual shaft retaining screw (1) and torque to 5 Nm (45 inch lbs.) torque.





3. Install the manual shaft seal (1).
4. Install valve body to the transmission.
