Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

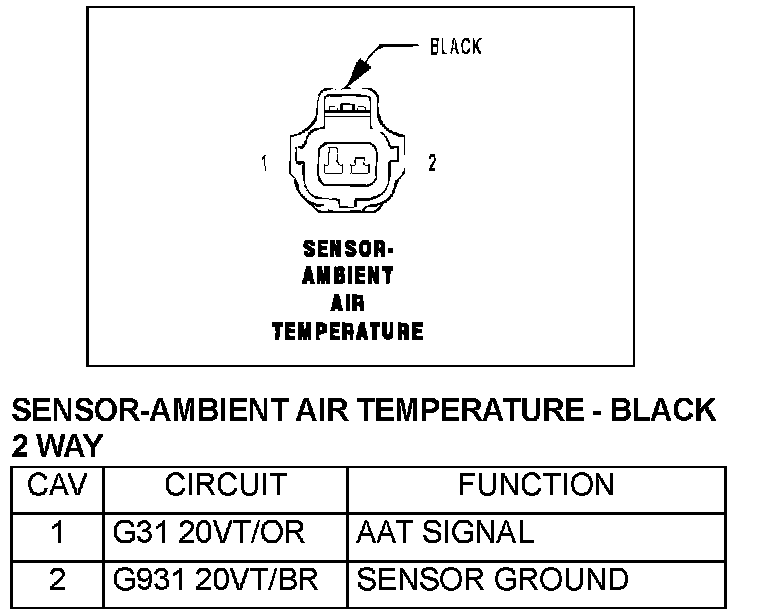

Sensor-Ambient Air Temperature-Black 2 Way:
