Wheel Speed Sensor

Sensor-Wheel Speed-ABS-Left Front (Awal)-Black 2 Way:

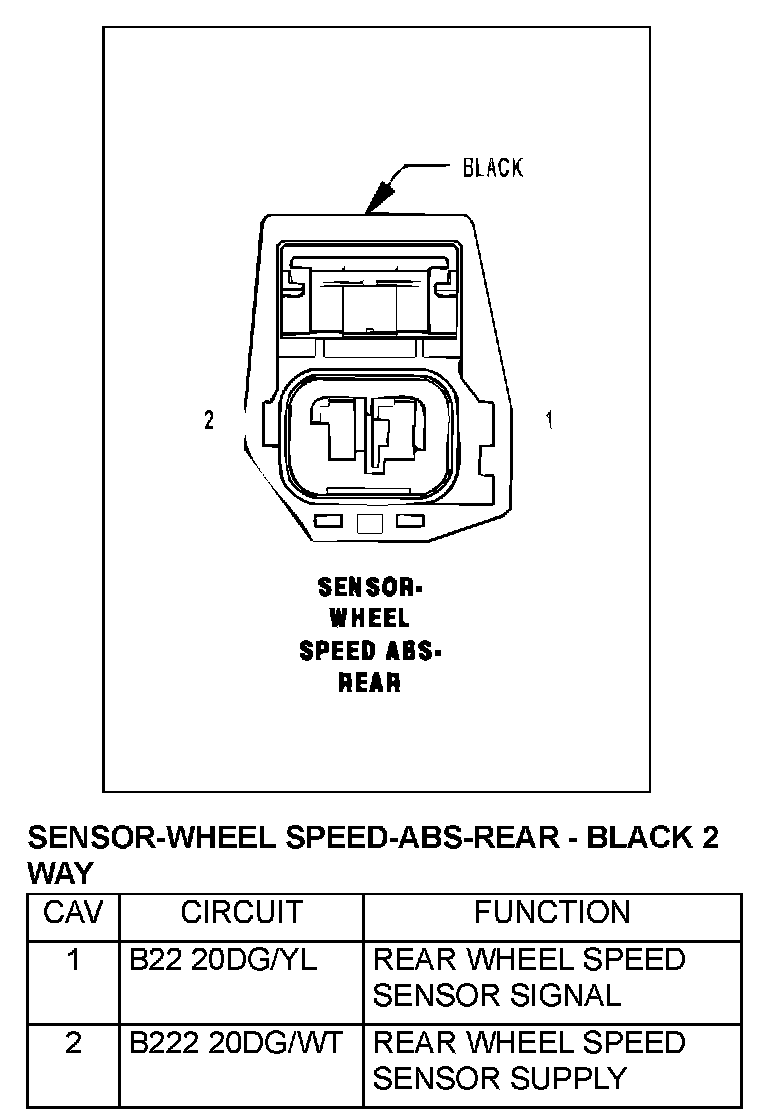

Sensor-Wheel Speed-ABS-Rear-Black 2 Way:

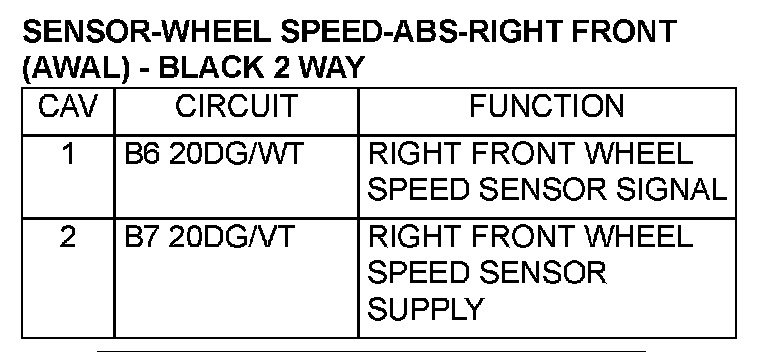

Sensor-Wheel Speed-ABS-Right Front (Awal)-Black 2 Way (Part 1):

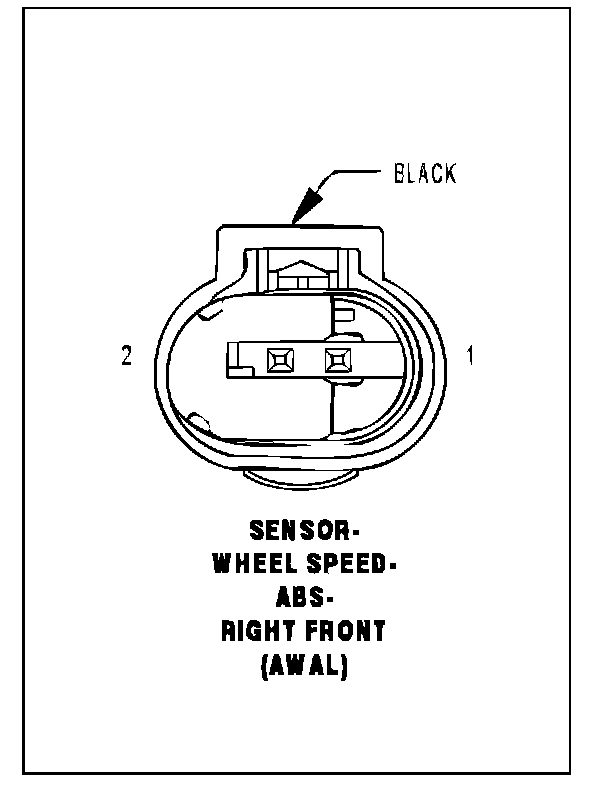

Sensor-Wheel Speed-ABS-Right Front (Awal)-Black 2 Way (Part 2):
