Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

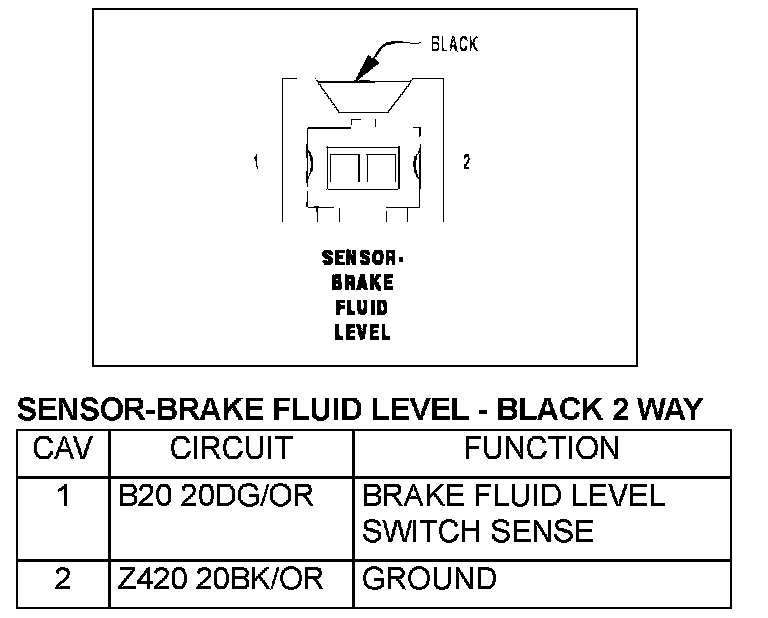

Sensor-Brake Fluid Level-Black 2 Way:
