Home
>>
Mitsubishi
>>
2006
>>
Raider V8-4.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor Clutch
Compressor Clutch

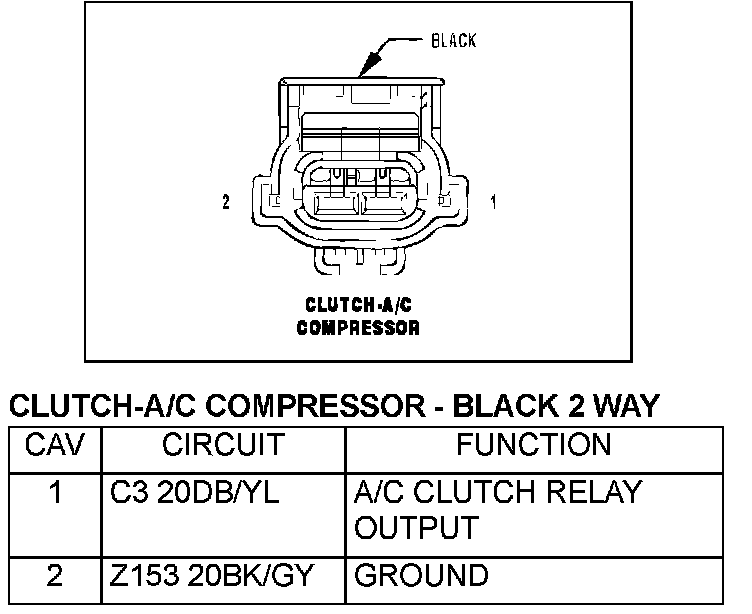

Clutch-A/C Compressor-Black 2 Way:
