Control Assembly, HVAC
Control Assembly, HVAC

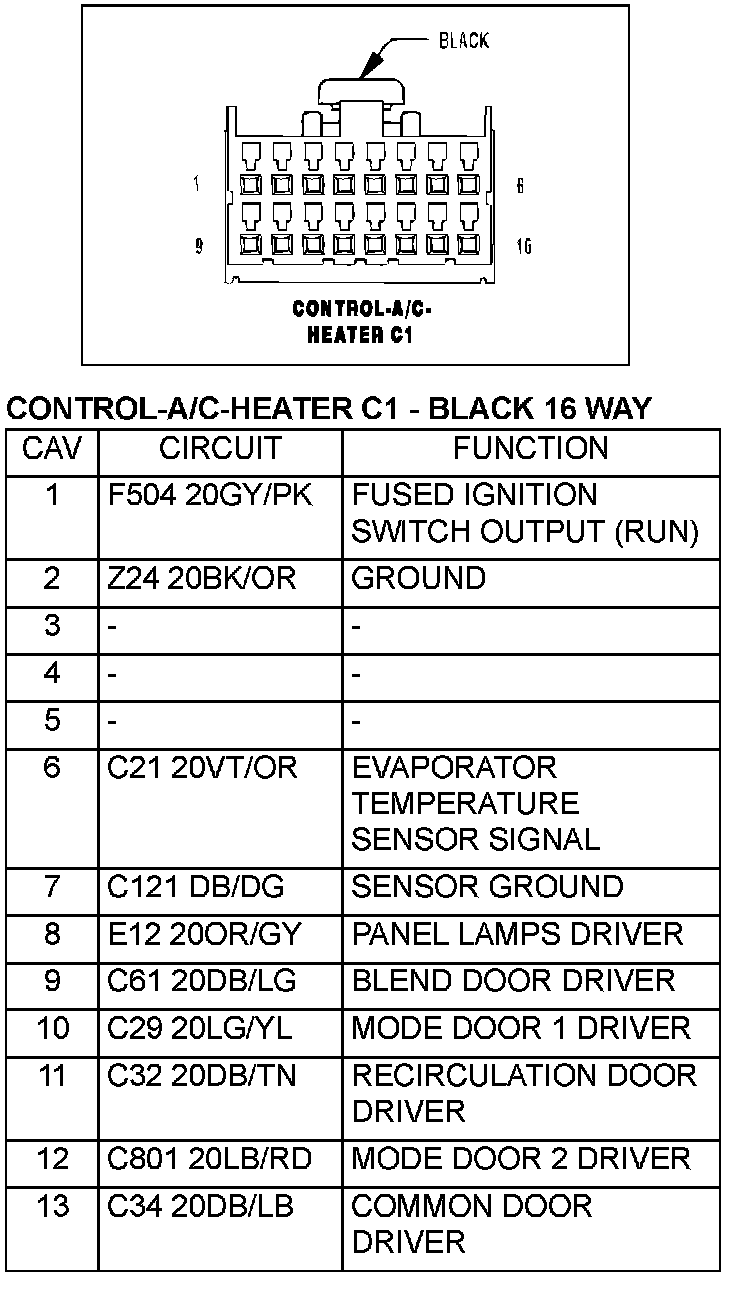

Control-A/C-Heater C1-Black 16 Way (Part 1):

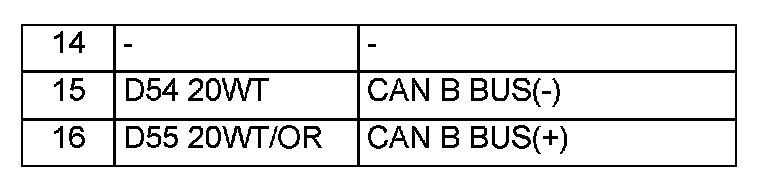

Control-A/C-Heater C1-Black 16 Way (Part 2):

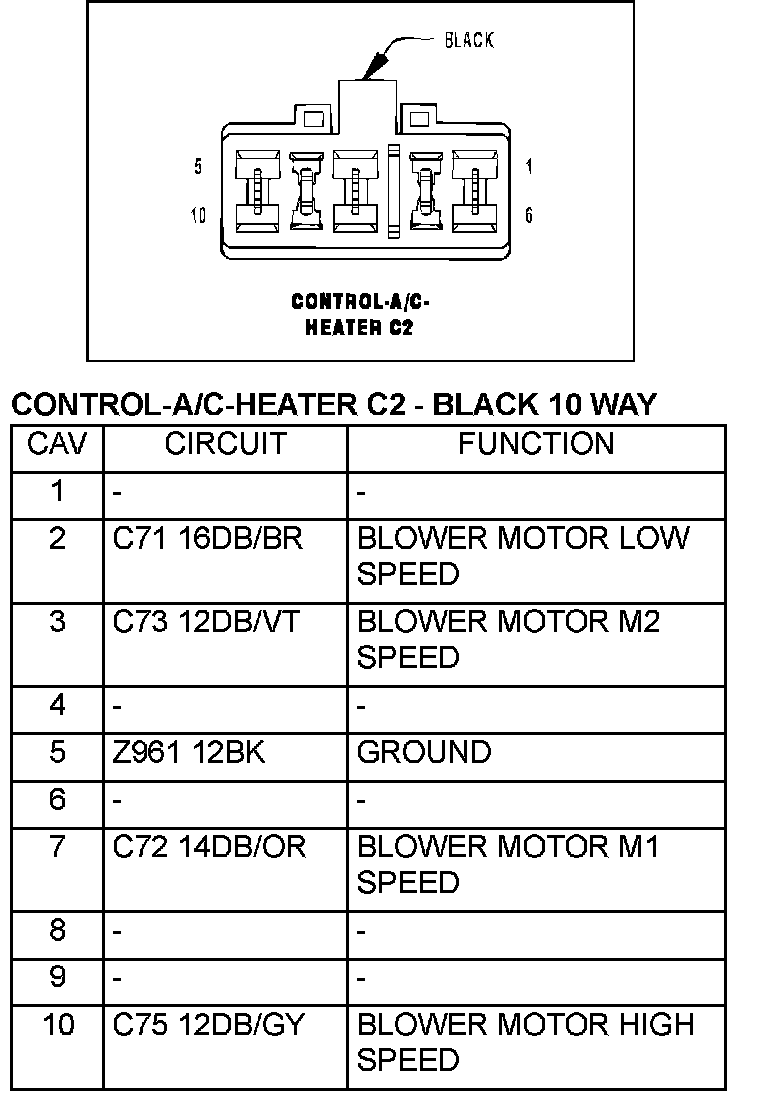

Control-A/C-Heater C2-Black 10 Way:
