Cruise Control Switch
Cruise Control Switch

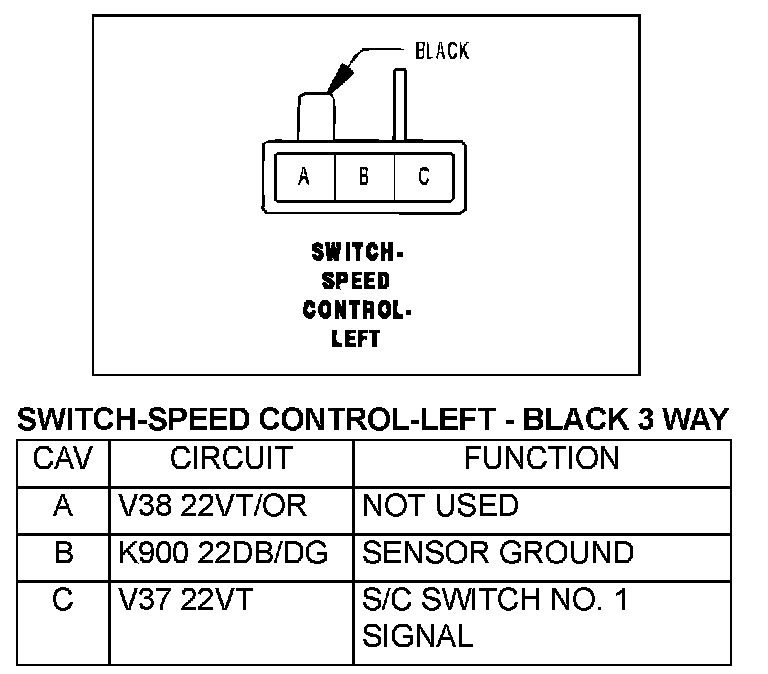

Switch-Speed Control-Left 3 Way:

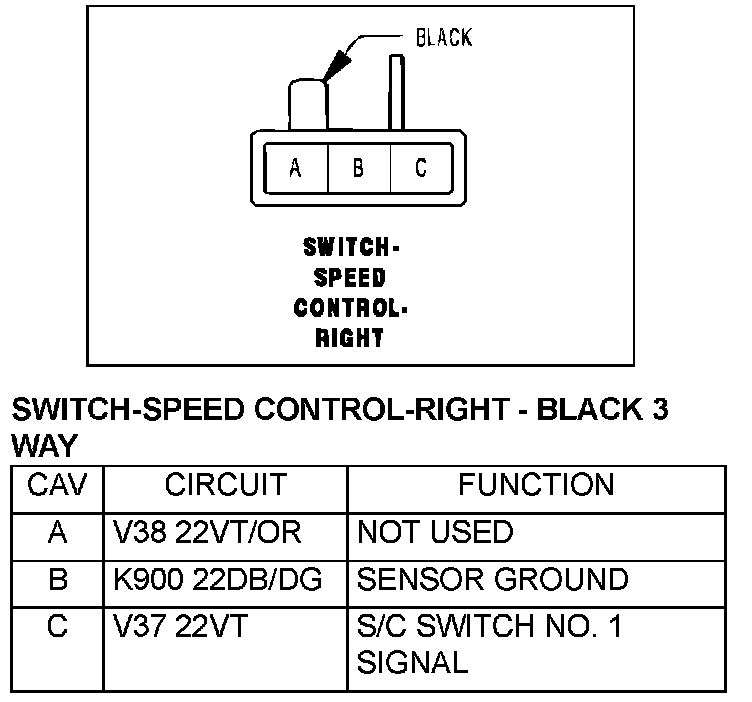

Switch-Speed Control-Right-Black 3 Way:
