Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

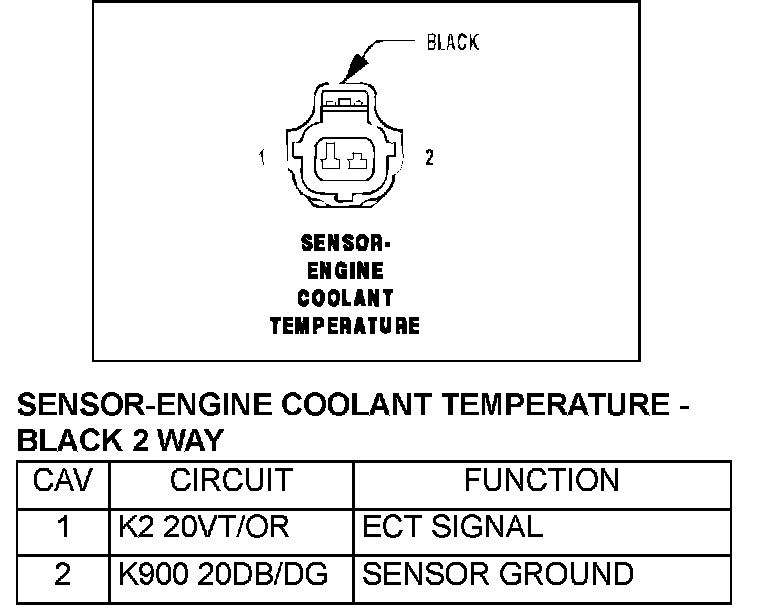

Sensor-Engine Coolant Temperature-Black 2 Way:
