Front Door Latch

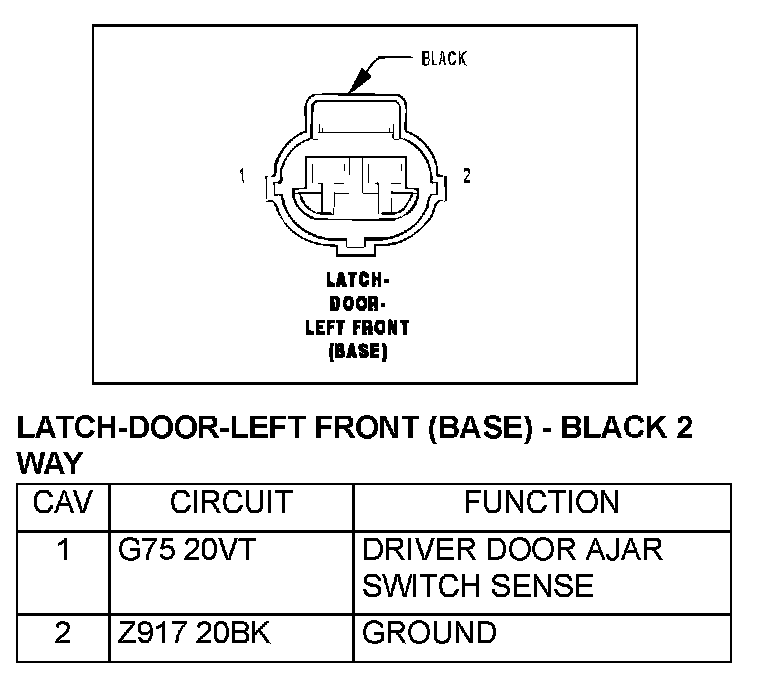

Latch-Door-Left Front (Base)-Black 2 Way:

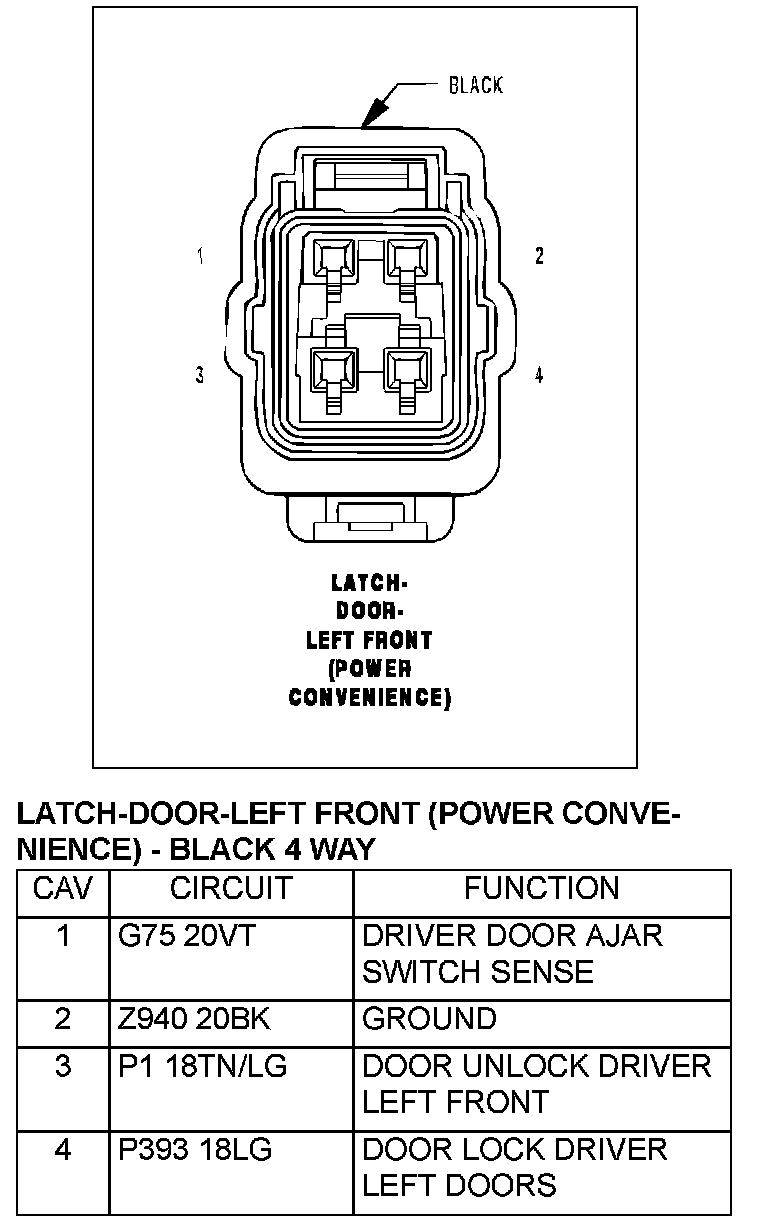

Latch-Door-Left Front (Power Convenience)-Black 4 Way:

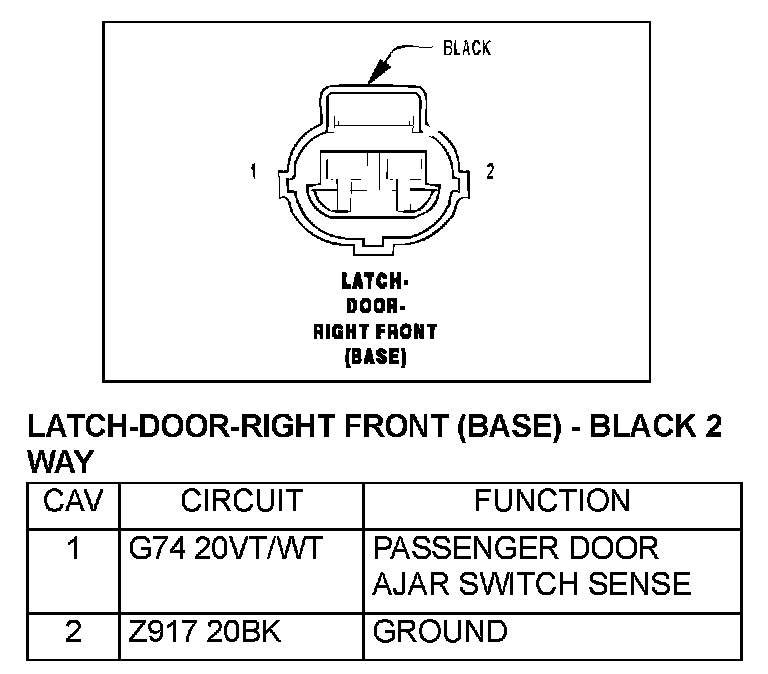

Latch-Door-Right Front (Base)-Black 2 Way:

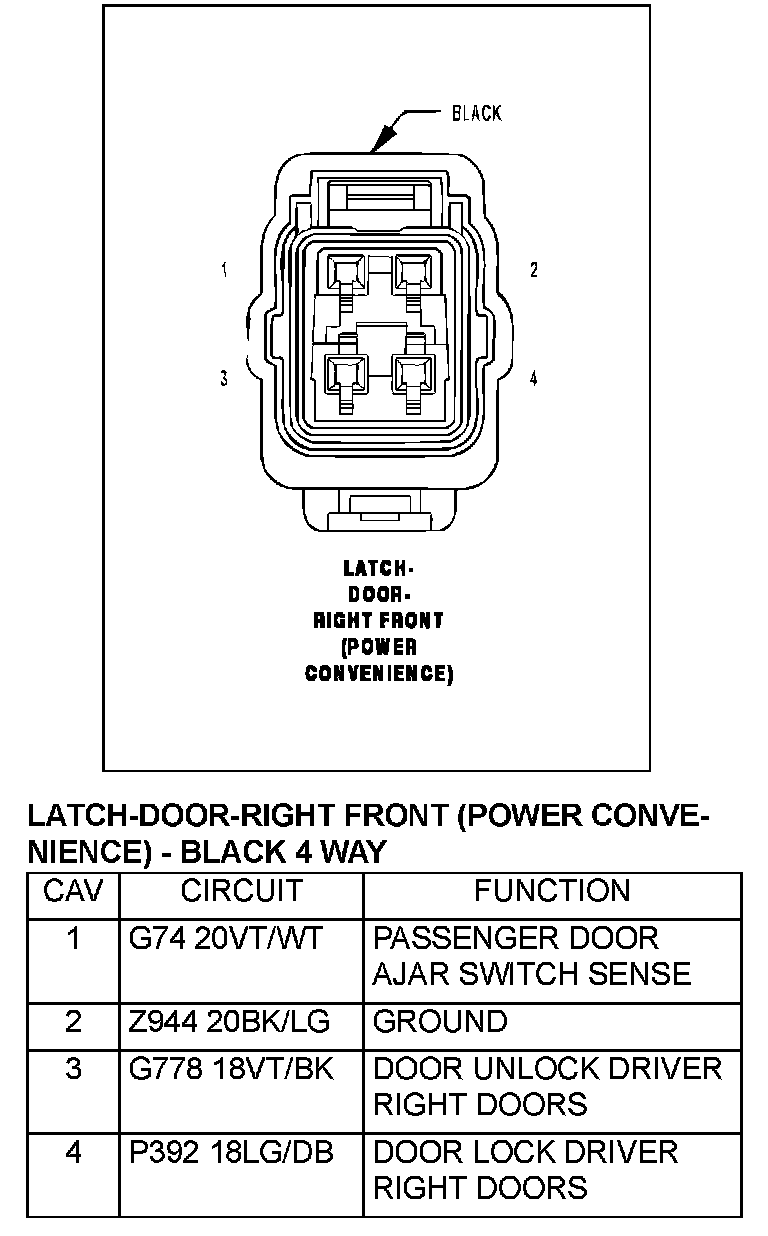

Latch-Door-Right Front (Power Convenience)-Black 4 Way:
