Instrument Cluster / Carrier
>>
Instrument Panel Control Module
Instrument Panel Control Module

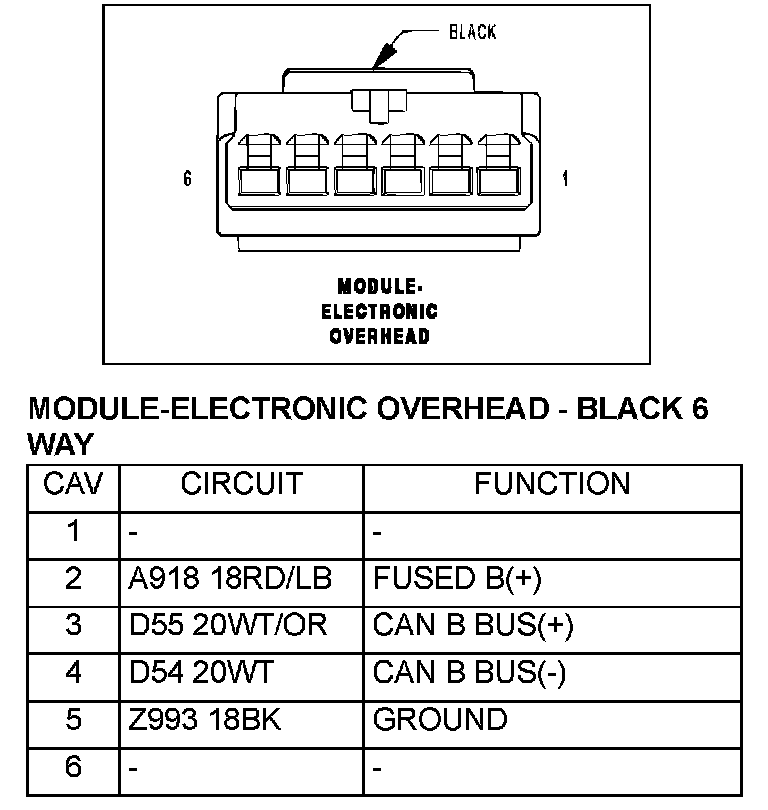

Module-Electronic Overhead-Black 6 Way:
