Keyless Entry Module

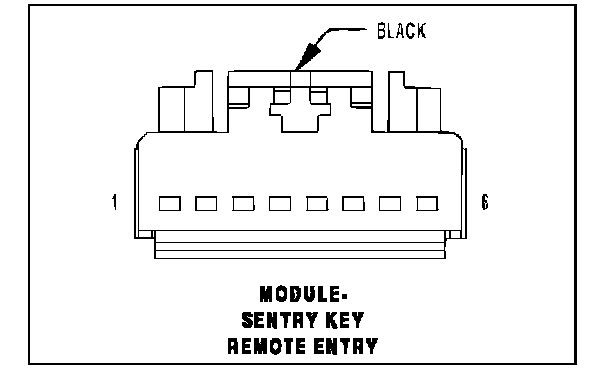

Module-Sentry Key Remote Entry-Black 8 Way (Part 1):

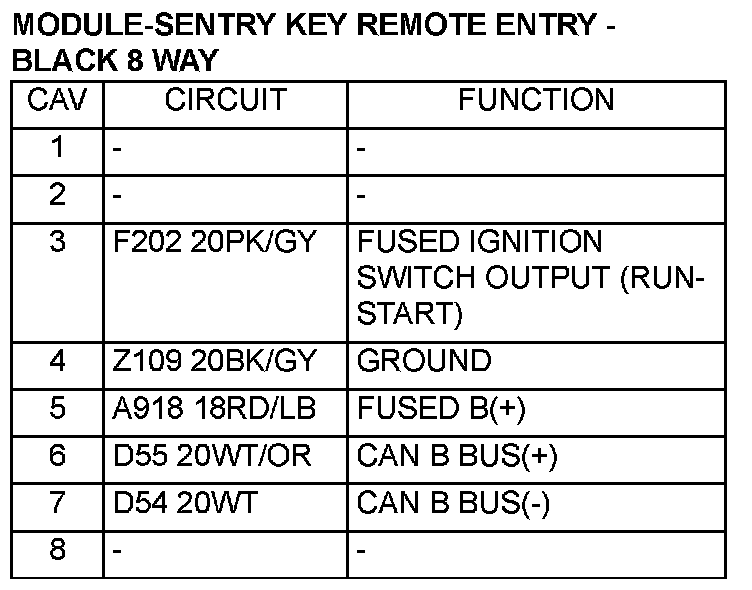

Module-Sentry Key Remote Entry-Black 8 Way (Part 2):
