Power Distribution Module

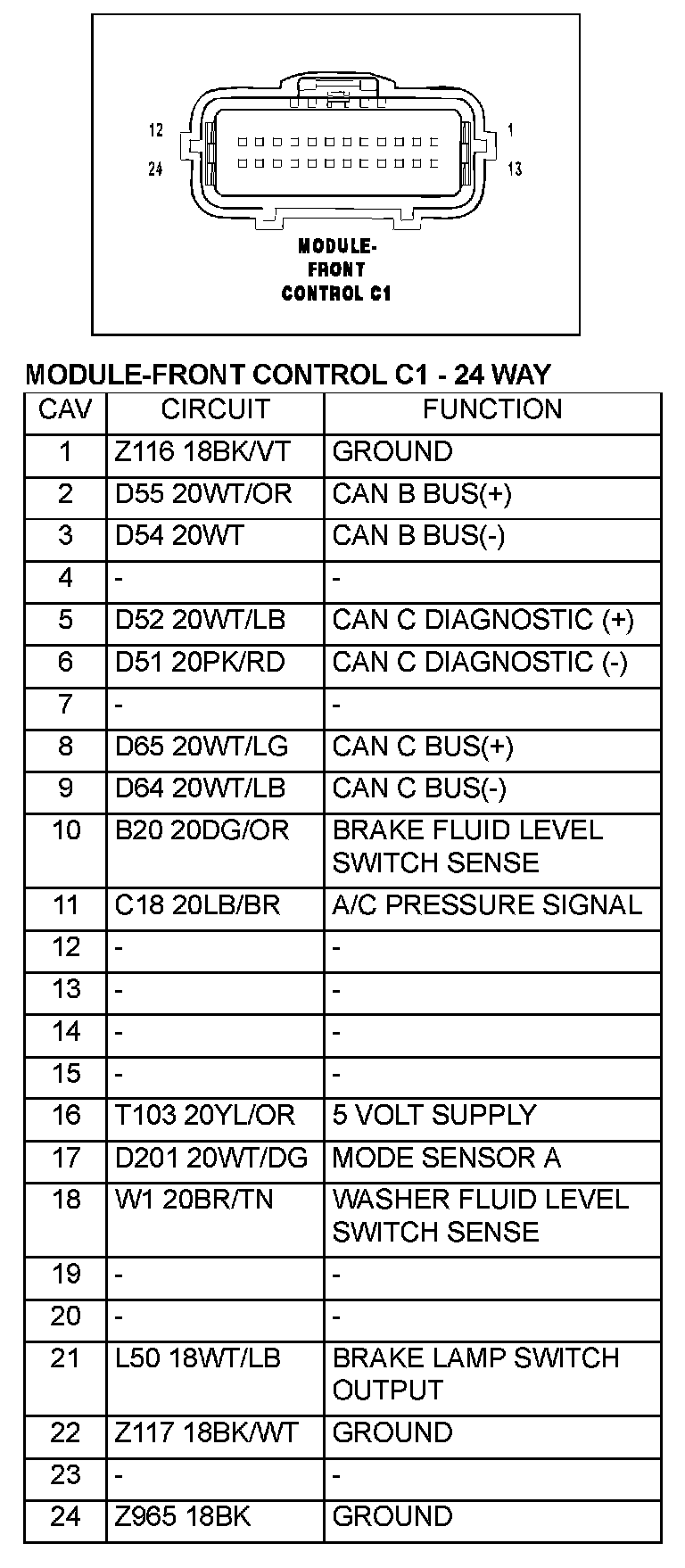

Module-Front Control C1-24 Way:

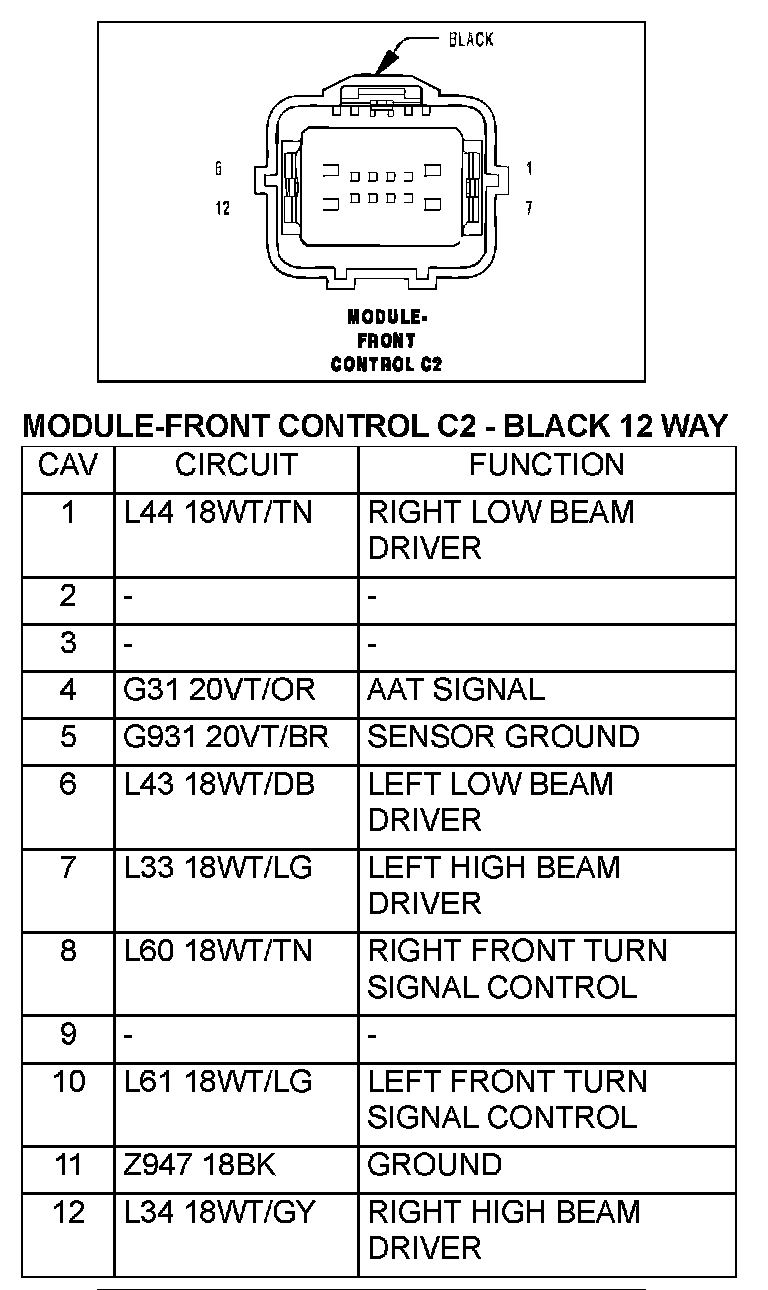

Module-Front Control C2-Black 12 Way:

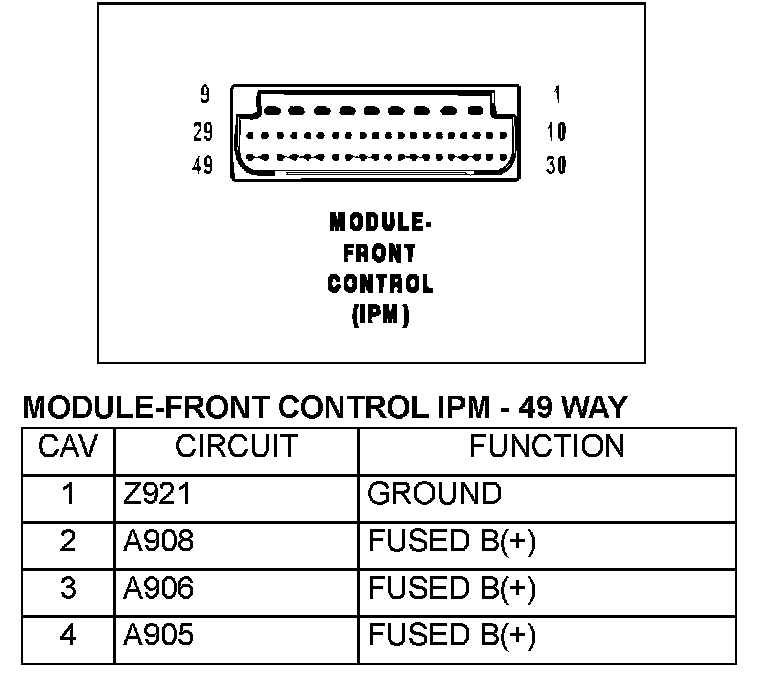

Module-Front Control IPM 49 Way (Part 1):

Module-Front Control IPM 49 Way (Part 2):

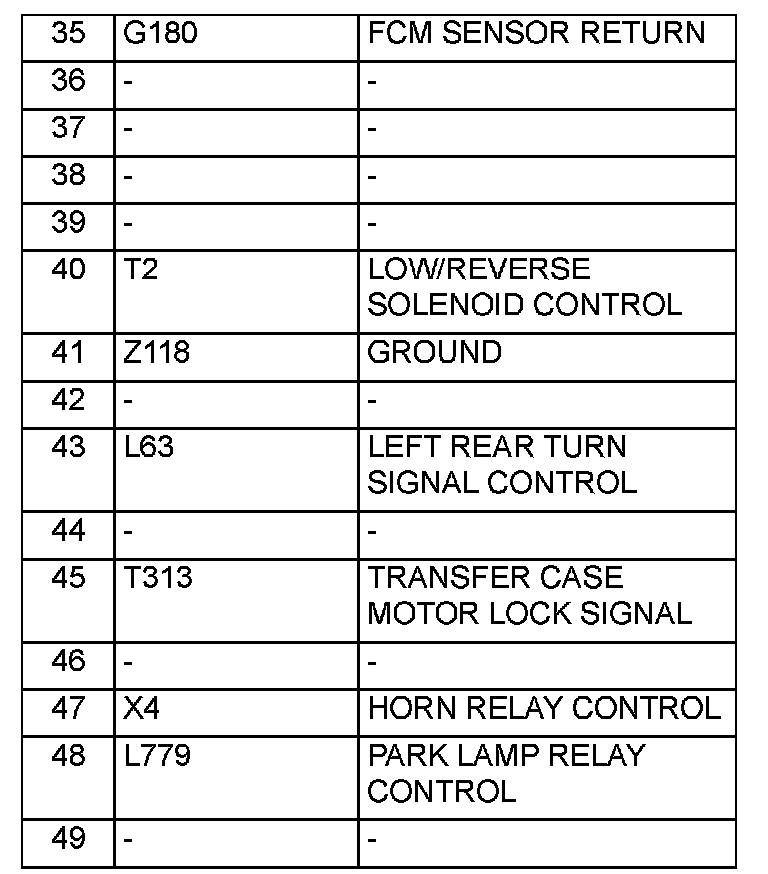

Module-Front Control IPM 49 Way (Part 3):

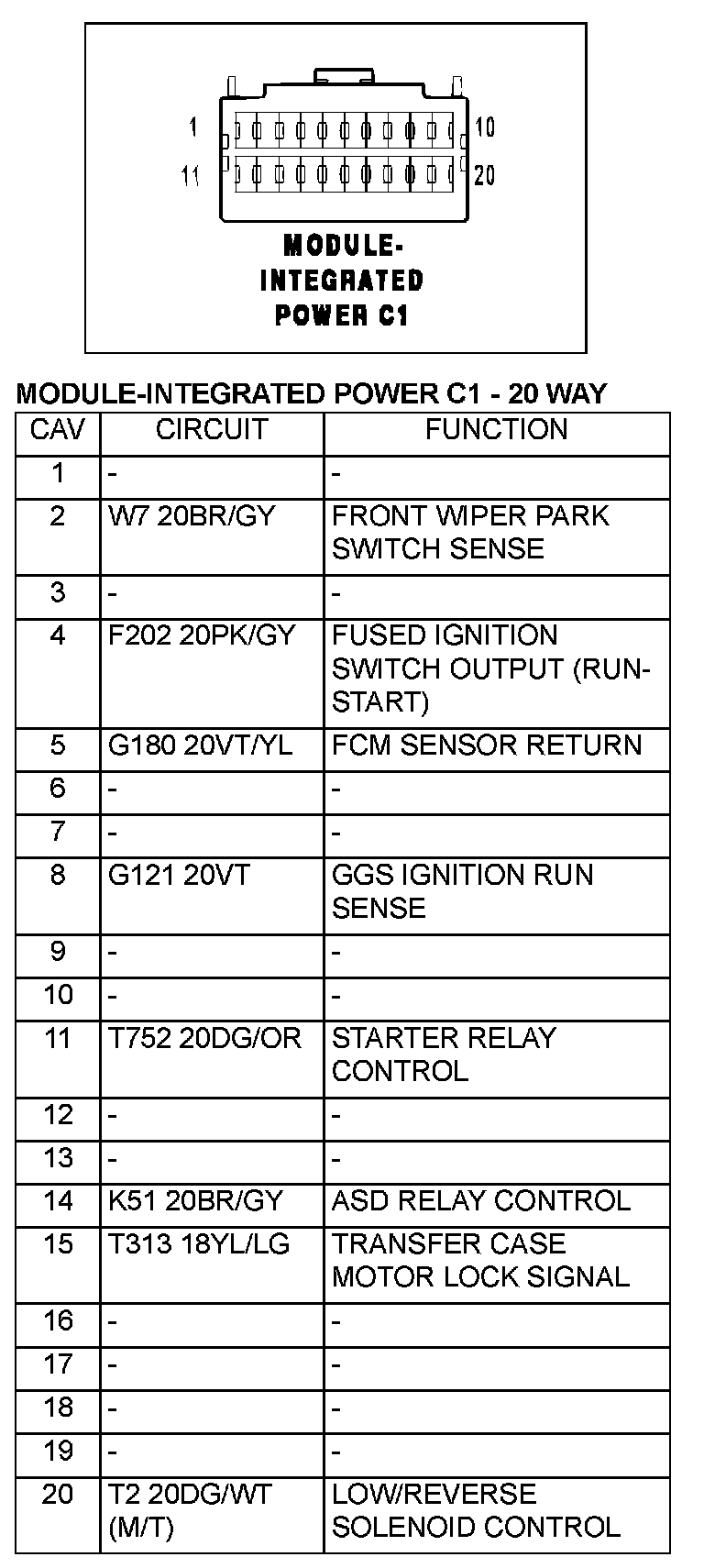

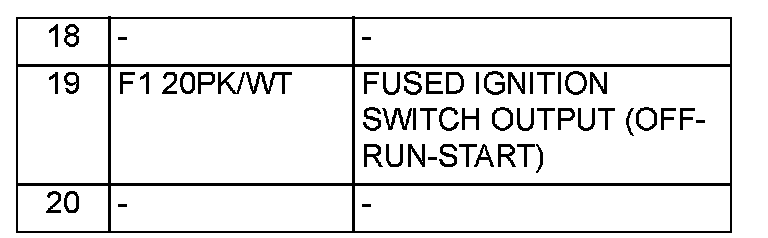

Module-Integrated Power C1-20 Way:

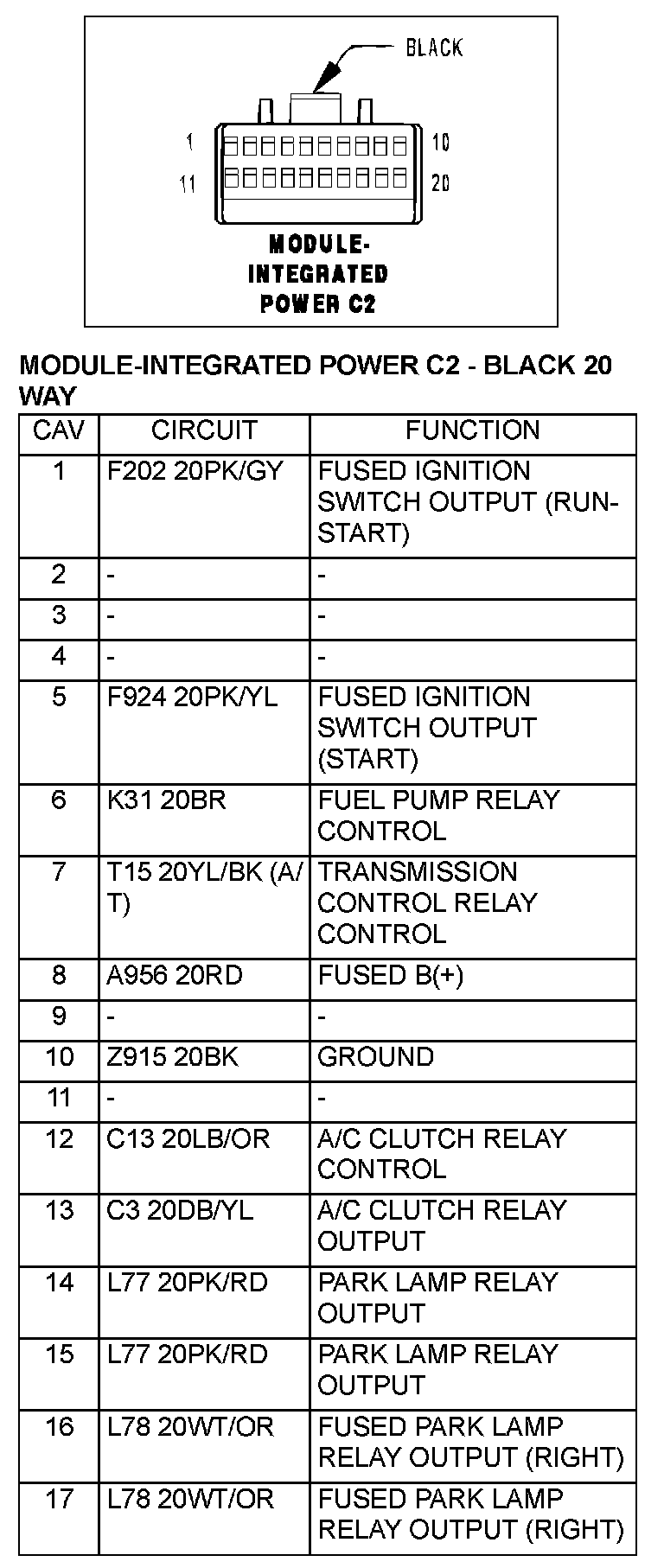

Module-Integrated Power C2-Black 20 Way (Part 1):

Module-Integrated Power C2-Black 20 Way (Part 2):

Module-Integrated Power C3-Black 40 Way (Part 1):

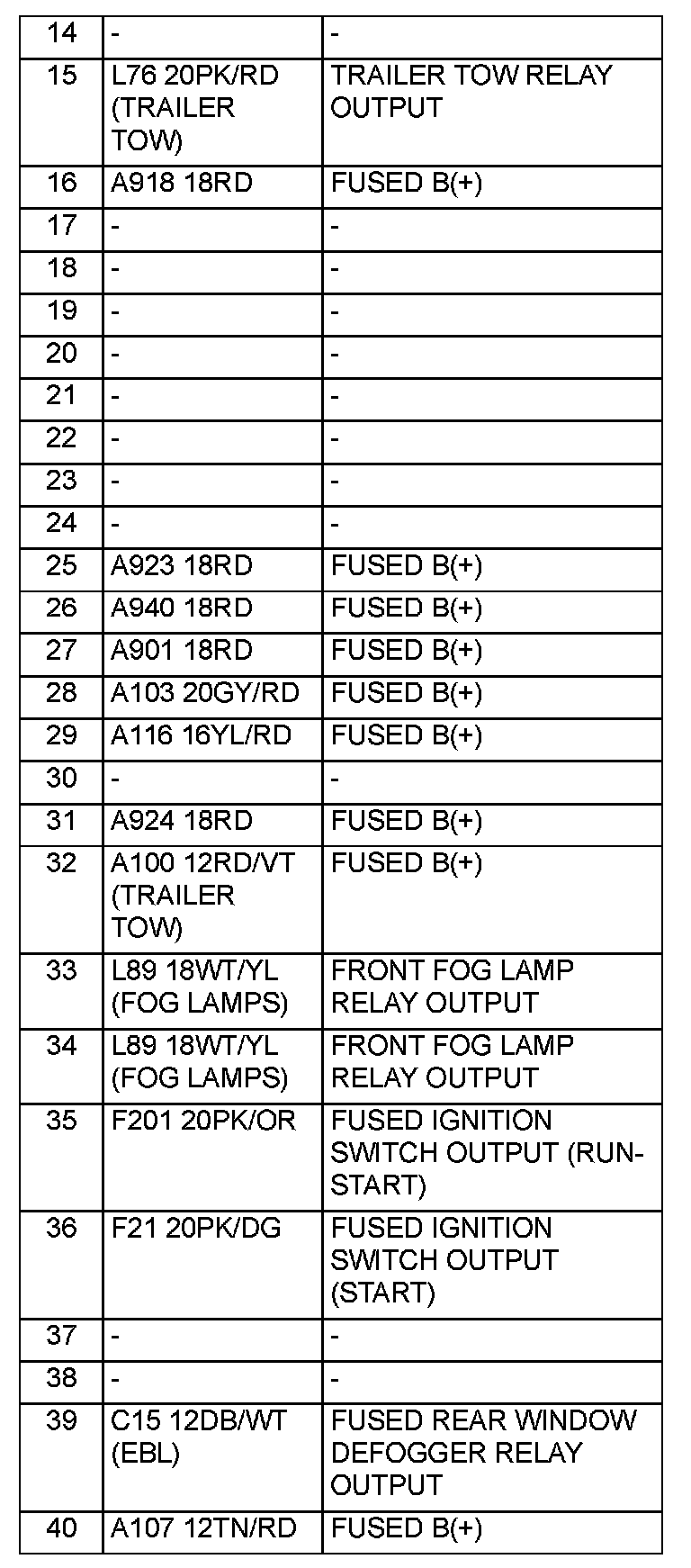

Module-Integrated Power C3-Black 40 Way (Part 2):

Module-Integrated Power C4-Gray 40 Way (Part 1):

Module-Integrated Power C4-Gray 40 Way (Part 2):

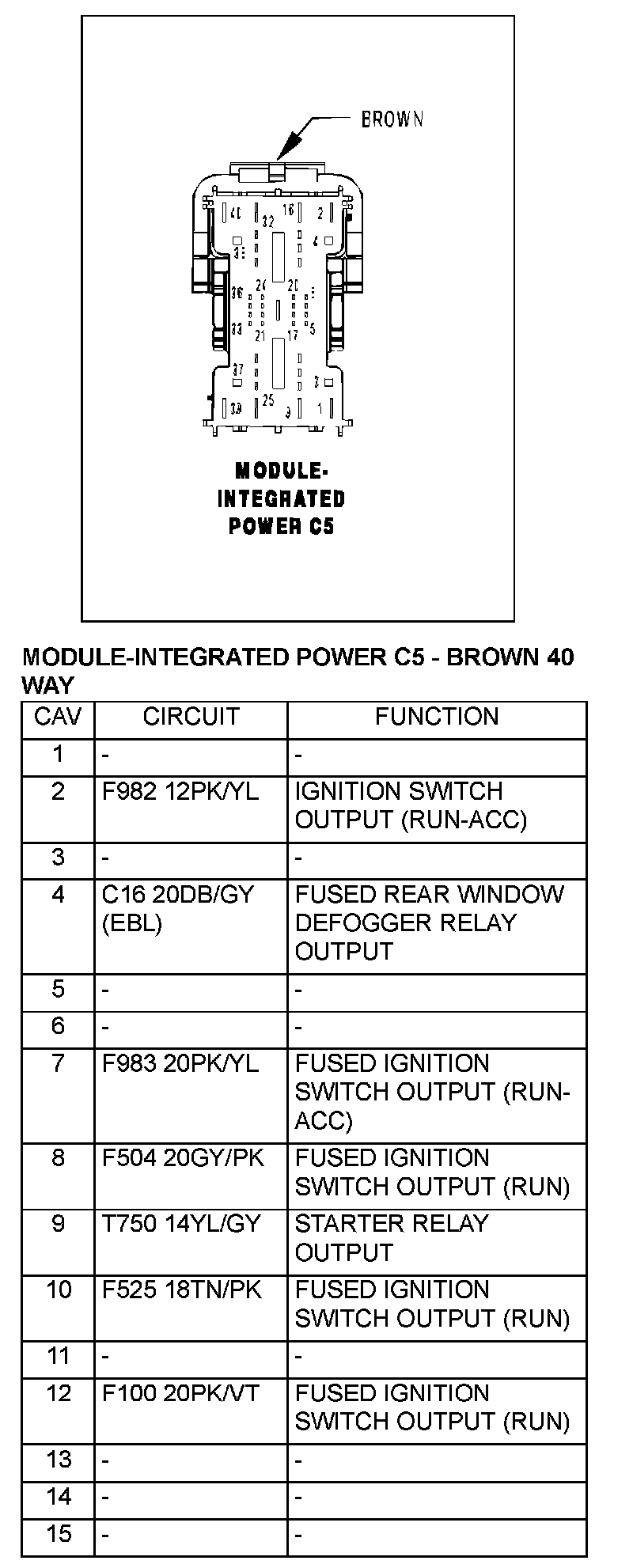

Module-Integrated Power C5-Brown 40 Way (Part 1):

Module-Integrated Power C5-Brown 40 Way (Part 2):

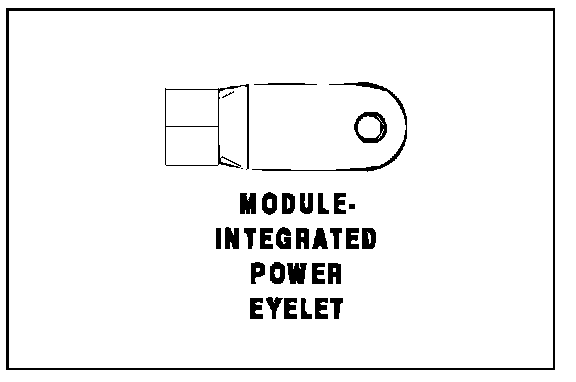

Module-Integrated Power Eyelet-1 Way (Part 1):

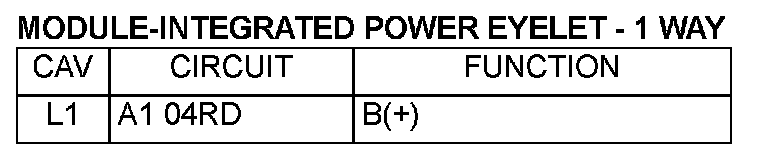

Module-Integrated Power Eyelet-1 Way (Part 2):
