Seat Temperature Control Module
Seat Temperature Control Module

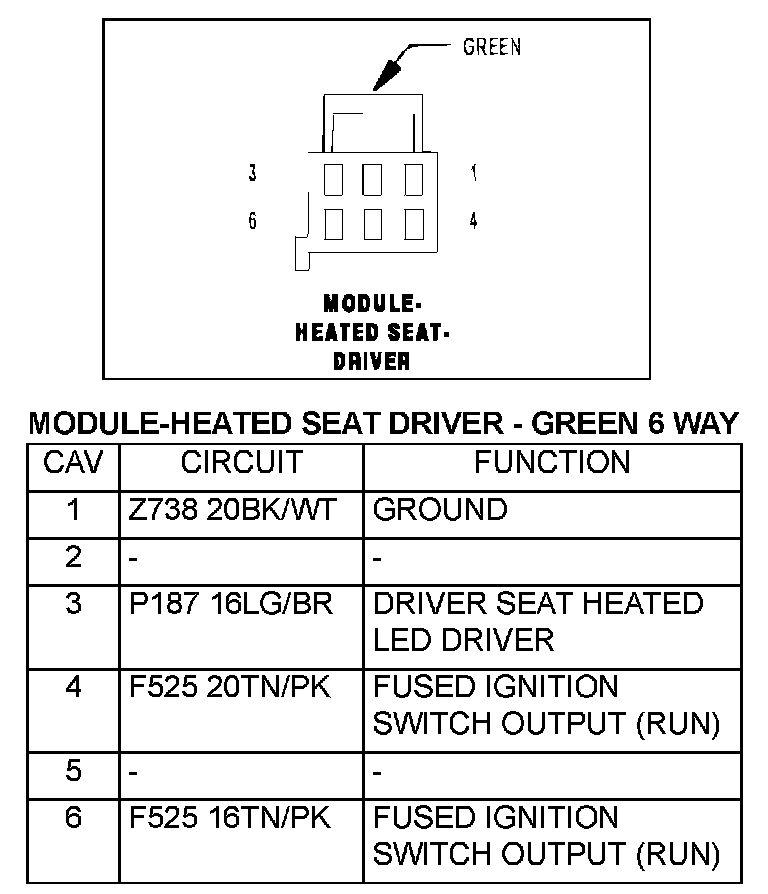

Module-Heated Seat Driver-Green 6 Way:

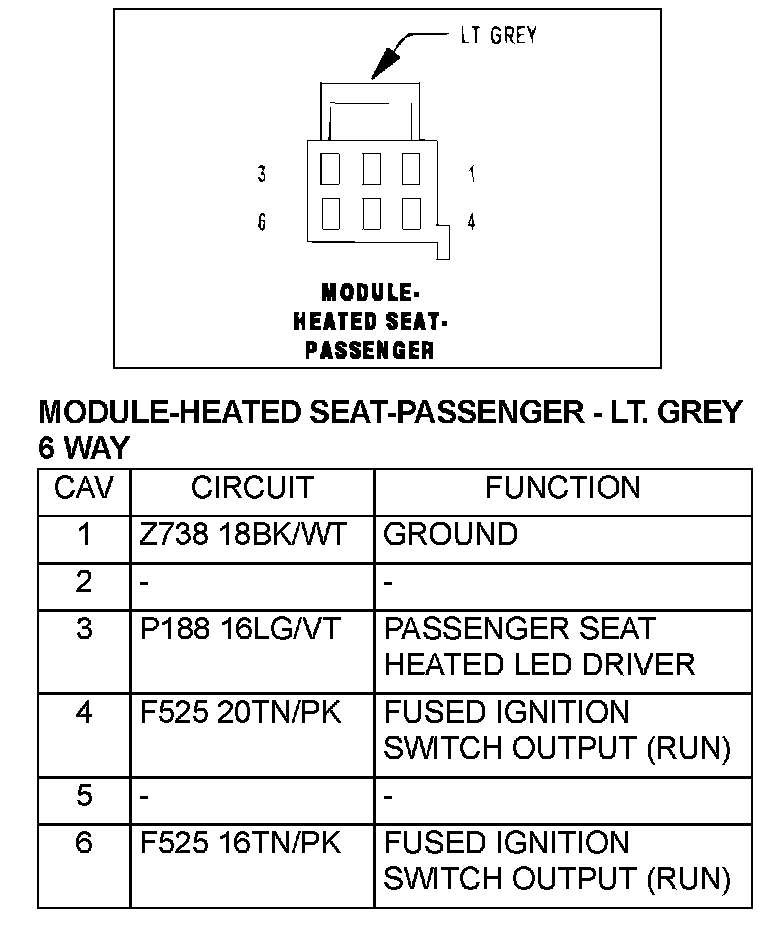

Module-Heated Seat-Passenger-LT Grey 6 Way:
