Home
>>
Mitsubishi
>>
2006
>>
Raider V8-4.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
Windshield Washer Pump

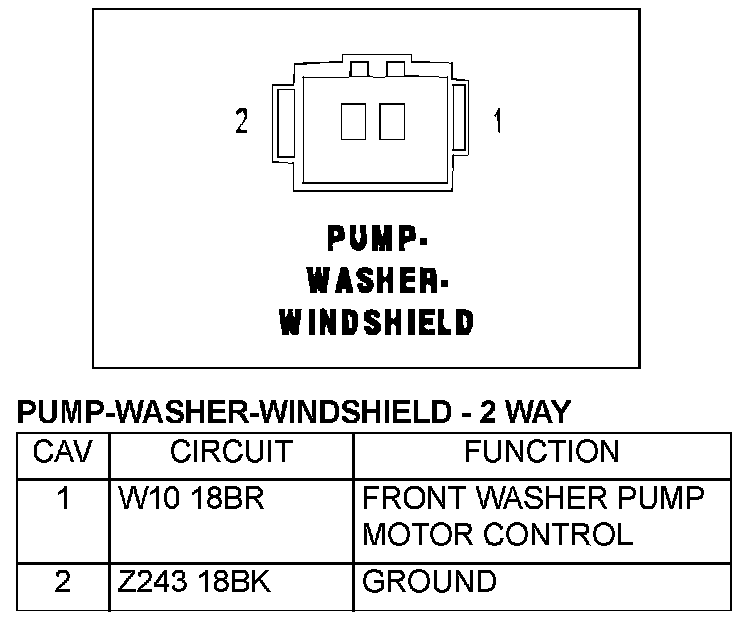

Pump-Washer-Windshield-2 Way:
