Crankshaft Position Sensor: Diagrams

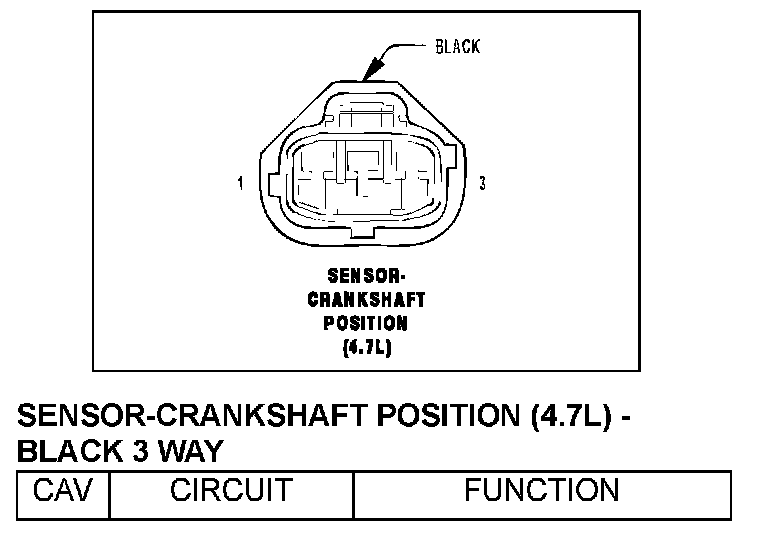

Sensor-Crankshaft Position-Black 3 Way (Part 1):

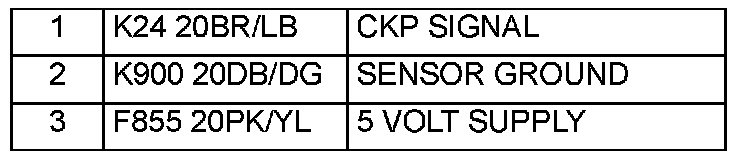

Sensor-Crankshaft Position-Black 3 Way (Part 2):
