Connector Views

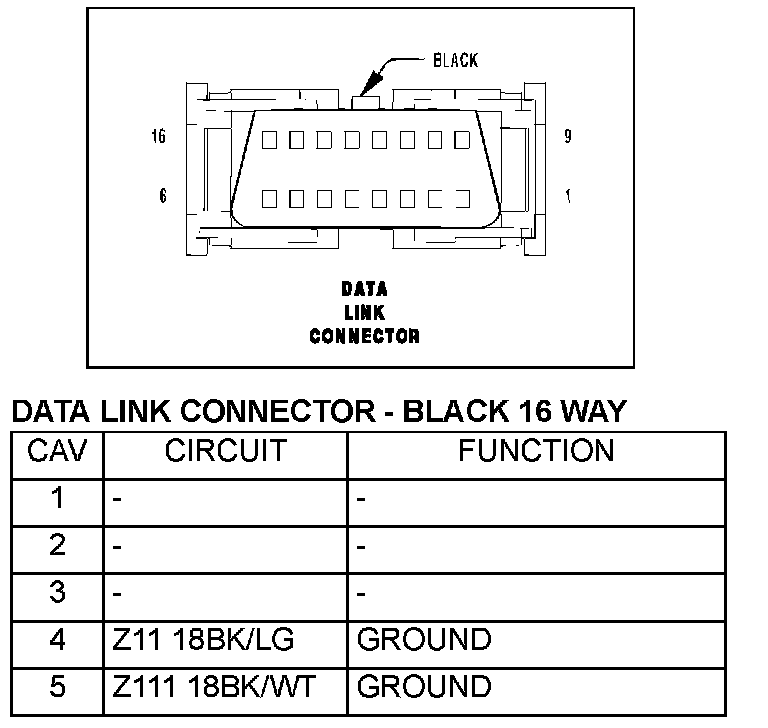

Data Link Connector-Black 16 Way (Part 1):

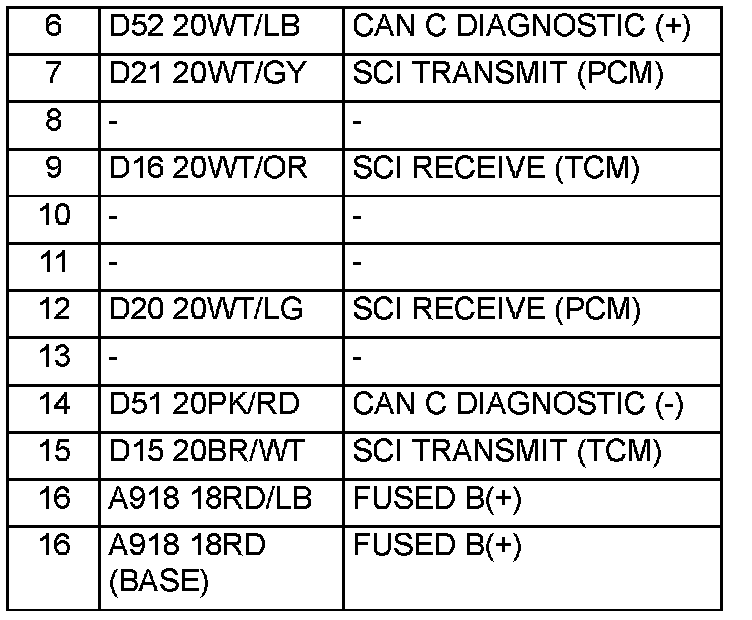

Data Link Connector-Black 16 Way (Part 2):
