Oxygen Sensor: Diagrams

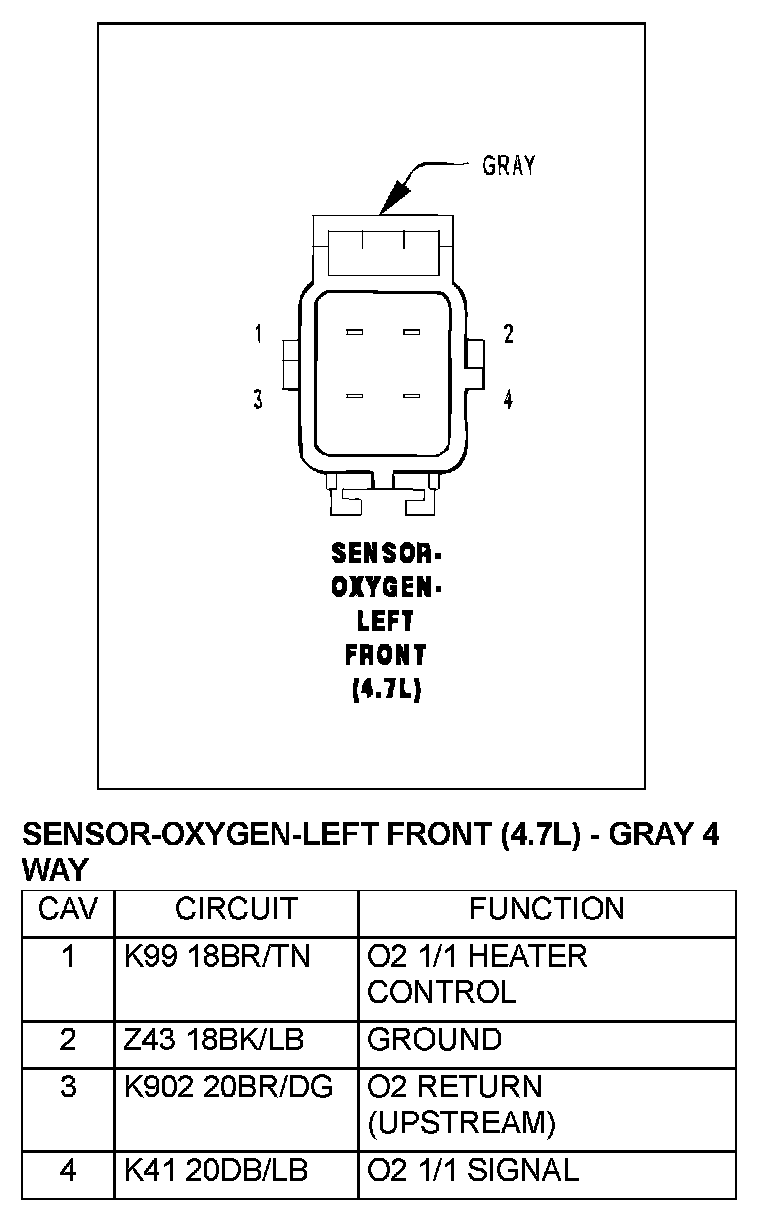

Sensor-Oxygen-Left Front (4.7L)-Gray 4 Way:

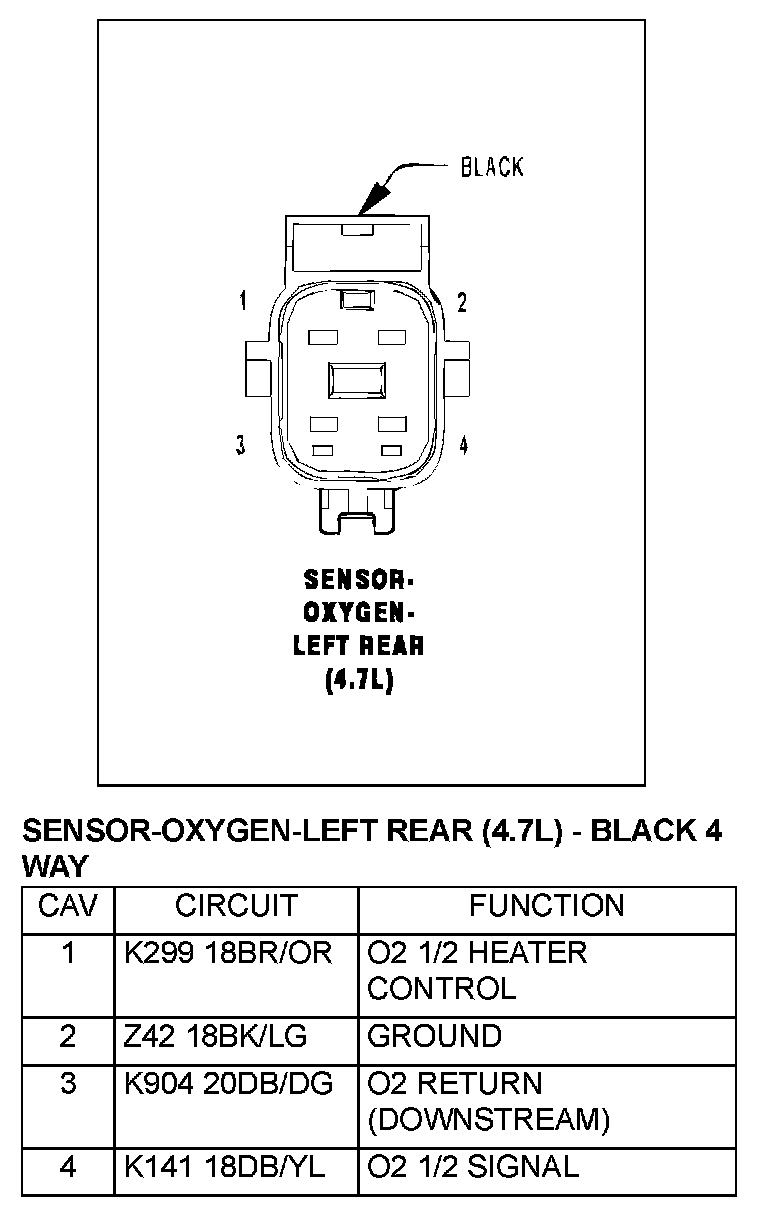

Sensor-Oxygen-Left Rear(4.7L)-Black 4 Way:

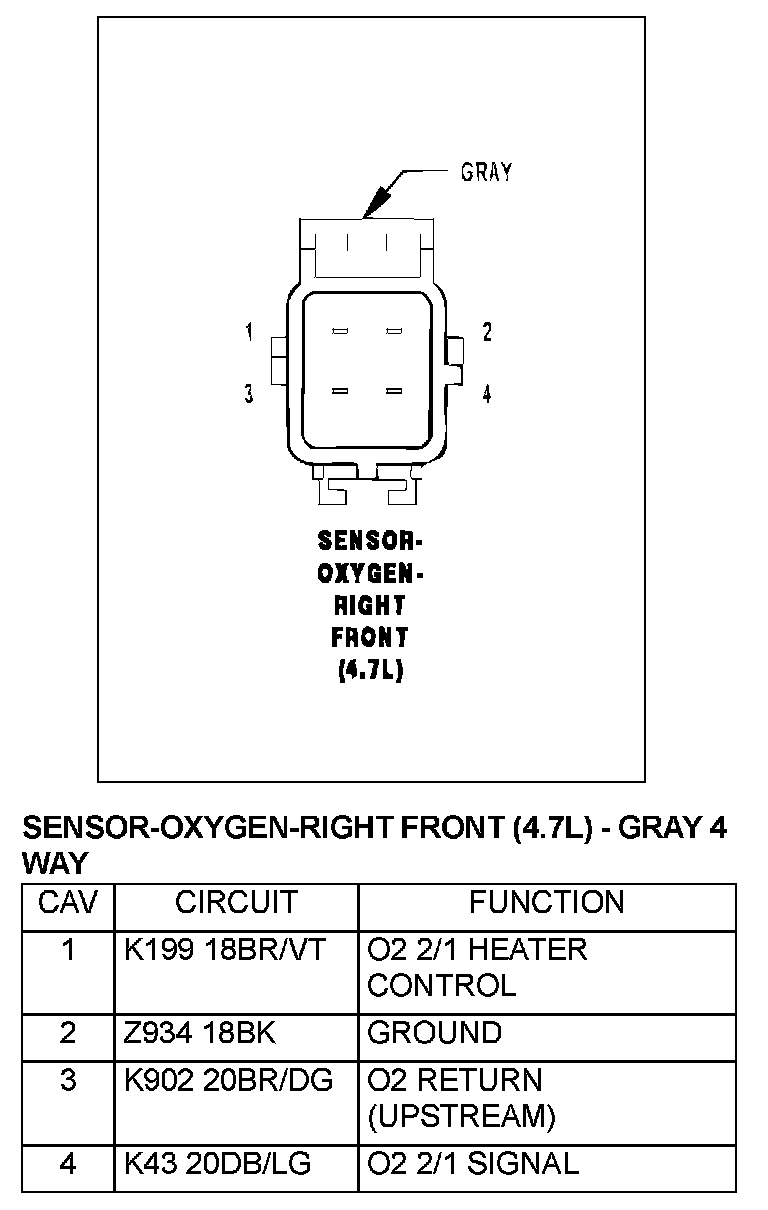

Sensor-Oxygen-Right Front (4.7L)-Gray 4 Way:

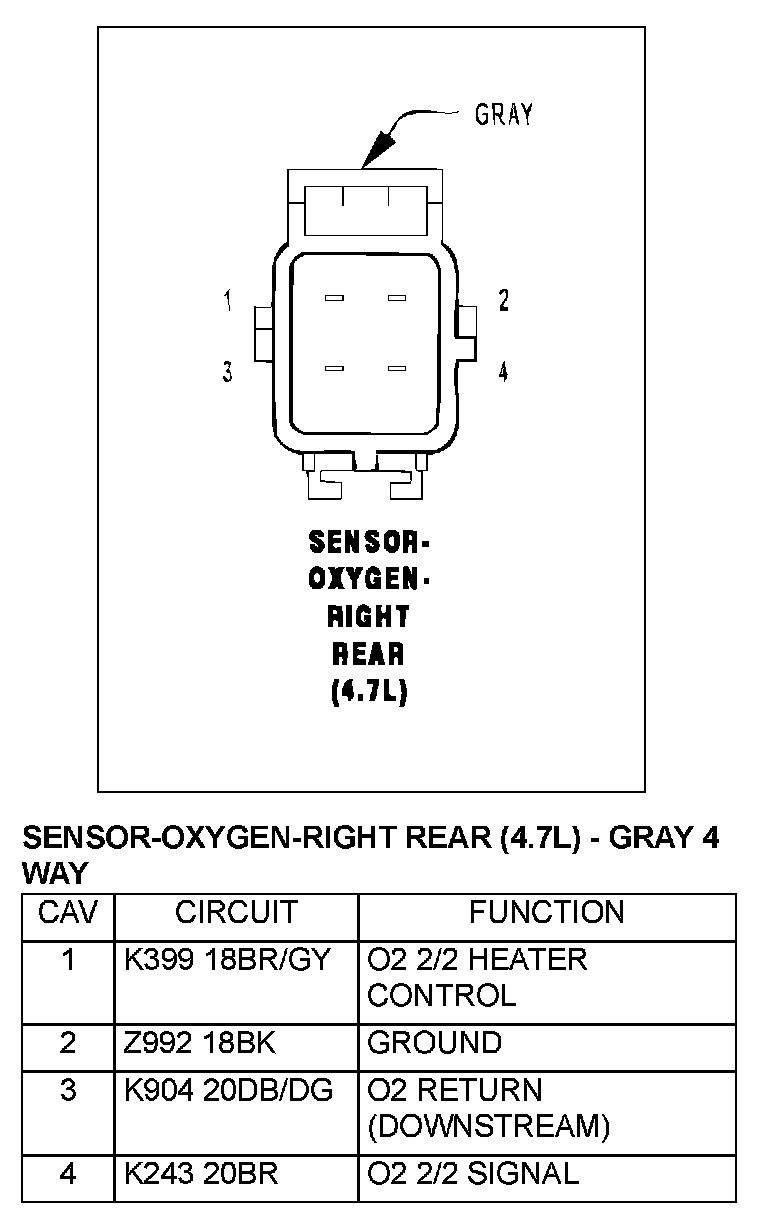

Sensor-Oxygen Right Rear(4.7L)-Gray 4 Way:
