45RFE/545RFE

AUTOMATIC TRANSMISSION <545RFE> - SPECIFICATIONS

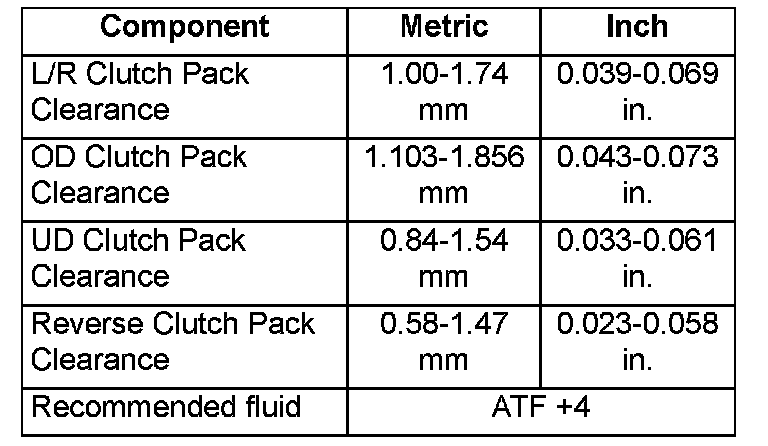

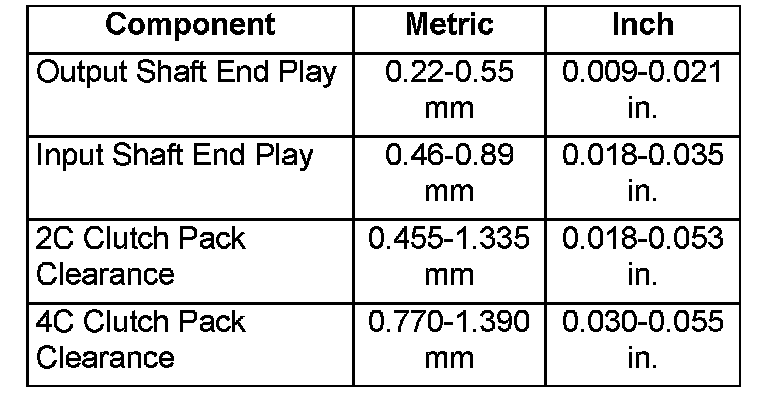

GENERAL:




GENERAL:

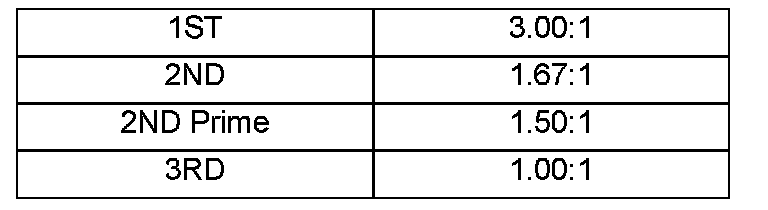

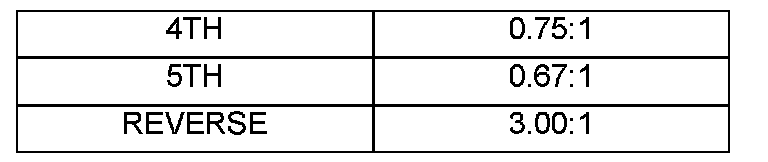

GEAR RATIOS:




GEAR RATIOS:




TORQUE SPECIFICATIONS:
