Home >> Mitsubishi >> 2006 >> Raider V8-4.7L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Torque Chart

Torque Chart

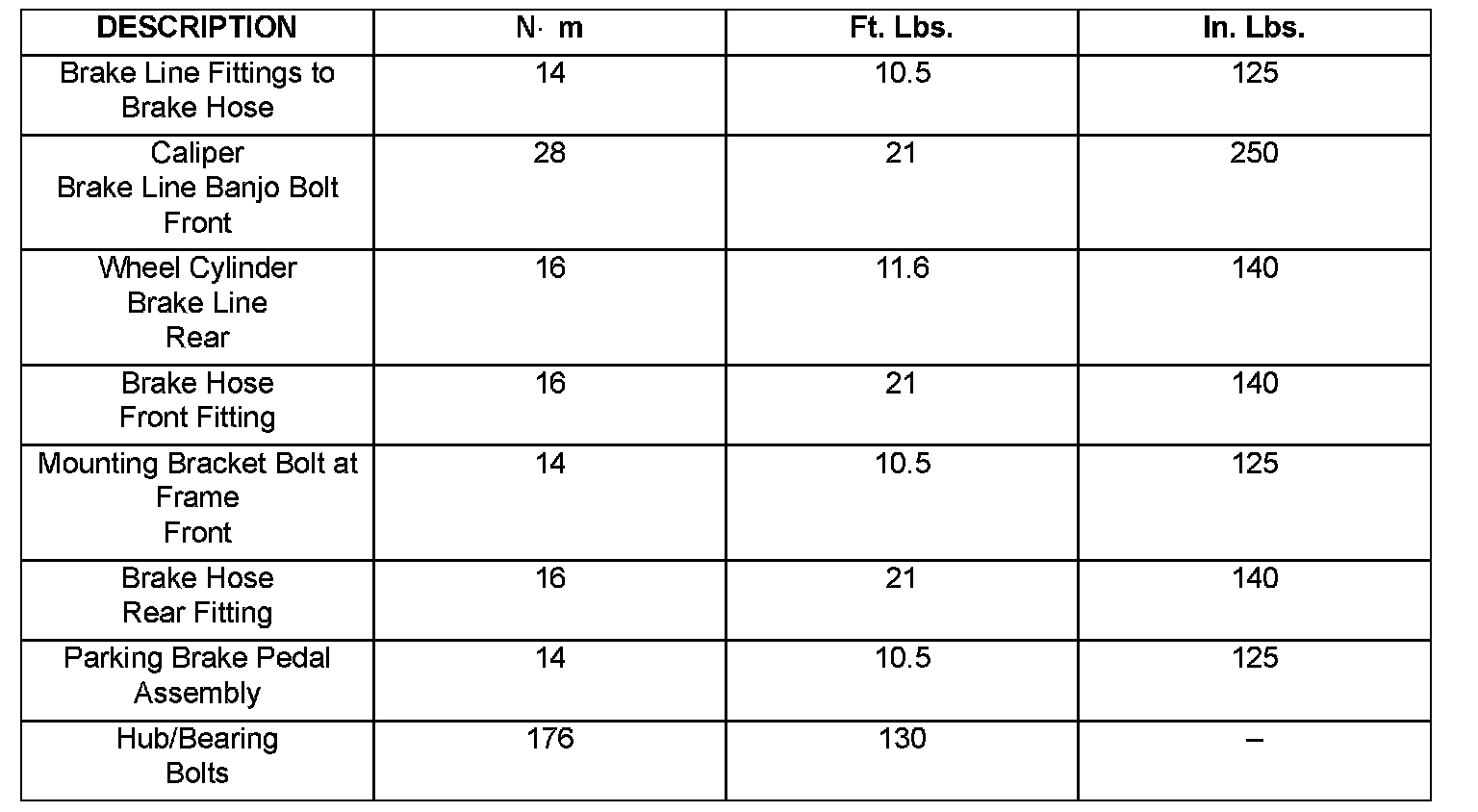

TORQUE SPECIFICATIONS:

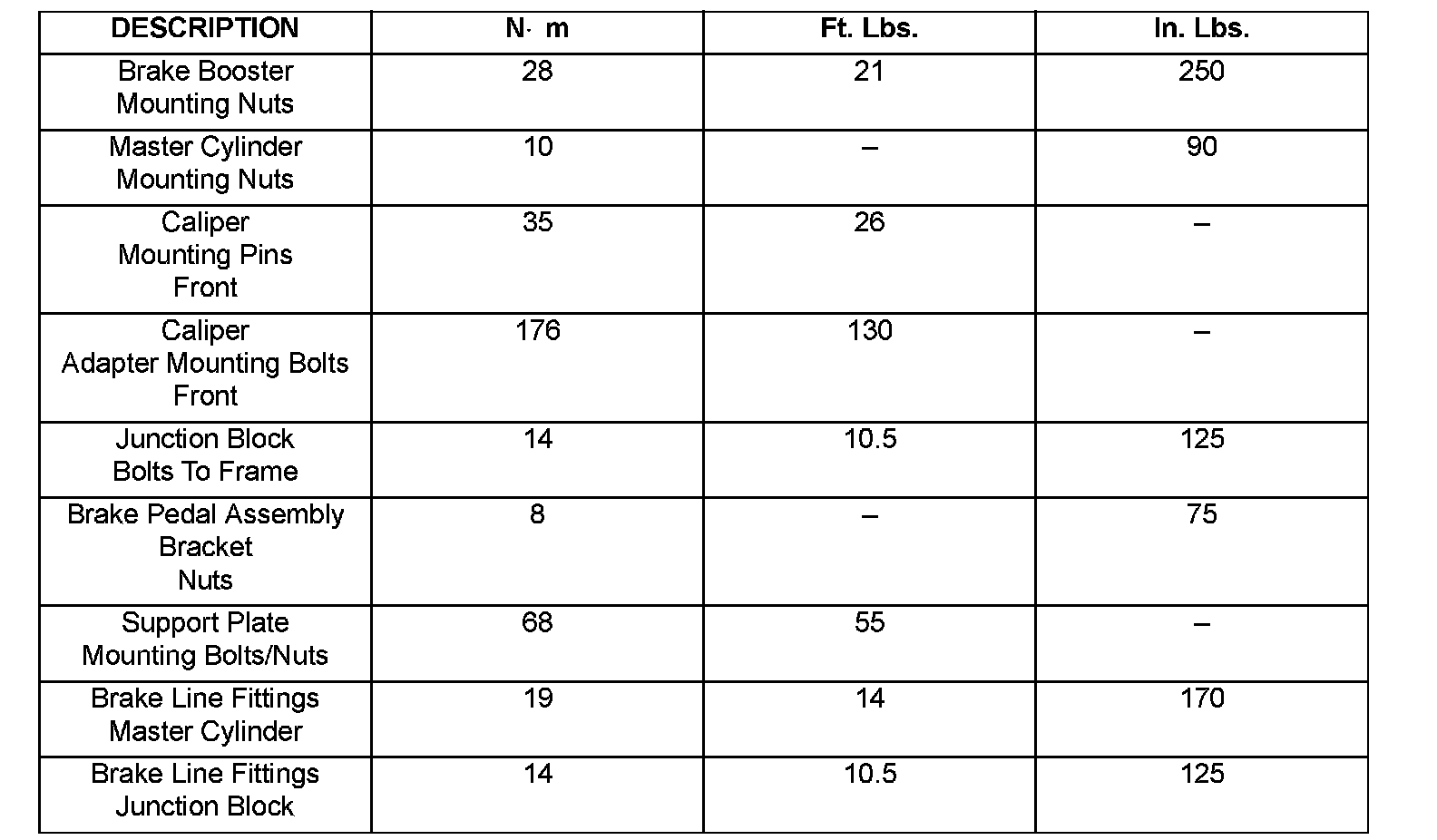

TORQUE SPECIFICATIONS:
