Operation CHARM: Car repair manuals for everyone.
Home >> Mitsubishi >> 2006 >> Raider V8-4.7L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Fuel Delivery and Air Induction >> System Specifications

System Specifications

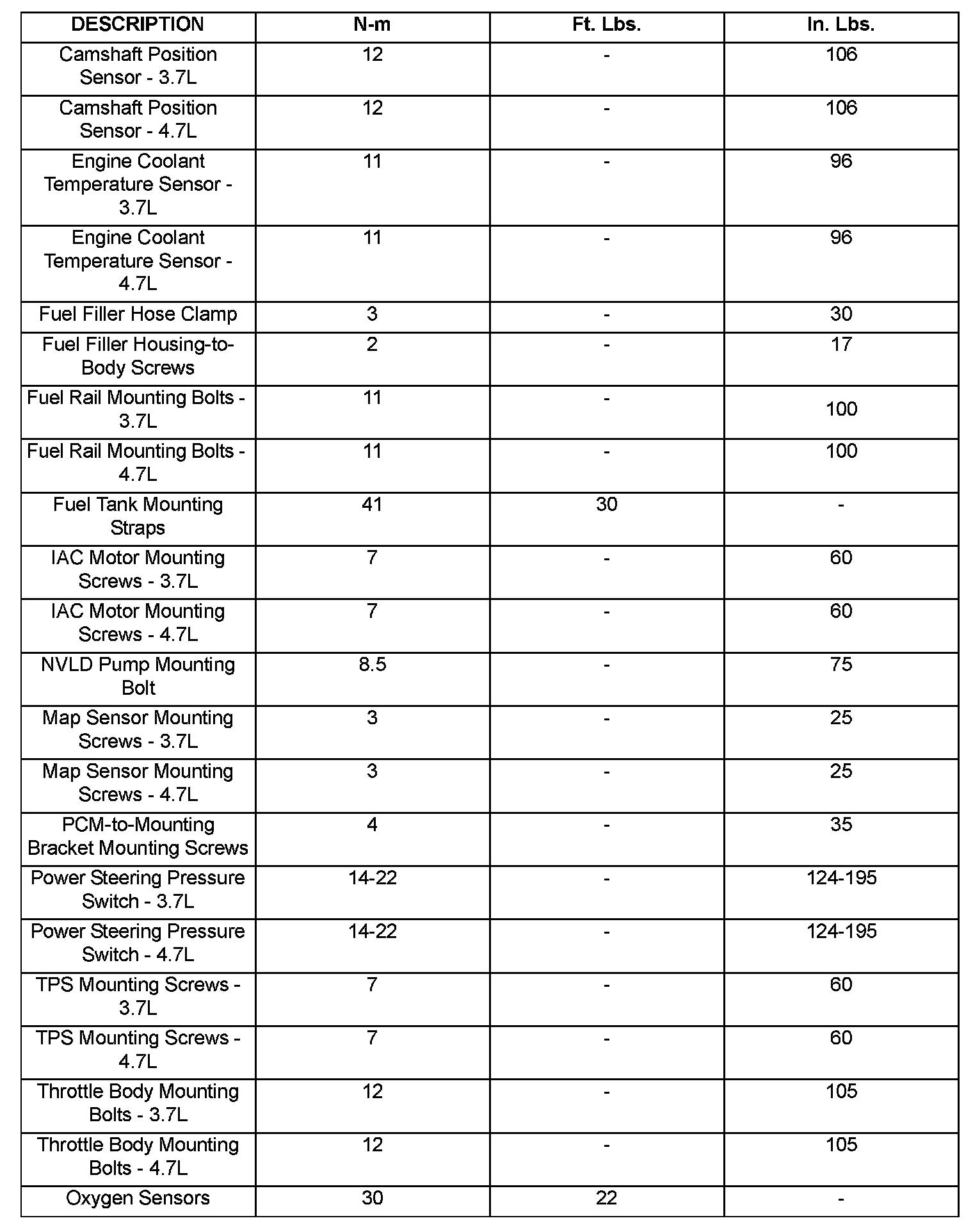

Torque - Fuel System:

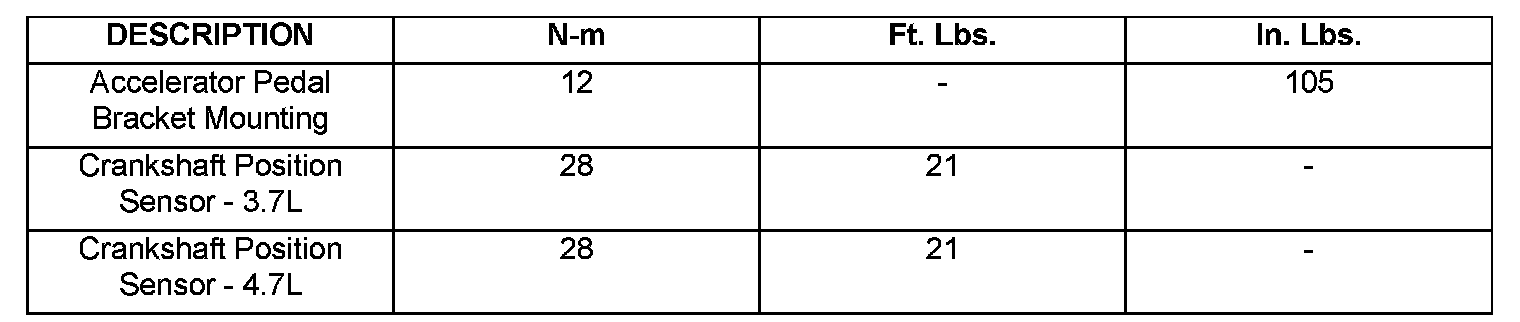

Torque - Fuel System Part 2:
