Engine - Corrected Valve Stem Projection Specs.
No.: TSB-06-11-006DATE: December, 2006
MODEL: See Below
SUBJECT:
CORRECTED VALVE STEM PROJECTION SPECIFICATION
(6G75) - SERVICE MANUAL REVISION
TSB Revision: TSB-06-11-006
PURPOSE
This bulletin revises the valve stem projection specifications for the affected vehicles with the 6-cylinder 6G75 engine.
AFFECTED VEHICLES
2004-07 Galant V6
2004-07 Endeavor
2006-07 Eclipse V6
2007 Eclipse Spyder V6
AFFECTED SERVICE MANUALS
SERVICE MANUAL REVISIONS
Attachment 2
Attachment 3
Attachment 4
Attachment 5
Attachment 6
Attachment 7
Attachment 8
Attachment 9
Attachment 10
Attachment 11
Attachment 12
Attachment 13
Attachment 14
Attachment 15
Attachment 16

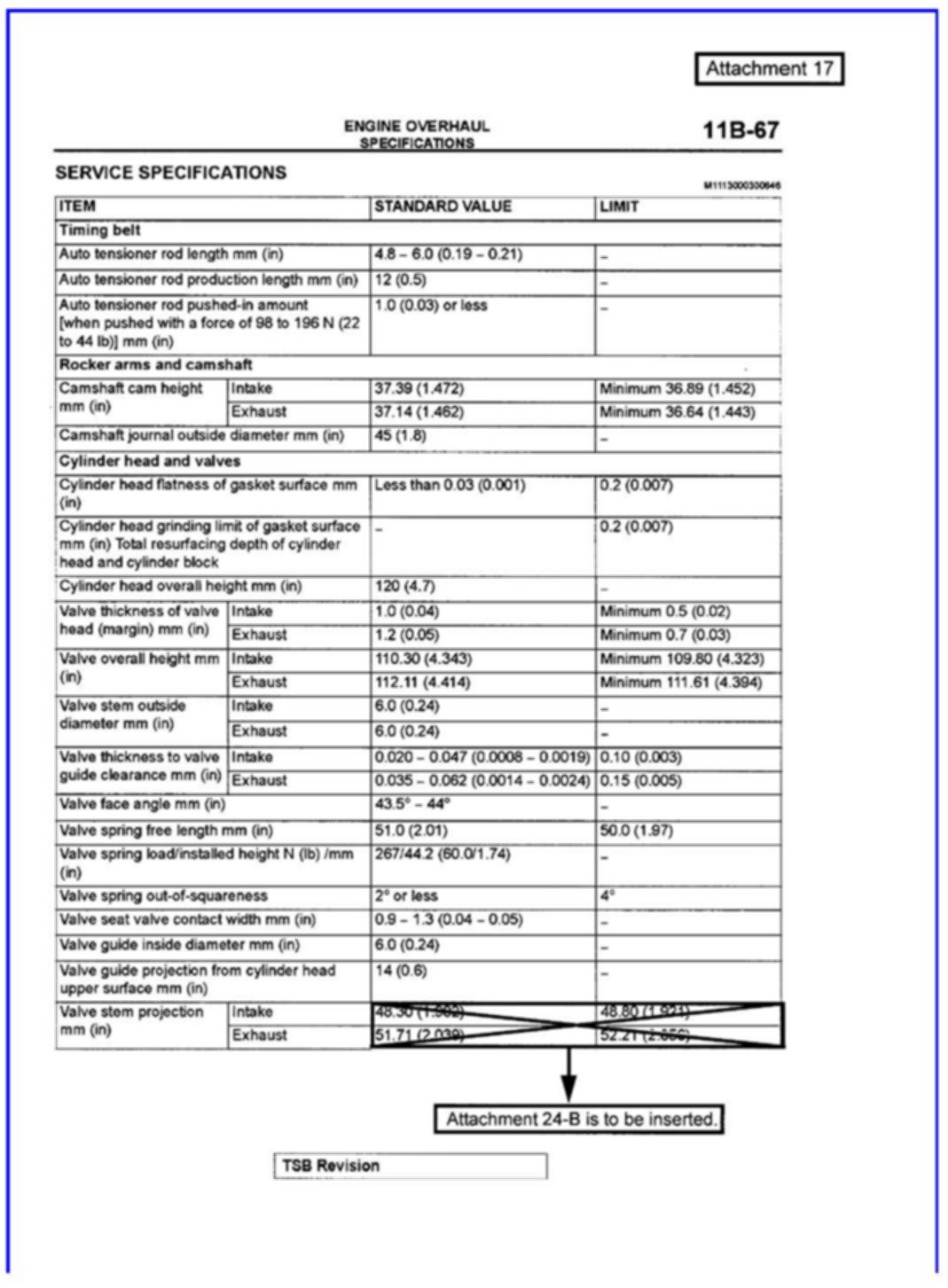

Attachment 17
Attachment 18
Attachment 19

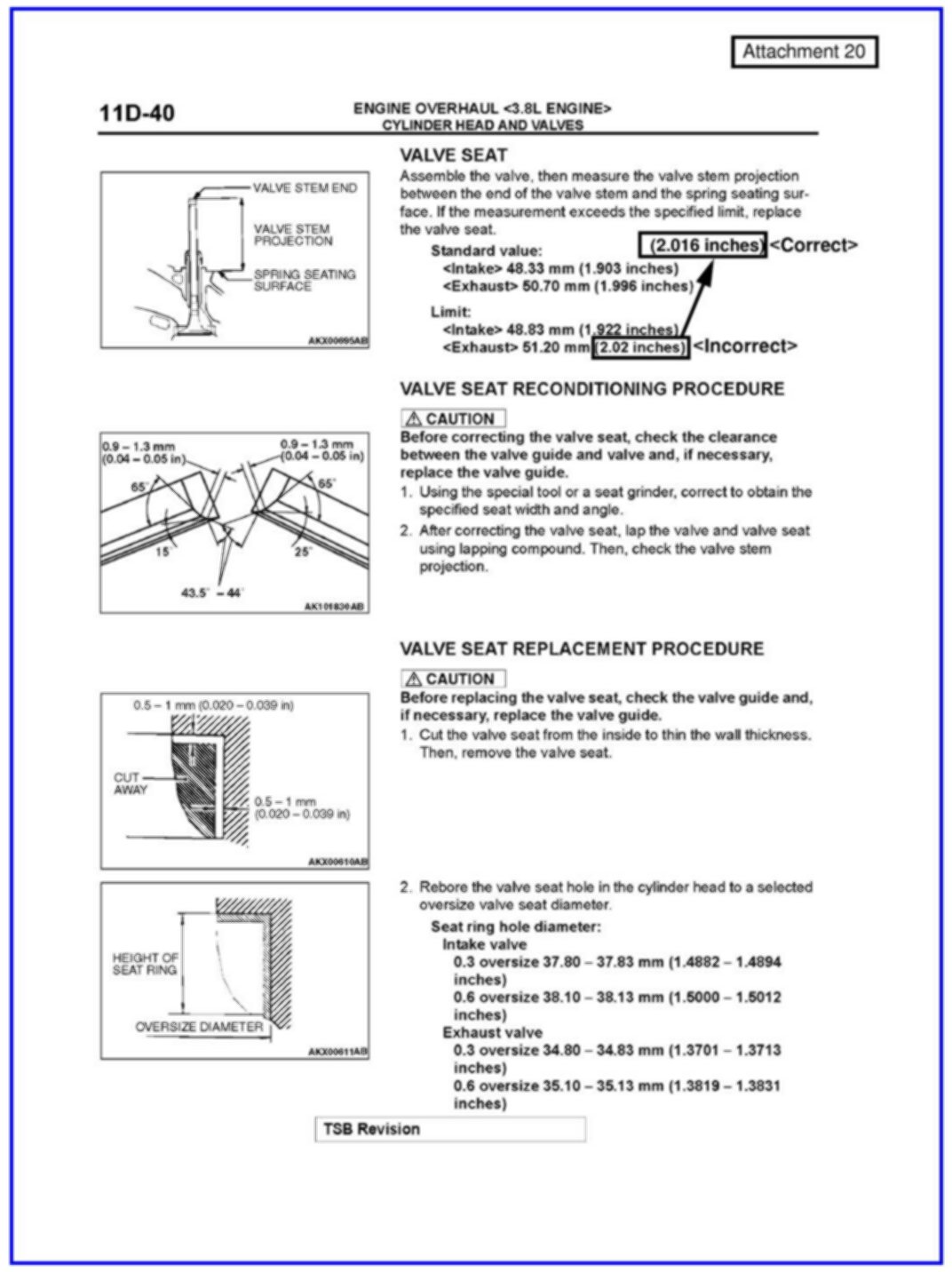

Attachment 20
Attachment 21
Attachment 22
Attachment 23
Attachment 24
