Automatic Transmission/Transaxle
>>
System Diagram
>>

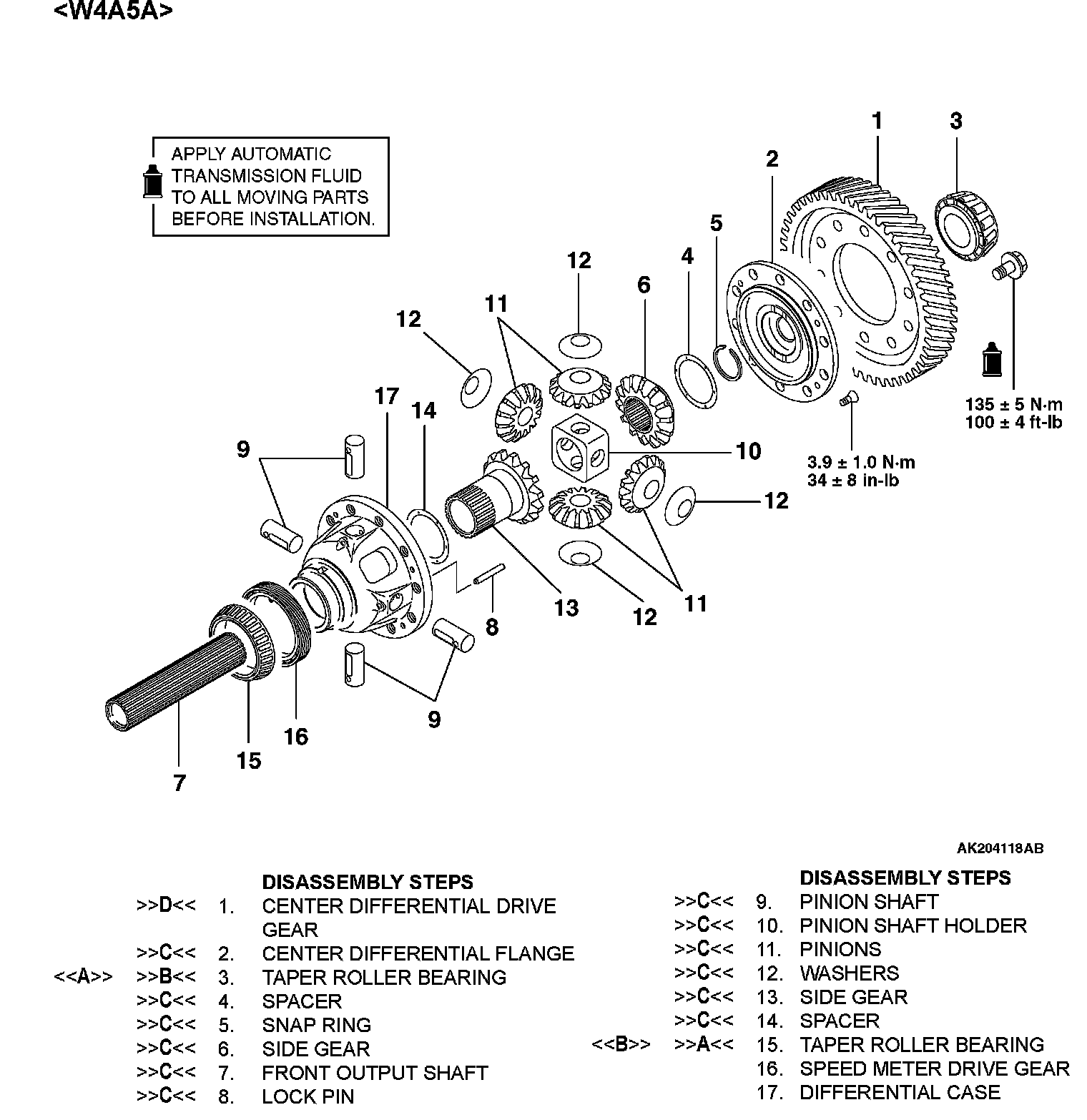

Center Differential
Center Differential
Disassembly Steps 1-17:
